DT-200-PCS65

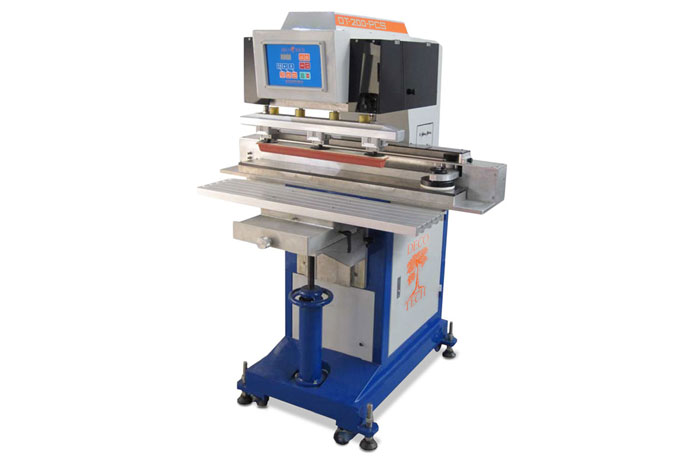

The DT-200-1C-PCS cup slide pad printing machine has been specifically designed to address the needs of the medical device manufacturing industry to pad print graduations or depth marks on catheter tubing. The closed ink cup travels sideways in a horizontal plane and during any stoppage the ink cup keeps cycling to keep the etched image wet and ready to print on the next cycle (activated via footswitch). The cliché length can be up to 1,000mm (39.37”) long yielding a maximum print length of approximately 800mm (31.5”). There are four sizes to choose from. This DECO TECH pad printing machine is backed with a one year warranty against defects in manufacturing.

Call us at (800) 300-DECO or use the quote request form for a detailed price quote.

  • Designed for medical catheters and other long parts
  • Available in 4 standard sizes (see specifications)
  • Omron PLC Controlled
  • Built with world class components including German Festo pneumatics
  • Easily accessible pad stroke adjustments
  • X/Y/R/Z work table
  • Equipped with heavy-duty Floor Stand with levelers
  • Smooth & quiet machine performance
  • Complies with CE safety standards
