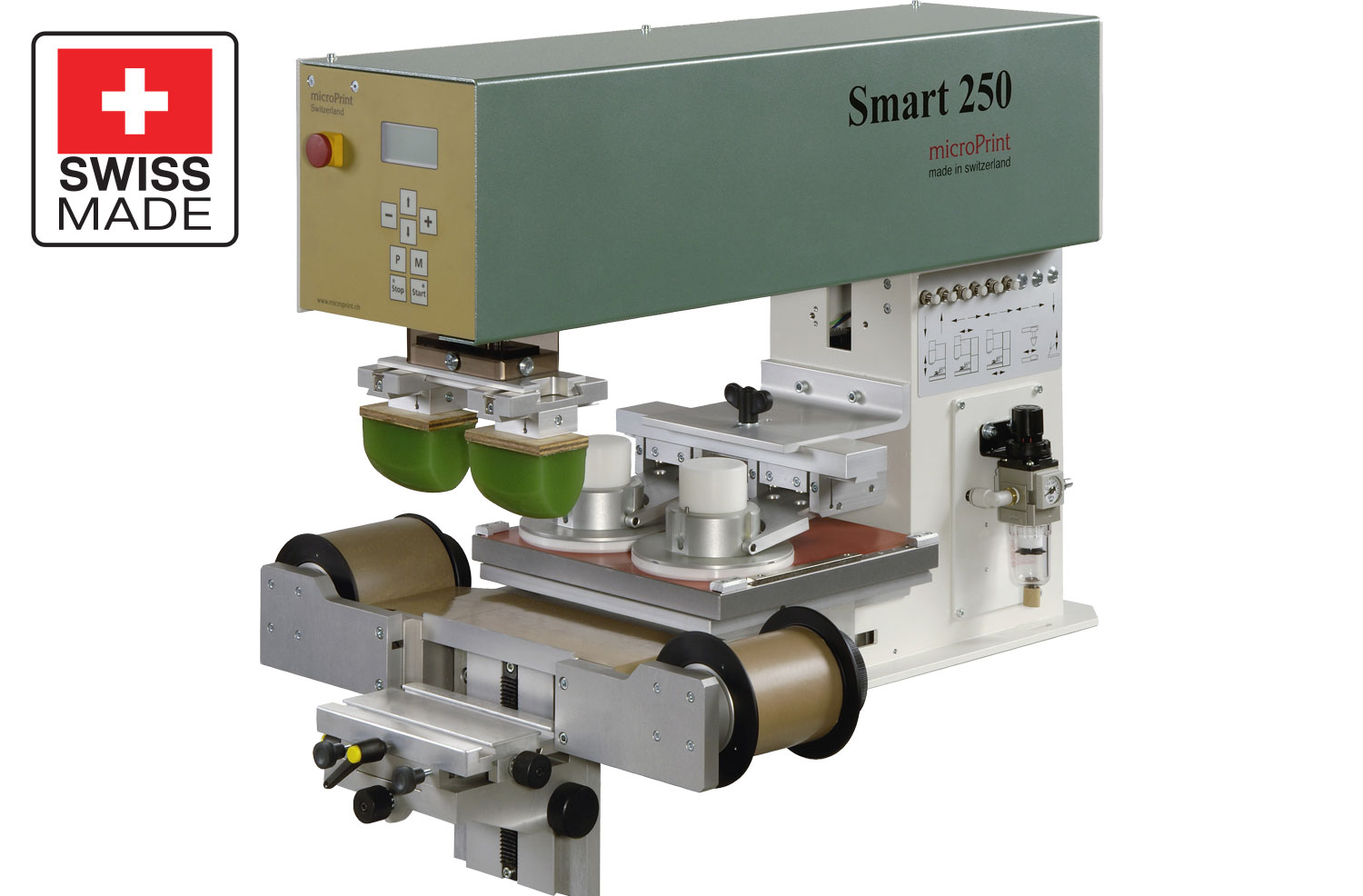

SMART-250
| Technical Data | SMART-250 |
|---|---|
| Printing Capacity: | up to 2,000 pph |
| Drive: | electro-pneumatic |
| Printing Force: | max. 73 Kg |
| Air supply | 5-6 bar (87 psi) |
| Air Consumption: | 2.0 L/cycle |
| Control system: | micro-processor |
| Power connection: | 110-240V 50-60 Hz. |
| Control voltage: | 24 VDC |
| Weight: | 50 Kg. (110 lbs.) |
| Plate size with ink cup: | 260 x 250mm max. |
| Plate size with inkwell: | 120 x 150mm max. |
| Plate Thickness: | 0.5 or 10mm |
| Ink cup sizes (diameter): 4 x 56mm (2.20") 3 x 70mm (2.75") 3 x 86mm (3.38") 2 x 120mm (4.72") |
Print sizes (diameter): 4 x 50mm (1.96") 3 x 60mm (2.36") 3 x 76mm (2.99") 2 x 110mm (4.33") |
