DT-UV200F
Compact UV Curing Conveyor for Flat ASI parts and molded parts.

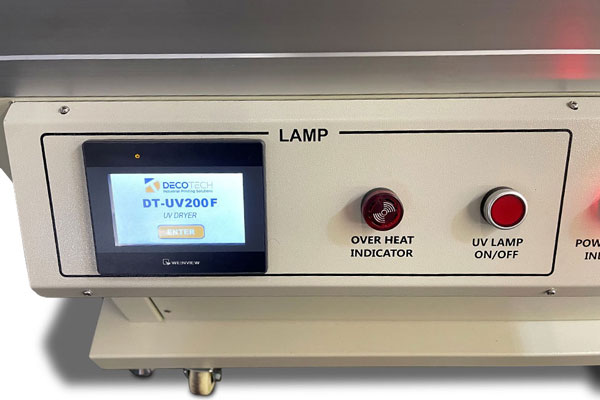

Our newly update for 2023 model DT-UV-200F was designed by Deco Tech to give our screen printing and pad printing customers a high quality and reliable UV curing unit that can cure flat products & sheets at a high rate of speed. This compact UV curing conveyor can cure UV inks on a variety of products such as medical devices, ASI goods, injection molded parts and other flat pad printed or screen printed objects. The DT-UV-200F (F = Flat) is controlled via PLC with a touch screen and you can adjust the UV lamp power and set it at 3KW, 4KW or 5KW power output. Furthermore, the speed of the conveyor can be fully controlled from 0 to 100 FPM (up to 3,000 parts per hour). The infeed side of the conveyor has adjustable doors to reduce the chance of light leaking into the working environment and on the outfeed side it is equipped with two sets of slit nylon drapes to allow the product to pass thru freely without letting any UV light leak out.
Specifications
| Technical Data: | DT-UV200F |
|---|---|
| Drive System: | Variable Speed Electric Motor |
| Flat product size: | 400mm Width x 200mm Height Max |
| Max. Production Speed: | Up to 3,000 pcs per hour |
| Voltage: | 380V 60 Hz, 1 Phase, 30 Amps (can be supplied with a transformer) |
| UV Lamp: | One lamp, 5 KW, PRIMARC brand |
| Conveyor Belt Length: | 2100 mm (82.7") |
| Machine Size: | 2,300 x 700 x 1,780mm (90.55” x 27.55” x 70”) |
| Crated Size: | 2,470 x 790 x 1,880mm (97.3” x 31.1” x 74”) |
| Net Weight: | 335 KG (737 LBS) |
| Gross Weight: | 435 KG (957 LBS) |
