ROKUPRINT SCREEN PRINTING MACHINES

RokuPrint

Precision German Screen Printing Solutions by Rokuprint – Distributed by Deco Tech

Deco Technology Group proudly offers the full range of Rokuprint screen printing machines—engineered in Germany for unmatched precision, speed, and reliability. Whether you're printing on flat, cylindrical, or irregularly shaped products, Rokuprint delivers industrial-grade performance for high-volume production environments.

From medical devices and automotive components to promotional products and electronics, Rokuprint systems are trusted worldwide for their advanced engineering, flexible configurations, and consistent print quality. As the exclusive North American distributor, Deco Tech provides sales, service, and technical support for Rokuprint equipment across the USA, Canada, and Mexico.

Discover how Rokuprint's servo-driven automation, tool-free adjustments, and modular designs can optimize your screen printing process.

Filter by category

Precision German built small-format universal screen printing machine for flat objects (300 x 200mm) and round objects (120 x 220mm).

Precision German built universal screen printing machine for flat objects (700 x 320mm) and round objects (300 x 320mm)

Precision German built flat-bed screen printing press for screen printing onto appliance panels and automotive exterior components up to 800 x 700mm.

Precision German built universal screen printing machine for flat objects (700 x 320mm) and round objects (300 x 320mm)

Precision German built small-format universal screen printing machine for flat objects (300 x 200mm) and round objects (120 x 220mm).

Precision German built flat-bed screen printing press for screen printing onto appliance panels and automotive exterior components up to 800 x 700mm.
RokuPrint / Real applications

Screen printing, configured for the part.

From large appliance panels to tapered drinkware, these are actual RokuPrint machine setups. Each application uses tooling suited to the part being printed.

01

RPX-700 Flatbed Screen Printing Applications

Flatbed screen printing

The RokuPrint RPX-700 flatbed screen printing machine can be equipped with different workholding systems for the product being printed. These installations show a manual slide table for washing machine front panels and a vacuum table for chocolate transfer sheets.

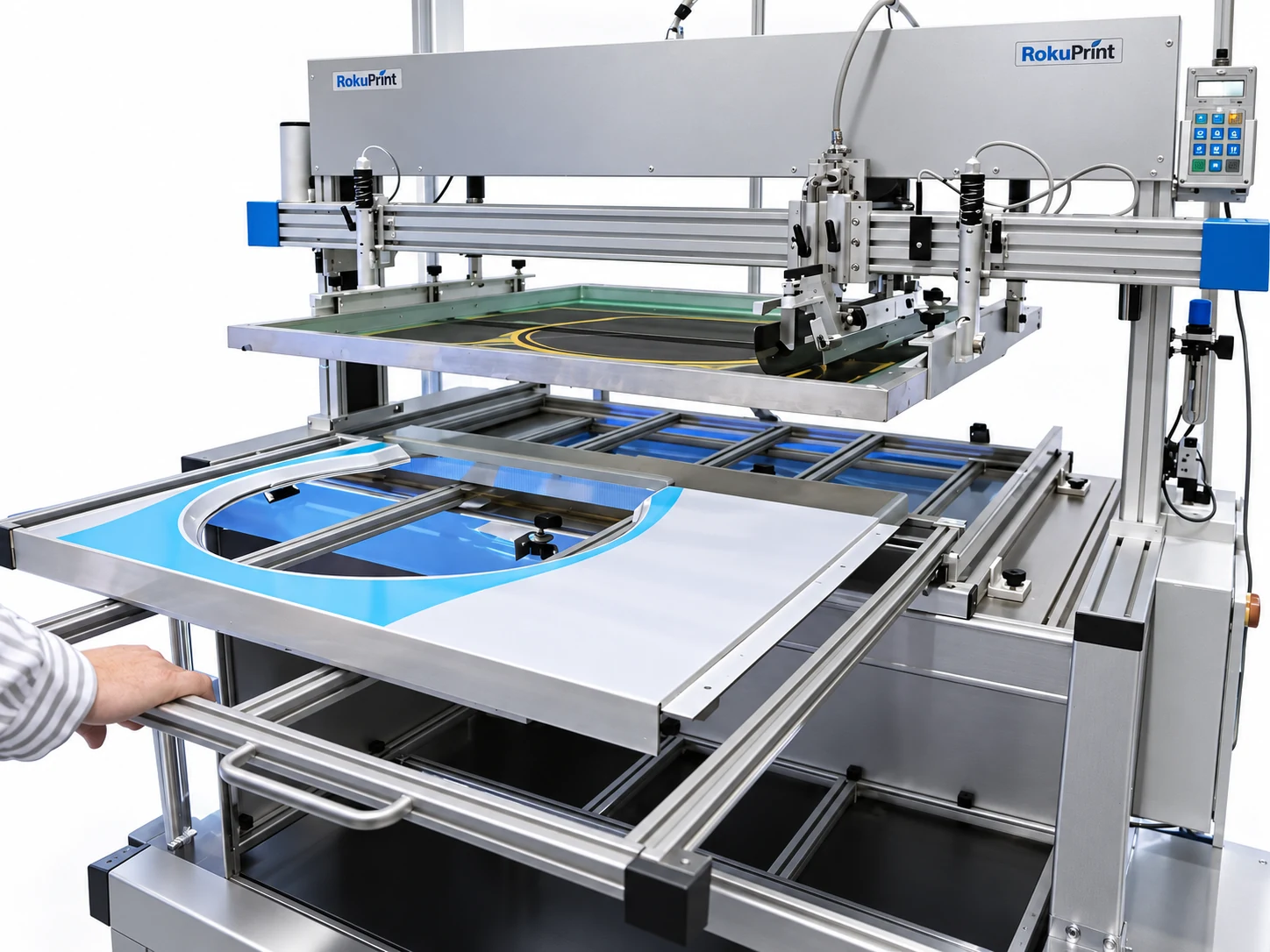

RokuPrint RPX-700 with tooling for screen printing industrial washing machine front bezels
RPX-700 / Application 01

Washing machine panels

This RPX-700 screen printing setup uses a manually operated slide table to locate washing machine front bezels. A sensor starts the print cycle once the panel is in position.

View application

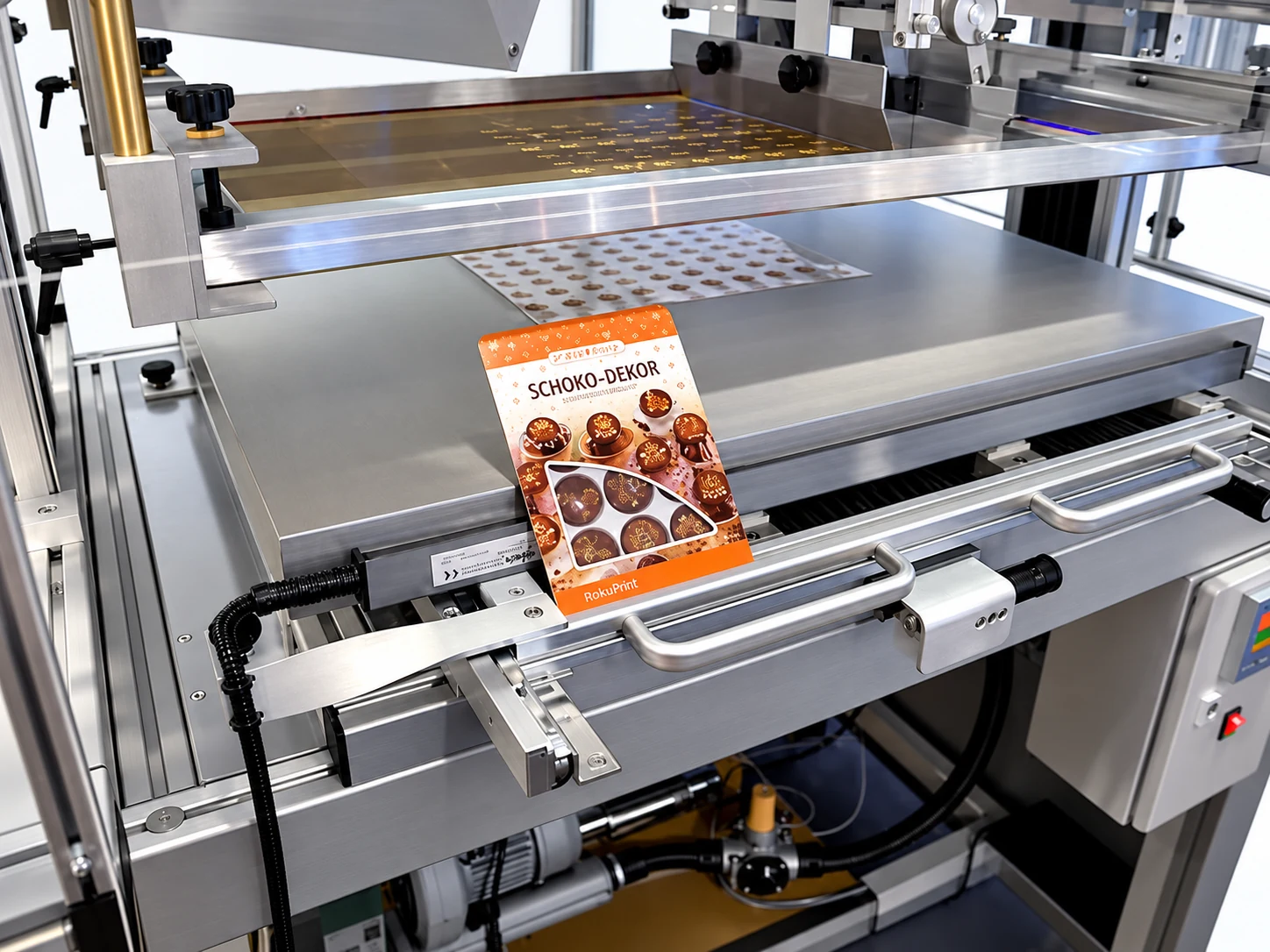

RokuPrint RPX-700 vacuum table for printing cocoa butter onto chocolate transfer sheets
RPX-700 / Application 02

Chocolate transfers

The RPX-700 uses a vacuum table to hold plastic chocolate transfer sheets in place. A heating system above the screen keeps the cocoa butter flowing during printing.

View application
02

RP 3.0 Screen Printing Applications

Part-specific tooling and fixtures

The RokuPrint RP 3.0 screen printing machine can be set up with part-specific fixtures, screens, and squeegee assemblies. These applications show printing on curved appliance panels, slightly tapered plastic tumblers, hockey sticks, and molded shopping baskets.

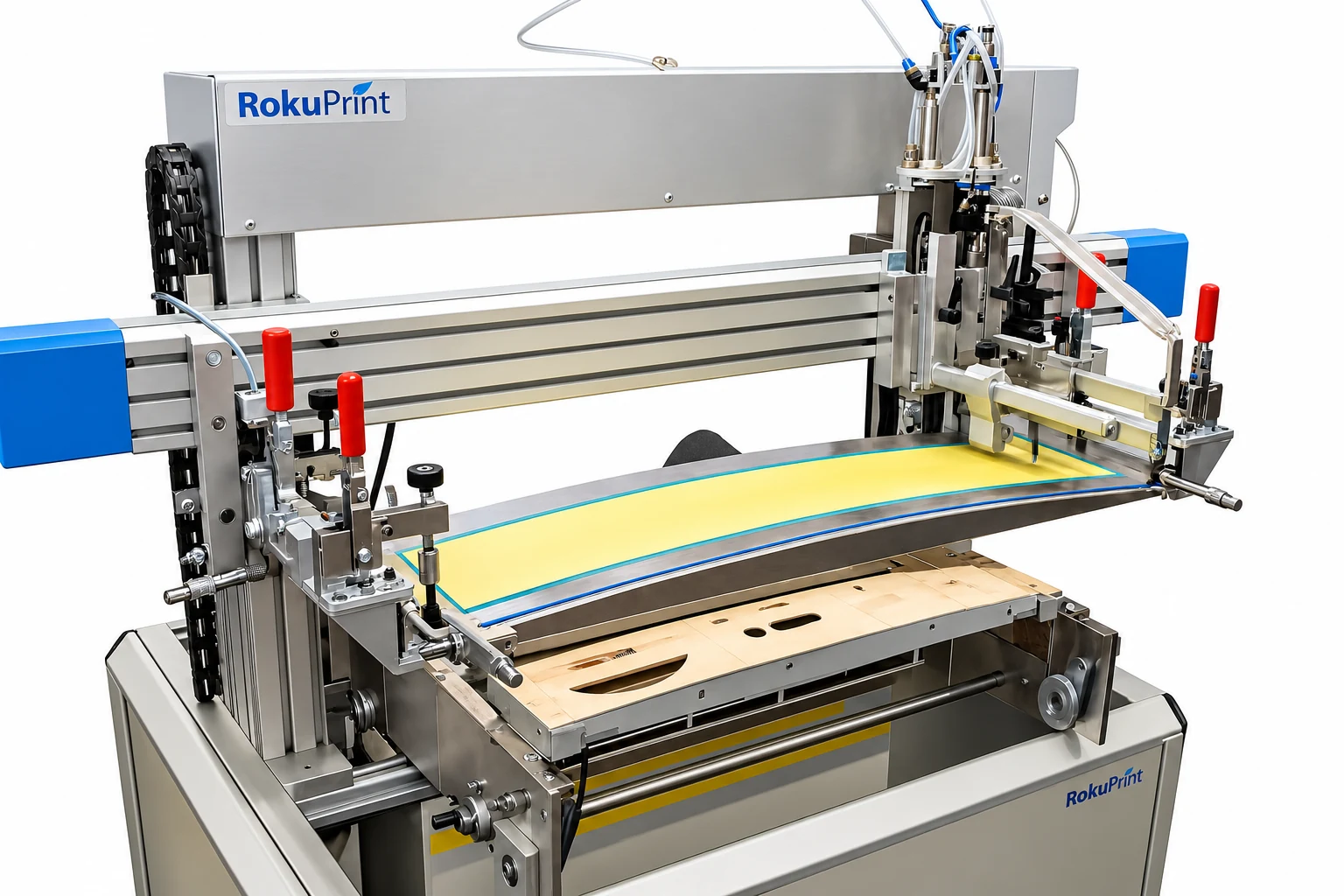

RokuPrint machine with curved screen and cam-actuated squeegee for dishwasher appliance panels

Dishwasher panels

The RP 3.0 uses a curved screen and cam-actuated squeegee and flood bar system to follow the profile of dishwasher panels.

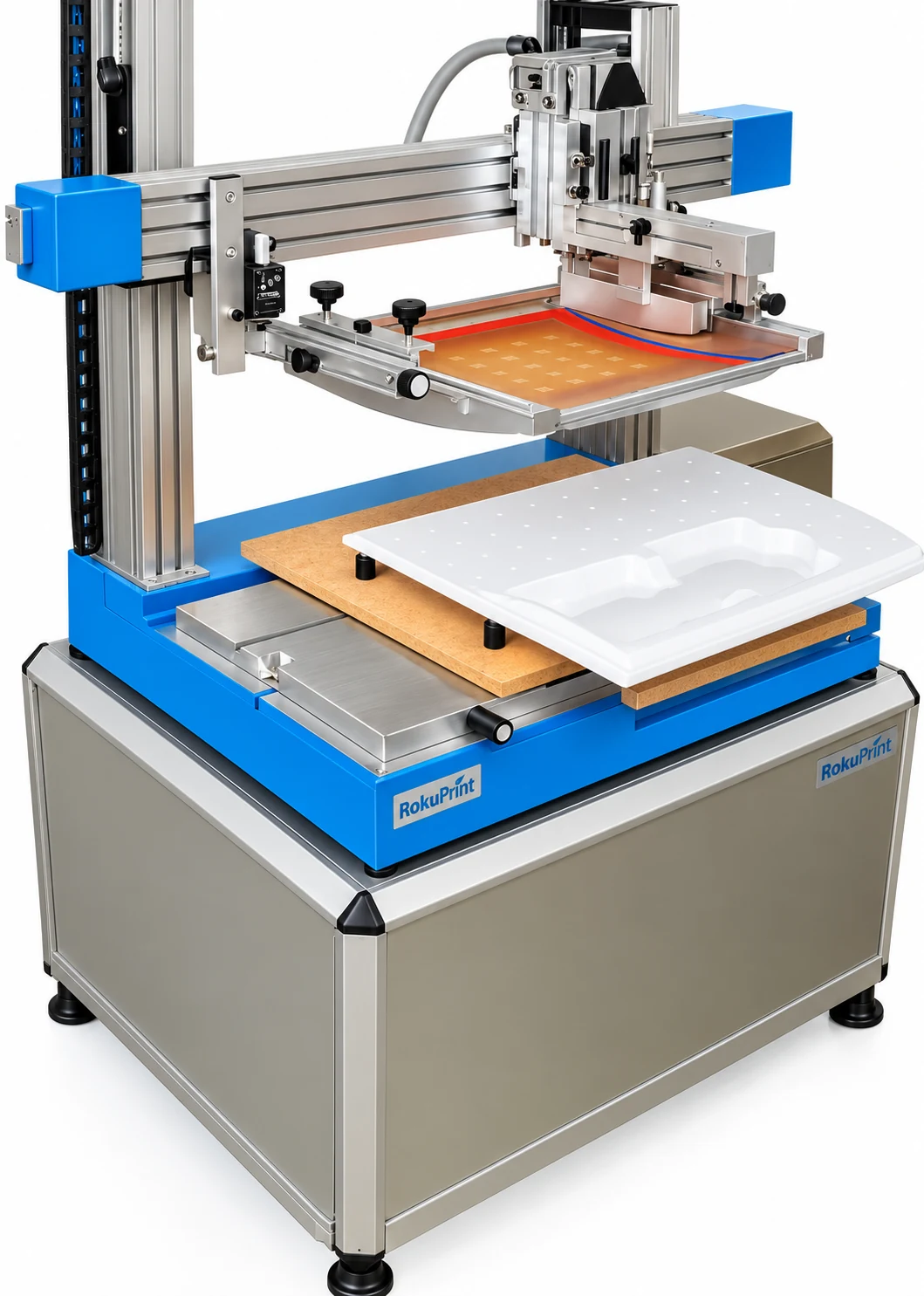

RokuPrint screen printing setup with curved screen and squeegee for a convex panel

Curved panels

A specially curved screen frame and matching squeegee allow the RP 3.0 to print onto large convex panels.
RokuPrint fixture for screen printing a slightly tapered plastic tumbler

Plastic tumblers

The RP 3.0 is fitted with application-specific tooling for screen printing slightly tapered plastic tumblers.

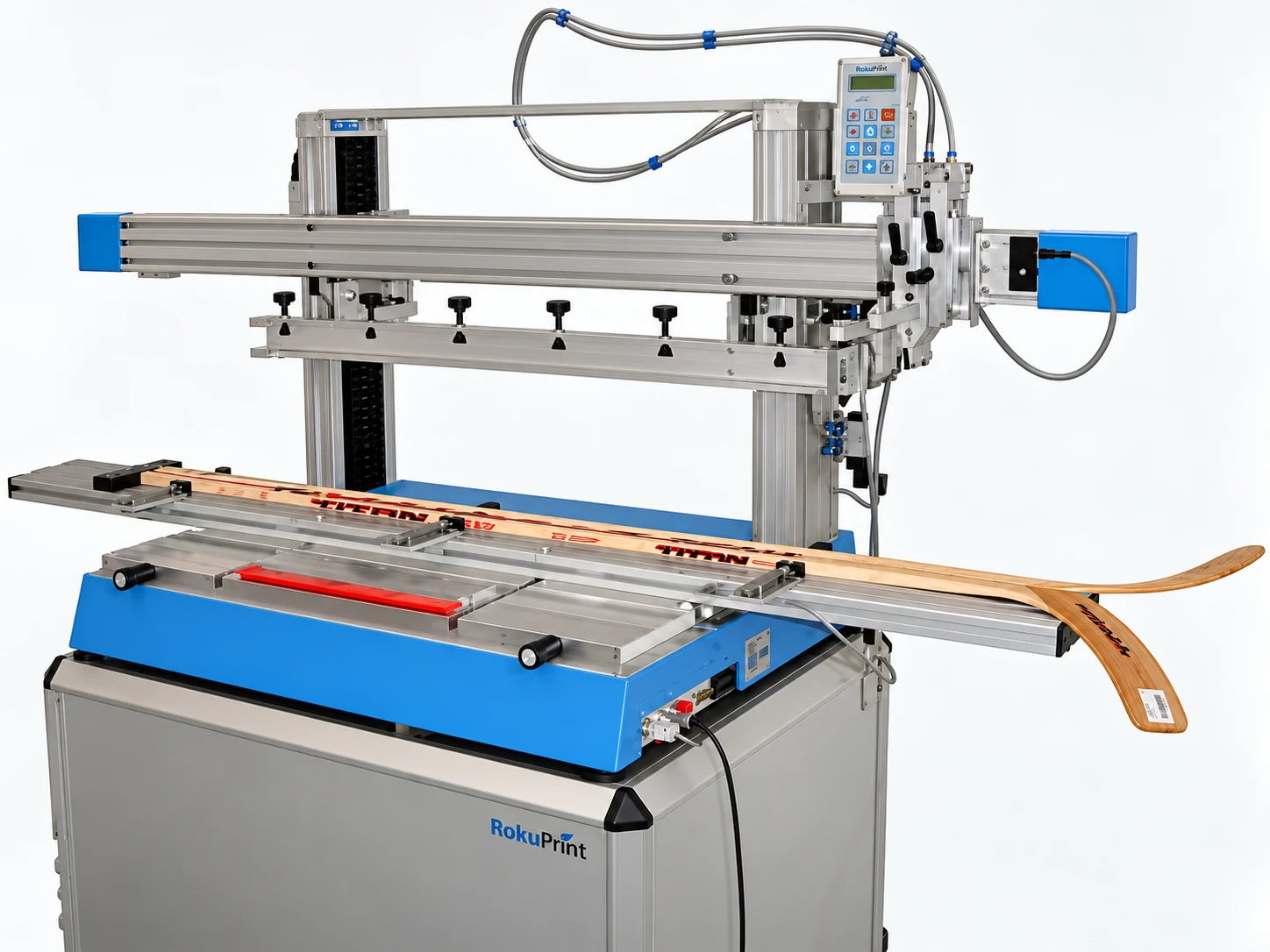

RokuPrint screen printing machine and fixture holding a hockey stick

Hockey sticks

An RP 3.0 screen printing press configured to print directly onto hockey sticks.

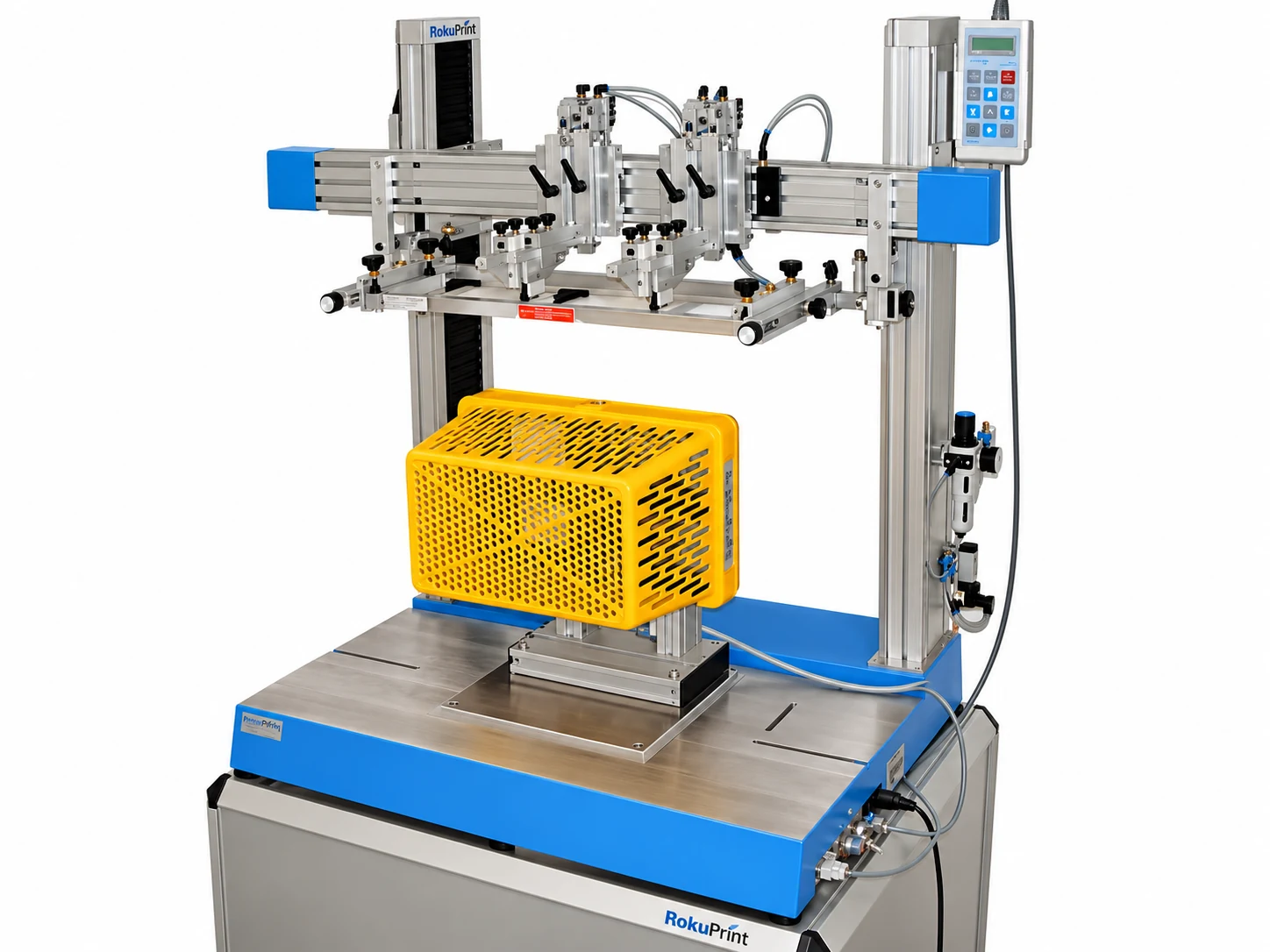

RokuPrint with elevated print head set up for screen printing a molded shopping basket

Shopping baskets

The extended-height RP 3.0 setup provides clearance for screen printing molded plastic shopping baskets.

RPX-700 SCREEN PRINTING APPLICATIONS

RokuPrint printing applications

This RPX-700 was tooled up for decorating industrial washing machine front bezels. The slide table was built as a manual operation and once the part is in location the machine cycles automatically via...

The RPX-700 is well suited for printing transfers to decorate chocolates and other confectionary items. The vacuum table is utilized to hold down the plastic sheets and there is a heating system (not ...

RP 3.0 SCREEN PRINTING APPLICATIONS

RokuPrint printing applications

RokuPrint RP 3.0 is tooled here for decorating plastic tumblers that are slightly tapered.

This RP 3.0 screen printing press is setup to screen print onto hockey sticks

This RP 3.0 is equipped with a special curved screen and special squeegee and flood bar system that is cam actuated and allows the squeegee to follow the curved profile of these dishwashing machine pa...

RokuPrint RP 3.0 is shown here with special curved squeegee and screen frame to print a large curved panel.

This RP 3.0 machine is shown with extended height for screen printing onto plastic shopping baskets.
