DT-200-4C-OT

Four color large image pad printing machine with oval race track.

Machine Type: Semi-Automatic Pad Printing
Machine Brand: Deco-Tech
Origin: Built in China with World-Class Components

The DT-200-4C-OT is a high-performance 4-color pad printing system featuring a servo-driven 14-station oval track indexer designed for speed, stability, and repeatable multi-color registration. Each of the four print stations includes mechanical locking cams to ensure precise part positioning—ideal for printing small parts with tight tolerances.

This oval track configuration makes the DT-200-4C-OT a popular choice for decorating skateboard wheels, lighters, mint tins, ice scrapers, and other small promotional or ASI items. Its compact footprint and fully automated indexing system make it an efficient, high-throughput solution for 1 to 4-color applications.

Updated Electronics and Controls
The latest model now features a Mitsubishi PLC paired with a responsive Weinview touchscreen interface, offering intuitive navigation, fast setup, and complete control over print parameters. Numerical calibration dials for pad stroke adjustment are located on the right side of the machine for quick and easy access.

Built for Stability and Repeatability

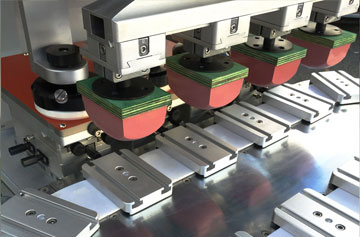

Constructed on a welded steel frame, the machine includes adjustable floor levelers and a height-adjustable T-slot worktable to accommodate different part sizes and fixtures. Four 90mm sealed ink cups and four 100 × 300mm individually adjustable cliché holders (X/Y/R) ensure precise image placement across all four color stations.

Compatible with Multiple Plate Types
The DT-200-4C-OT supports:

• Photopolymer plates
• Thin steel plates (0.5 mm)
• Thick steel plates (10 mm)
• Laser-etched clichés

Full Support from Deco Tech
Every DT Series machine is backed by a one-year warranty against manufacturing defects and supported by Deco Tech’s complete range of pad printing consumables, custom tooling, technical support, and hands-on training.

Download the Brochure

• Mitsubishi PLC with Weinview Touchscreen Interface
  User-friendly control system provides full command of machine functions with intuitive screen navigation and programmable settings.
• 14-Station Servo-Driven Oval Indexer
  High-speed servo indexing ensures accurate and repeatable part positioning across all four color stations—ideal for high-output production.
• Cam-Lock Stabilization at Each Print Station
  Each of the four print heads features mechanical cam locking for precise part stability during printing, enhancing multi-color registration accuracy.
• Outfitted with Premium Festo Pneumatics
  Built with high-quality pneumatic components to ensure smooth operation and long service life.
• Quick-Access Pad Stroke Adjustments
  Easily fine-tune pad-to-plate and pad-to-part stroke lengths using numerically calibrated dials—positioned for fast setup changes.
• Multi-Axis Worktable (X/Y/R/Z)
  The height-adjustable table includes full X, Y, rotation (R), and vertical (Z) movement for versatile and accurate part alignment.
• 4 Independent Cliché Holders with X/Y/R Adjustment
  Each print station includes its own fully adjustable cliché holder to streamline on-press alignment and reduce setup time.
• Quiet, Stable, and Low-Vibration Operation
  Engineered for smooth performance, ideal for extended production cycles with minimal operator fatigue or disruption.
• Compliant with OSHA Safety Standards
  Fully enclosed and guarded for operator protection, meeting modern workplace safety requirements.

The DT-200-4C-OT delivers high-speed, multi-color performance with servo-driven accuracy and rock-solid stability. Whether you're printing promotional goods or technical components, this system offers unmatched efficiency and alignment across all four colors.
