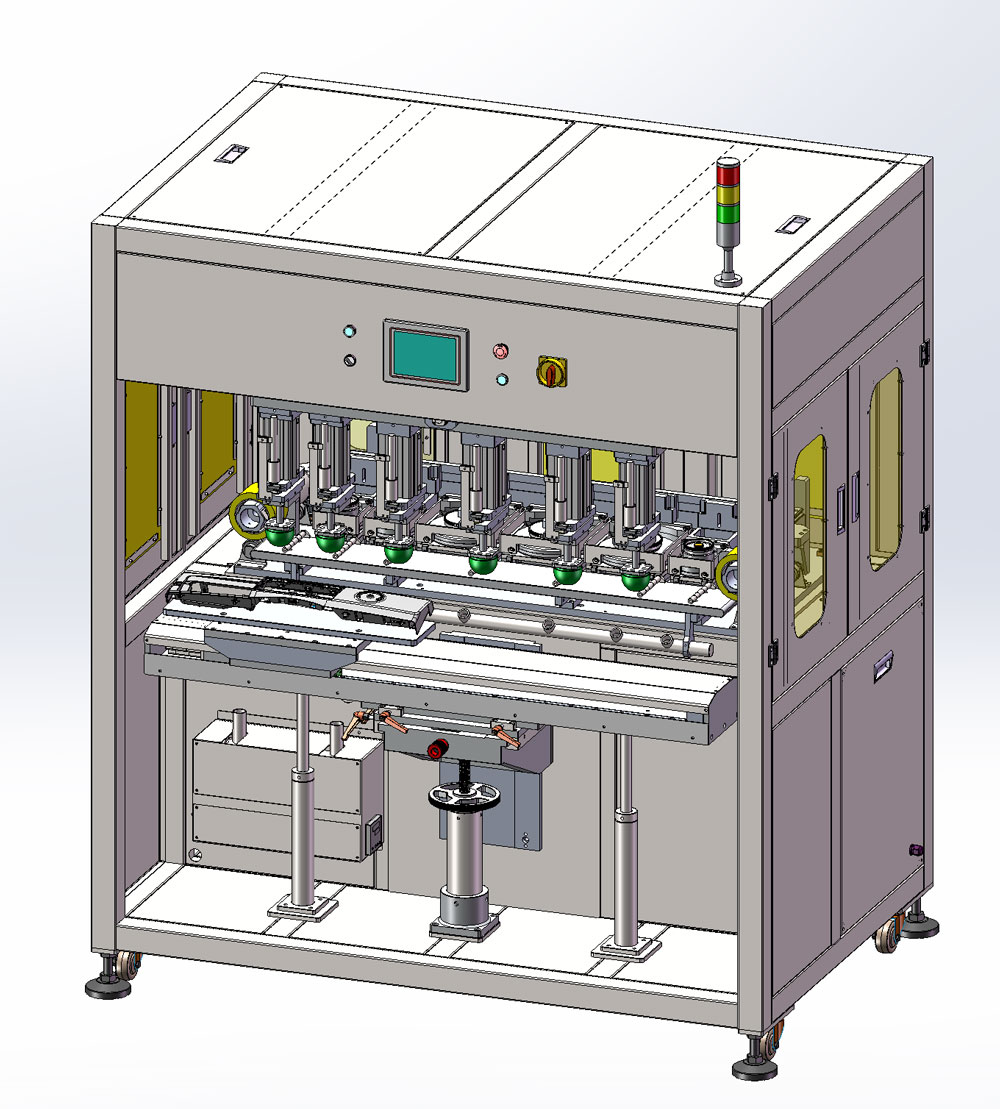

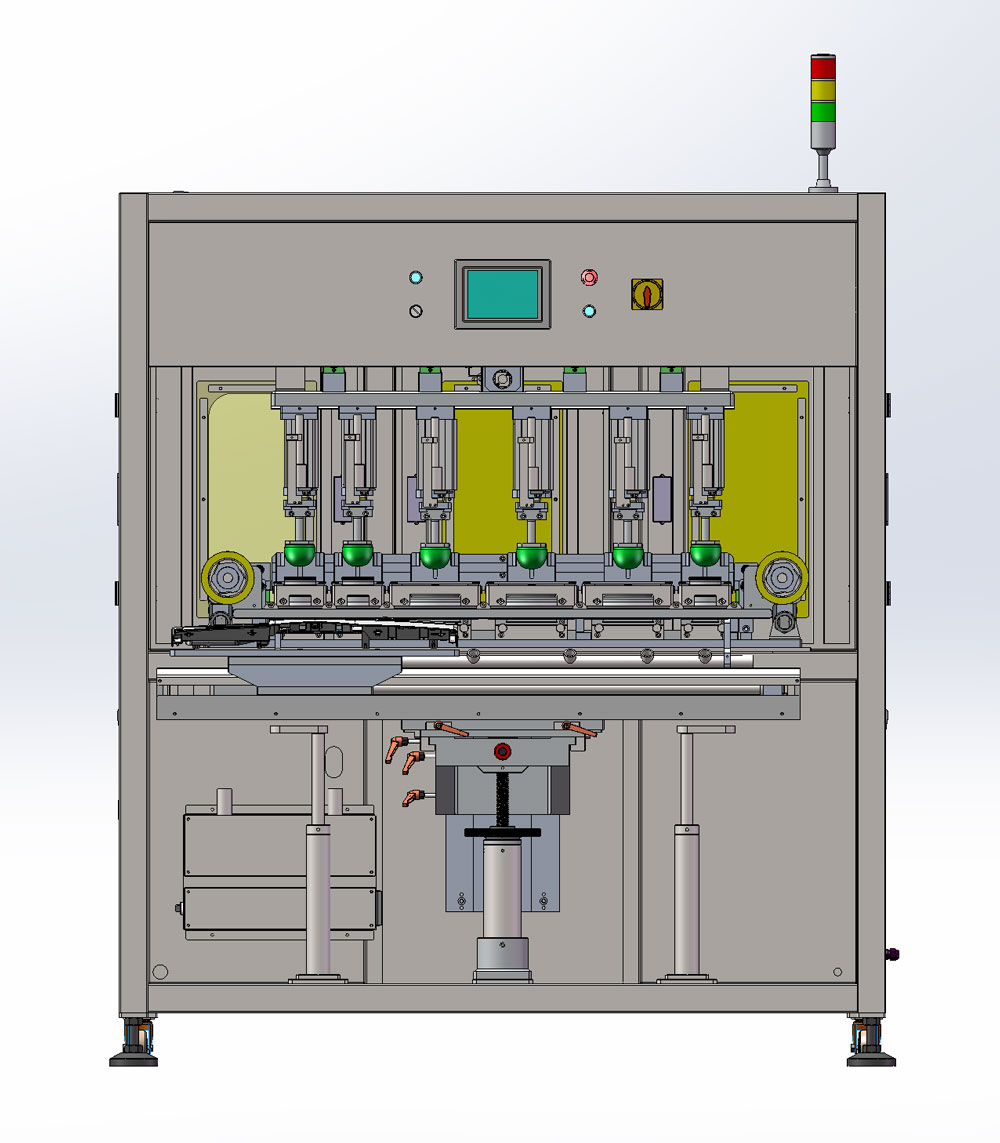

Deco Tech Servo Linear Shuttle Pad Printing Machine 4 To 6 Colors
Servo driven Pad Printing Machine with 4, 5 or 6 colors with servo linear part shuttle.
Our SERVO SHUTTLE is a 4 to 6 color servo driven part shuttle pad printing machine and the SERVO SHUTTLE print head is servo driven in the horizontal and vertical axis’ and this machine is also equipped with automatic pad cleaning device. The SERVO SHUTTLE is controlled via a Mitsubishi PLC with a Weinview touchscreen, and all job settings are easily programmed from the touchscreen interface. You can program the pad strokes for both the length to the cliche and to the part being printed and each pad can be individually stroked with a pneumatic pad extender to avoid contact with larger parts. The SERVO SHUTTLE pad printing machine comes with a solid built welded steel machine base with adjustable floor levelers and a height adjustable worktable. The SERVO SHUTTLE is equipped with 90mm ink cups and individual X/Y/R adjustable cliché holders for precise alignment of multi-color artworks. The clichés can be photo polymer, thin steel or laser etched varieties and Deco Tech provides a full array of pad printing consumable supplies, technical support & product training for our DECO TECH SERIES of pad printing machinery. This DECO TECH pad printing machine is backed with a one year warranty against defects in manufacturing. Call the experts at (714) 639-DECO to find out more.
Advantages
- Mitsubishi PLC controlled with Weinview touch screen
- Programmable servo indexed part shuttle 1 to 6 colors
- Servo Driven print head – fully programmable
- Automatic Pad Cleaning
- Individual and Programmable pad stroke extenders
- Programmable pad stroke adjustments
- X/Y/R/Z worktable
- X/Y/R adjustable cliché holders
- Smooth & fast Servo driven machine performance
- Fully guarded to OSHA & CE standards
Specifications
Technical Data | DT-SERVO SHUTTLE-4C | DT-SERVO SHUTTLE-5C | DT-SERVO SHUTTLE 6C |
---|---|---|---|
Ink System: | Closed ink cup | Closed ink cup | Closed ink cup |
Plate size: | 100 x 250mm or 100 x 300mm | 100 x 250mm or 100 x 300mm | 100 x 250mm or 100 x 300mm |
Ink Cup Size: | 4 x 90mm ⌀ (80mm ⌀ print) | 5 x 90mm ⌀ (80mm ⌀ print) | 6 x 90mm ⌀ (80mm ⌀ print) |
Print capacity: | 150-200 parts per hour | 150-200 parts per hour | 150-200 parts per hour |
Front & Back stroke | Servo Driven | Servo Driven | Servo Driven |
Part Shuttle: | Servo Driven | Servo Driven | Servo Driven |
Pad Vertical Stroke: | 4 x Independent Pneumatic | 5 x Independent Pneumatic | 6 x Independent Pneumatic |
Air Requirement: | 5-6 bar | 5-6 bar | 5-6 bar |
Control System: | PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen |
Voltage: | 110V/220V/230V 50/60Hz | 110V/220V/230V 50/60Hz | 110V/220V/230V 50/60Hz |
Dimensions: | 1050 x 1200 x 1750mm | 1050 x 1200 x 1750mm | 1050 x 1200 x 1750mm |
