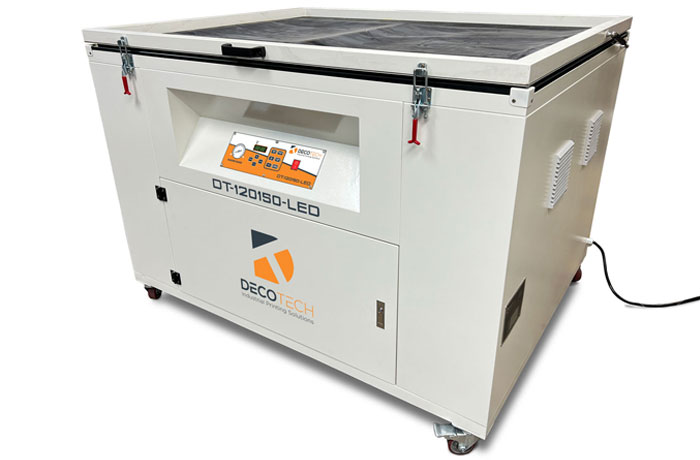

DT-120150-LED Exposure Unit for Screen Printing

LED Screen Frame Exposure Unit for exposing the emulsion on screens.

Machine Type: LED Screen Frame Exposure Unit
Manufacturer: Deco Tech
Origin: Built in China with World-Class Components

Efficient. Powerful. Ozone-Free.

Introducing the all-new DT-120150-LED Exposure Unit from Deco Tech — a 2023 model designed to reduce energy costs, eliminate ozone pollution, and deliver exceptional screen exposure performance for screen printing pre-press workflows.

Unlike traditional mercury vapor exposure units that require high-voltage wiring and consume large amounts of power, the DT-120150-LED runs on standard 110V or 220V power and draws just 4.36 amps at 110V — offering a major advantage in start-up cost savings, energy efficiency, and workplace safety.

Key Features:

  • Low Power Consumption: Operates on 110V or 220V, drawing only 4.36A at 110V

  • Powerful UV LED Array: 480 watts of precise UV spectrum light for consistent and uniform exposure

  • Instant Full Power: No warm-up time — full spectral output immediately upon activation

  • Ozone-Free Operation: Clean energy without harmful emissions

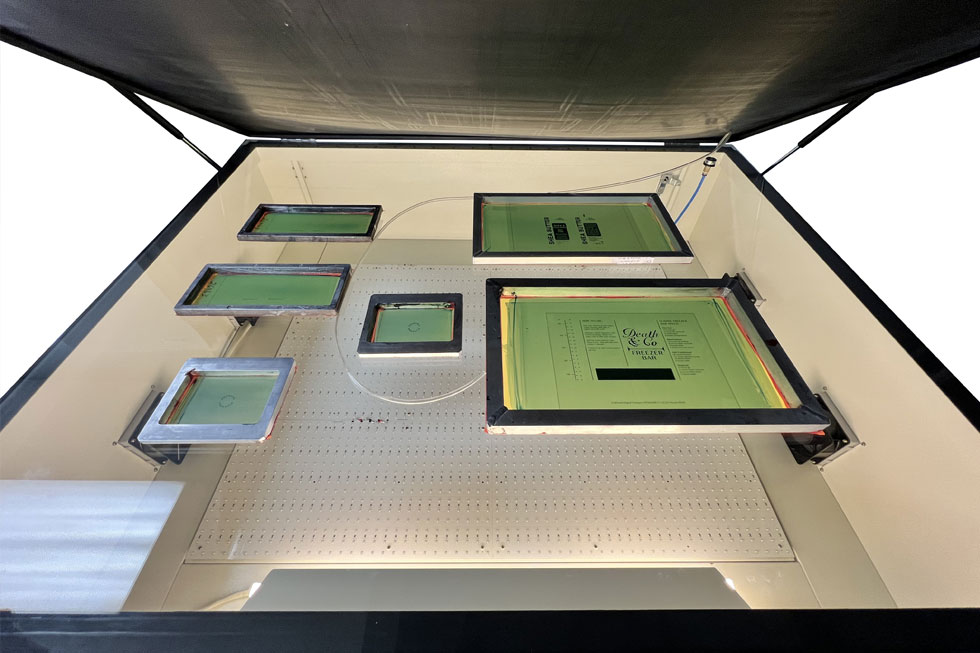

  • Precision Exposure: Digital timer and high-performance vacuum pump ensure tight contact between film and screen for sharp results

  • Large Exposure Area: Ideal for medium to large format screen printing frames

Whether you're upgrading an outdated unit or setting up a new screen department, the DT-120150-LED offers a reliable, energy-efficient solution that meets modern shop requirements.

We don’t just sell the unit — we also provide turn-key screen pre-press solutions, including training for your staff and ongoing support. At Deco Tech, we manufacture and ship hundreds of screens weekly to customers across North America.

📞 Contact our team of experts at (714) 639-DECO to learn more about how this unit can improve your production workflow.

SPECIFICATIONS

Technical Data DT-120150-LED
Control system: Microprocessor
Max. frame size: 1000 x 1300 mm
Glass size: 1195 x 1495 mm
Glass thickness: 10 mm
UV power: LED UV light, 480W
Vacuum degree: -600mmHg
Voltage: 220-110V 50/60Hz 1Phase
Dimensions: L1200 x W1500 x H1050 mm
Net Weight: 160 kg
