DT-1220 & DT-1320 SERVOREX Large-Format Servo Screen Printing Machines
The DT-1220 and DT-1320 SERVOREX are four-post, servo-driven flatbed screen printing machines engineered for large industrial sheets and panels. The DT-1220 provides a maximum print area of 1200 × 2000 mm (47.25 × 78.75 in.), while the larger DT-1320 expands production capacity to 1320 × 3050 mm (51.96 × 120 in.). Both models combine a servo-indexed slide table, high-powered vacuum worktable and vertically lifting screen frame for controlled, repeatable production.

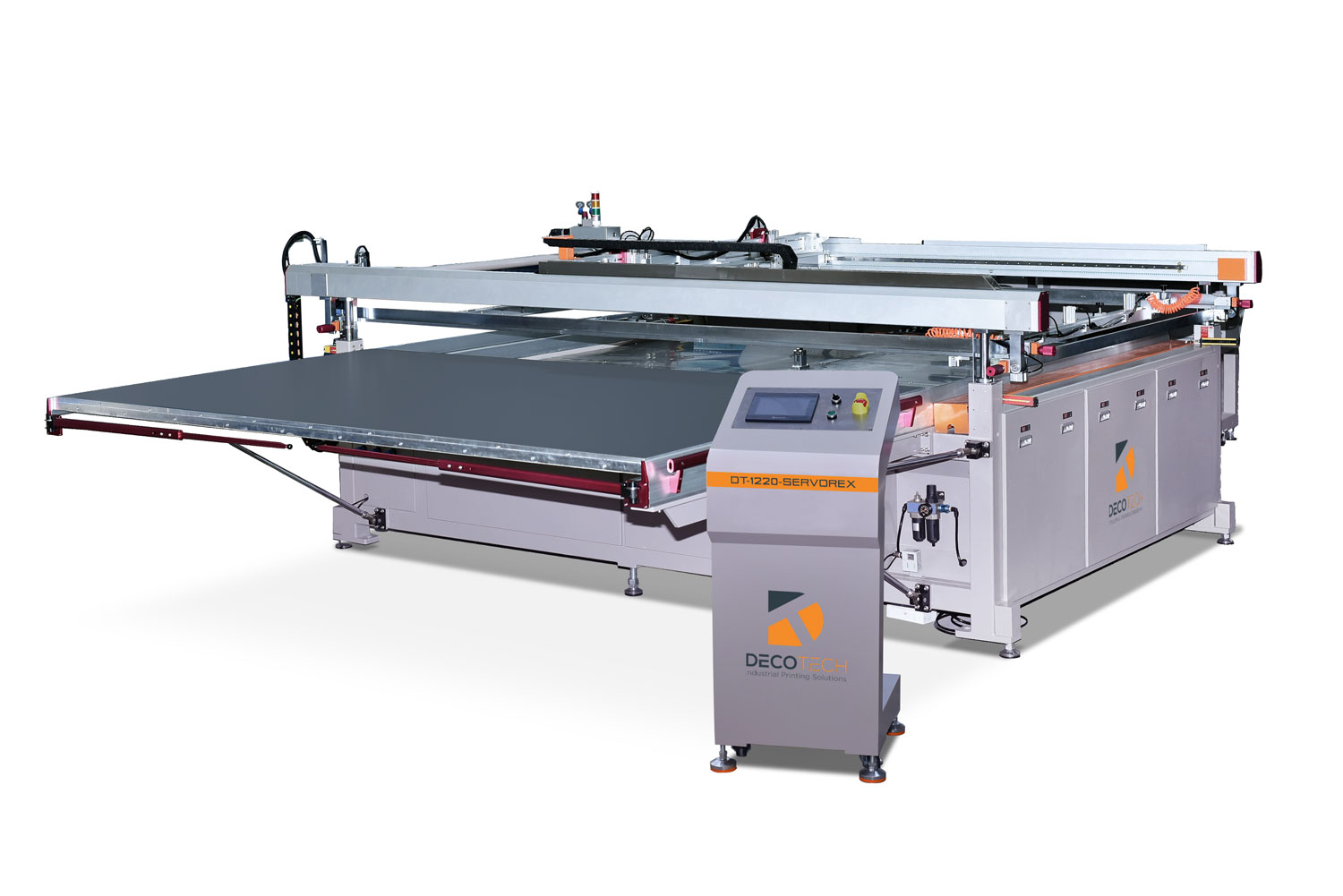

Click image to view full size
Two Large-Format Sizes for Industrial Flatbed Screen Printing
The SERVOREX platform gives manufacturers two machine sizes built around the same large-format printing architecture. Choose the DT-1220 for applications up to 1200 × 2000 mm, or move to the DT-1320 when the job requires print areas up to 1320 × 3050 mm. Both are designed for controlled printing on large flat substrates without sacrificing operator access, vacuum hold-down or repeatability.
Four-Post Vertical Screen Lift
The screen frame moves straight up and down on a synchronized four-post system, maintaining parallel alignment while helping keep ink within the active print zone.
Servo-Indexed Slide Table
The worktable travels forward and rearward on linear guide rails for precise positioning while giving the operator open access to load, unload and inspect the printed substrate.
High-Powered Vacuum Worktable
A precision-machined aluminum vacuum table uses a dense hole pattern to hold sheet material securely during the print cycle and reduce movement beneath the screen.
Servo Print Stroke & Digital Control
Servo-driven horizontal movement, Mitsubishi PLC control and touchscreen job parameters provide a practical platform for repeatable production setups.
Choose the SERVOREX Around Your Largest Production Part

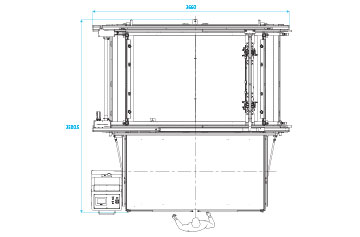

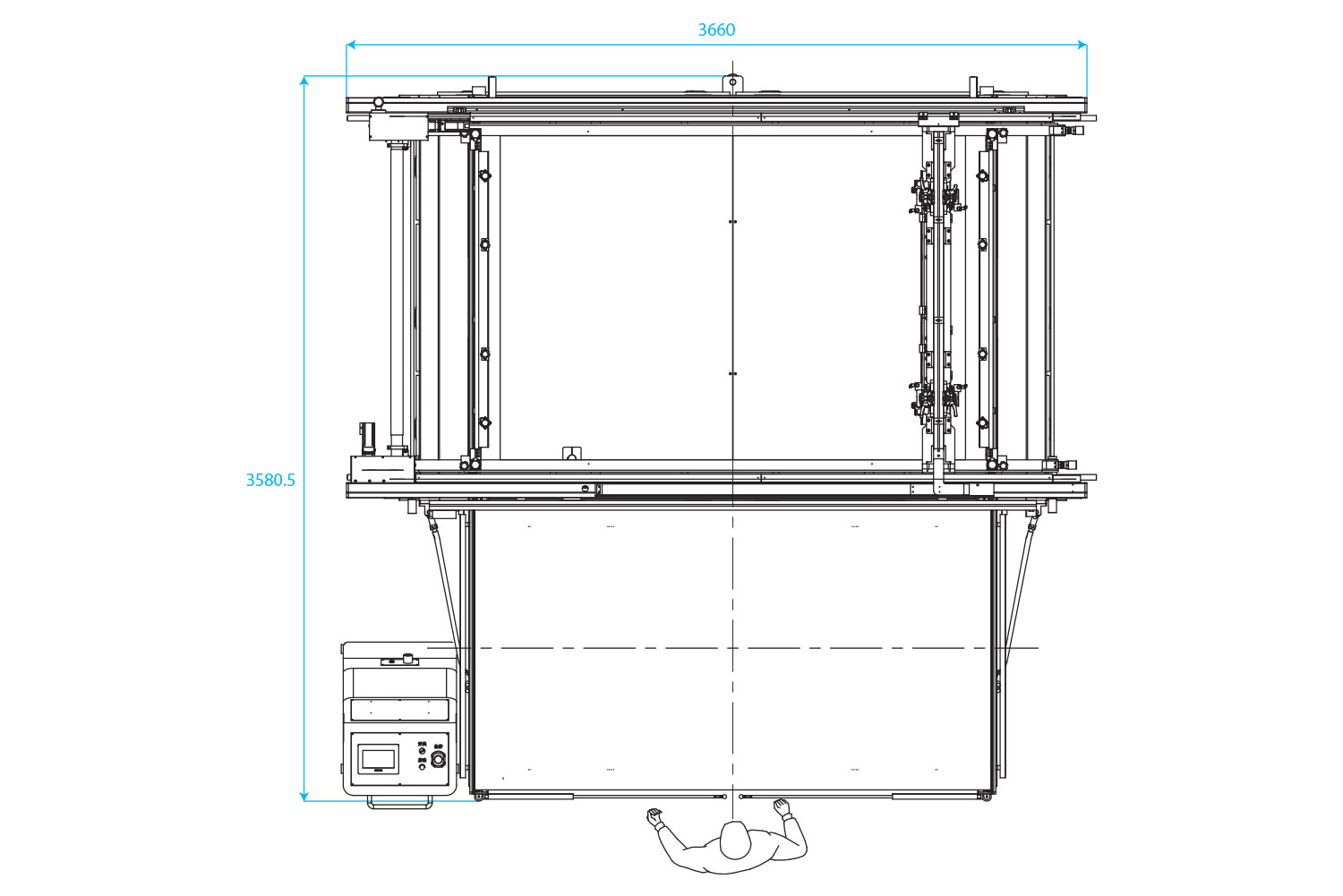

The DT-1220 supports a maximum print area of 1200 × 2000 mm (47.25 × 78.75 in.) on a 1400 × 2450 mm (55.1 × 96.5 in.) vacuum worktable. The larger DT-1320 supports up to 1320 × 3050 mm (51.96 × 120 in.) on a 1500 × 3500 mm (59.0 × 137.79 in.) worktable. Deco Tech can review your sheet size, print location, screen frame and handling requirements before the final machine is selected.
- DT-1220: 1200 × 2000 mm print area
- DT-1320: 1320 × 3050 mm print area
- Up to 20 mm substrate thickness
- ≤0.05 mm reprint accuracy
Built for Large Flat Industrial Substrates
The DT-1220 and DT-1320 SERVOREX are intended for large-format industrial screen printing where sheet stability, controlled registration and access to the printed panel are important. The larger DT-1320 extends the same platform to substantially longer sheets and panels.
Built Around Registration, Screen Control & Operator Access
Screen Frame System
- Four-post synchronized vertical movement
- Adjustable left/right frame-arm height
- X/Y/R micro-adjustable screen positioning
- Pneumatic screen-frame clamping
- Servo-controlled progressive screen lift
Print & Flood Mechanism
- Servo-driven horizontal print stroke
- Linear-guide carriage movement
- Pneumatic squeegee and flood-bar actuation
- Depth, angle and tilt adjustment
- Micrometer fine adjustment
Controls & Safety
- 7-inch HMI touchscreen
- Mitsubishi PLC control
- Stored print-stroke and thickness parameters
- Automatic air-pressure monitoring
- Safety circuit with HMI fault indication
DT-1220 & DT-1320 SERVOREX Comparison
Both SERVOREX models share the same servo-driven print concept, four-post vertical screen lift and Mitsubishi control platform. The major differences are print capacity, worktable size, screen-frame capacity, machine footprint and rated production speed.
| Technical Data | DT-1220 SERVOREX | DT-1320 SERVOREX |
|---|---|---|
| Printing Capacity | Up to 150 cycles/hr | Up to 100 cycles/hr |
| Drive | Servo Motor | Servo Motor |
| Control System | Mitsubishi PLC + Touchscreen | Mitsubishi PLC + Touchscreen |
| Maximum Print Area (L × W) | 1200 × 2000 mm (47.25 × 78.75 in.) |
1320 × 3050 mm (51.96 × 120 in.) |
| Maximum Screen Frame Size (L × W) | 1700 × 2700 mm (66.9 × 106.3 in.) |
1800 × 3600 mm (70.86 × 141.73 in.) |
| Vacuum / Worktable Size (L × W) | 1400 × 2450 mm (55.1 × 96.5 in.) |
1500 × 3500 mm (59.0 × 137.79 in.) |
| Screen Frame Thickness | 20–50 mm (0.75–2 in.) |
20–50 mm (0.75–2 in.) |
| Table Accuracy | ±0.15 mm | ±0.15 mm |
| Reprint Accuracy | ≤0.05 mm | ≤0.05 mm |
| Substrate Thickness | ≤20 mm | ≤20 mm |
| Printing Pressure | 0.4–0.6 kgf/cm² | 0.4–0.6 kgf/cm² |
| Air Pressure Input | 5–7 bar (72–100 psi) |
5–7 bar (72–100 psi) |
| Electrical Source | 380–480 V, 3 Phase, 50/60 Hz | 380–480 V, 3 Phase, 50/60 Hz |
| Weight | 2000 kg (4,410 lb) |
3500 kg (7,700 lb) |
| Machine Dimensions | 3700 × 3550 × 1600 mm (145.7 × 139.8 × 63 in.) |
5050 × 3750 × 1600 mm (198.8 × 147.6 × 63 in.) |
Specifications are subject to application review and machine configuration. Confirm final requirements with Deco Tech before purchase.
Let the Application Decide Between the DT-1220 and DT-1320
Large-format screen printing applications are best reviewed around the actual substrate, artwork and handling requirements. If your project fits comfortably within 1200 × 2000 mm, the DT-1220 may be the more practical footprint. For larger panels or print areas extending to 1320 × 3050 mm, the DT-1320 provides substantially more usable production capacity.
- Maximum sheet or panel dimensions
- Actual artwork / print-area size
- Substrate material and thickness
- Required registration tolerance
- Screen-frame dimensions
- Ink and curing requirements
- Target production rate
- Loading / unloading requirements
Which SERVOREX Size Fits Your Production?
Send Deco Tech your substrate size, artwork, material, target throughput and registration requirements. We can compare the DT-1220 and DT-1320 around the actual job and recommend the machine size that gives you the required print area without oversizing the system unnecessarily.
