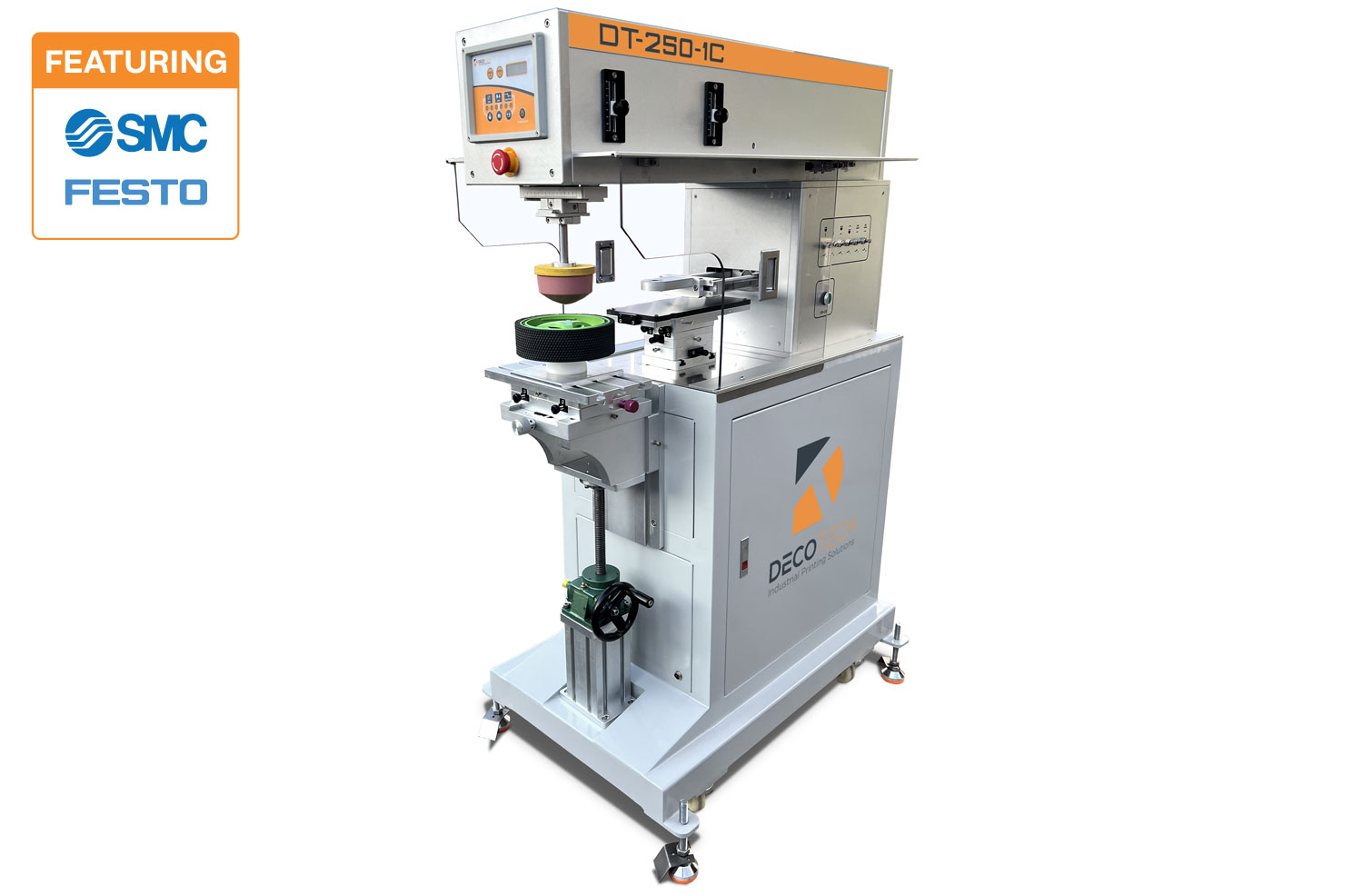

DT-250-1C One Color Pad Printing Machine
One color pad printing machine with 140mm closed ink cup.
Machine Type: Semi-Automatic Pad Printing Machine
Manufacturer: Deco Tech
Origin: Built in China with World-Class Components
DT-250-1C Pad Printing Machine – Large Format, One-Color Powerhouse
The DT-250-1C is a heavy-duty, large-format 1-color pad printing machine designed for high-volume applications where durability, ease of use, and print area size matter. Engineered for consistent performance and fast changeovers, it’s ideal for printing larger graphics on a wide range of part shapes and materials.
This machine features a front-facing membrane control panel with LCD display, offering intuitive operation and quick access to print settings. The pad stroke controls, located on the right side of the machine, are numerically calibrated for easy fine-tuning of stroke lengths during setup.
Robust Construction for Demanding Workflows
Built on a welded steel base, the DT-250-1C is equipped with adjustable floor levelers and a height-adjustable T-slot worktable—delivering a solid, vibration-free platform suited for larger parts and industrial environments.
Expanded Print Area and Versatile Plate Compatibility

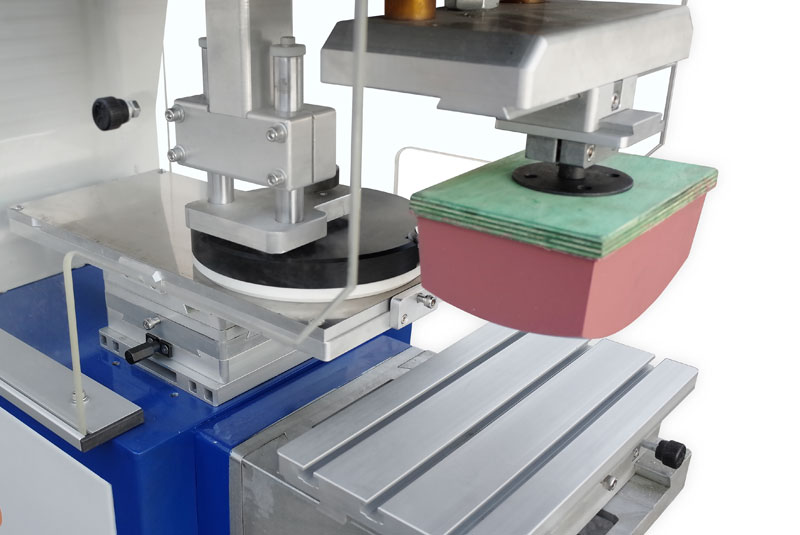

This model includes a 140mm sealed ink cup and a 150 × 300mm X/Y/R adjustable cliché holder, offering precise alignment and support for large or detailed artwork. The DT-250-1C accommodates all standard cliché formats:
- Photopolymer plates
- Laser-etched plates
- Thin steel (0.5 mm)
- Thick steel (10 mm)
Full Support from Deco Tech
As part of the DT Series, this machine is supported with a full range of pad printing consumables, expert technical support, and hands-on training. Every unit is covered by a one-year warranty against manufacturing defects, giving you the confidence to run production day after day.
Key Features of the DT-250-1C One-Color Pad Printing Machine
- Microprocessor-Based PCB Control
Reliable and responsive microprocessor logic ensures smooth and consistent print operation. - Membrane Control Panel with LCD Display
Easy-to-use front-facing interface with clear menu navigation and job mode indicators. - Festo & SMC Pneumatics
Outfitted with trusted, high-performance pneumatic components for long-term durability and precise actuation. - Welded Steel Machine Base with Built-In Supply Cabinet
Heavy-duty structure provides stability during operation, with enclosed storage space for ink, tools, and consumables. - Fully Adjustable Worktable
Height-adjustable platform with X, Y, and skew (R) axis movement enables precise part positioning for optimal print quality. - T-Slot Fixture Table
Allows for fast and secure mounting of tooling and quick job changeovers. - Numerically Calibrated Stroke Length Adjustments
Operators can quickly dial in pad-to-plate and pad-to-part distances with visual accuracy. - Safety-First Engineering
Equipped with an OSHA-compliant emergency stop system and full CE safety standard compliance. - Production Ready
Includes a foot pedal, complete tool set, and operator manual—ready for immediate integration into your workflow.
Go Bigger with Reliable One-Color Performance
The DT-250-1C is your solution for large-format pad printing that doesn’t compromise on precision or ease of use. Built tough, easy to operate, and backed by Deco Tech’s expert support—it’s everything you need in a one-color pad printing system.
📞 Call Deco Tech Group today at (714) 639-DECO to request a quote or talk to a specialist about how the DT-250-1C can support your production goals.
DT-250-1C Pad Printing Machine – Technical Specifications
The DT-250-1C is a large-format, one-color pad printer designed for durability, ease of use, and excellent print coverage. Below are the complete specifications for this high-performance model.
| Technical Data | DT-250-1C |
|---|---|
| Printing Capacity: | Up to 780 parts per hour (pph) |
| Drive Type: | Electro-pneumatic PCB |
| Printing Force: | 3,016 N |
| Horizontal Pad Stroke: | 250 mm (9.84") |
| Air Supply: | 5–6 bar (72–87 psi) |
| Air Consumption: | 4–6 kg/cm² |
| Control System: | 12V PCB |
| Power Connection: | 110V / 220V, 50/60 Hz |
| Control Voltage: | 24 VDC |
| Machine Weight (Net/Gross): | 170 kg (375 lbs) / 240 kg (530 lbs) |
| Plate Size (with Ink Cup): | 150 × 300 mm (5.9" × 11.81") |
| Plate Thickness: | 0.5 mm or 10 mm |
| Ink Cup Size (Diameter): | 140 mm (5.5") |
| Max Print Diameter: | 130 mm (5.11") |
