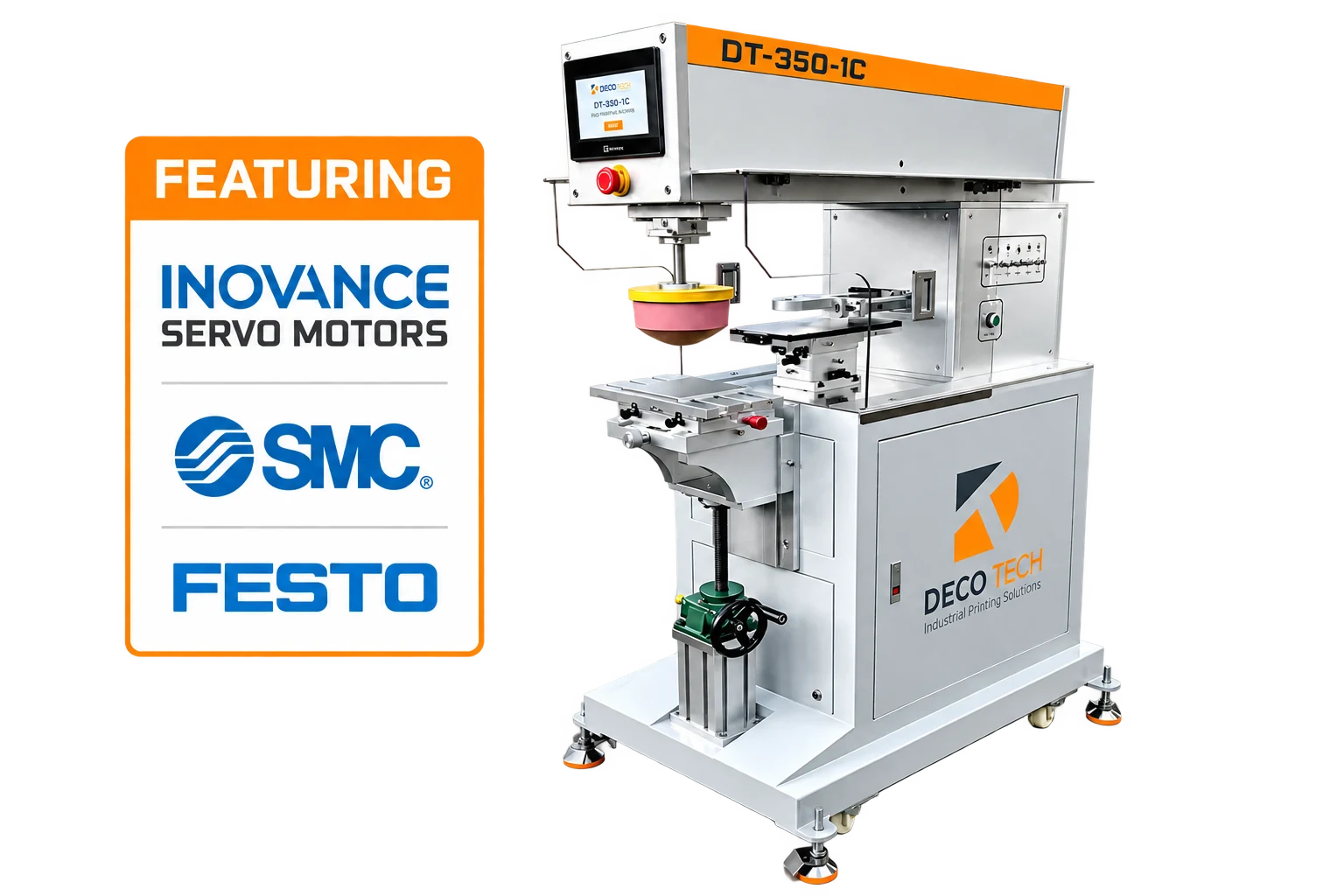

MERIS™ 350-1C Servo Driven One Color Pad Printing Machine
The MERIS™ 350-1C is the same large-format one-color machine platform previously offered as the DT-350-1C, now updated with separate Inovance servo motors for the horizontal and vertical pad movements. The servo upgrade provides programmable motion, faster point-to-point travel where the application allows, more precise and repeatable positioning, and job memory for saving and recalling production parameters.
The DT-350-1C is now the servo-driven MERIS 350-1C.
The core machine remains the large-format, one-color platform developed around a 200 mm closed ink cup and a maximum specified print diameter of 180 mm. What has changed is the pad drive system.
Instead of using air cylinders to move the pad horizontally and vertically, the MERIS 350-1C uses two Inovance servo motors. One servo controls the 350 mm front-to-back travel between the cliché and the part. The second controls the adjustable 10–250 mm vertical printing stroke.
Pneumatics are still used for supporting machine functions, including the standard closed ink-cup drive. The pad movement itself is now servo controlled.
Servo Driven Horizontal Travel
Inovance servo control replaces the previous air-cylinder-driven front-to-back pad movement.
Servo Driven Vertical Stroke
A separate Inovance servo controls pad up/down movement for programmable, repeatable print positioning.
Job Memory & Recall
Machine parameters can be stored and recalled for repeat jobs, helping operators return to proven production setups faster.
Mitsubishi PLC + WeinView Touchscreen
The operator interface provides centralized machine control, setup and access to saved job parameters.

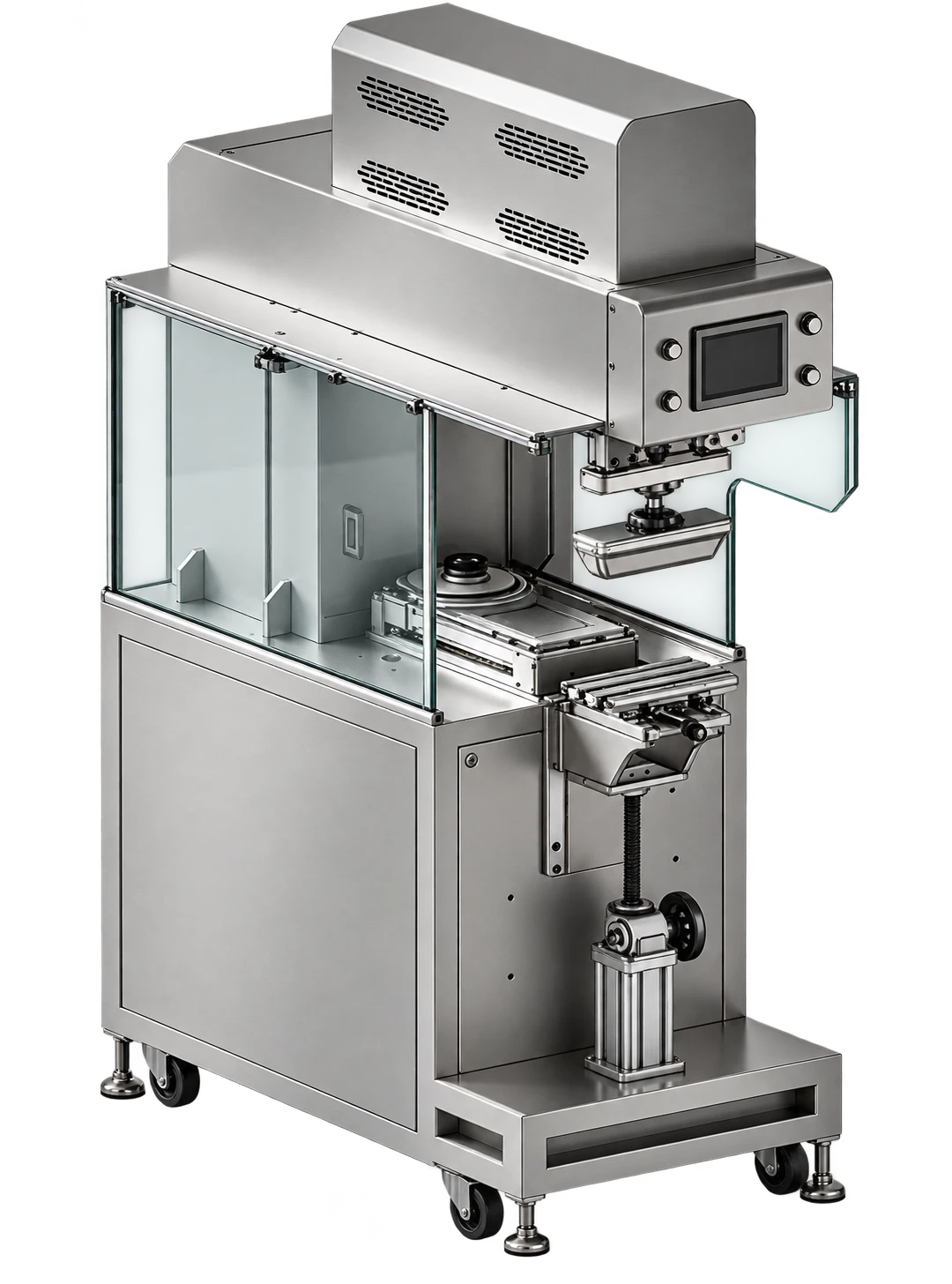

Preview of the updated MERIS 350-1C machine layout.
This cleaned-up rendering provides a better visual reference for the new MERIS 350-1C machine style, including the enclosed upper structure, guarded work area and updated control-head layout.
It is included as a visual representation of the current machine concept alongside the main hero image. Final production details, guarding, controls and component placement may vary based on the finished machine build and option configuration.
Faster motion where speed helps. More control where precision matters.
Changing the pad axes from pneumatic cylinders to servo motors gives the MERIS 350-1C much more control over how the pad travels through each cycle. The benefit is not simply moving every stroke as fast as possible; it is being able to move quickly through open travel and use controlled motion as the pad approaches the cliché and the part.
Faster point-to-point travel
Compared with an air cylinder whose movement depends on air pressure, flow settings and load, servo motion can follow a programmed acceleration, travel and deceleration profile. Where the application permits, this can reduce non-print travel time within the cycle.
More repeatable pad positioning
Servo-controlled axes move to commanded positions rather than relying on pneumatic end-of-stroke motion. This provides more precise, repeatable positioning from cycle to cycle and more controlled setup of pad travel.
Save and recall job parameters
Production parameters can be stored in job memory and recalled when a repeat order returns. That reduces the need to manually recreate machine settings during future setups and changeovers.
Controlled acceleration and deceleration
Servo motion allows the machine to use different motion behavior through the travel path, helping combine efficient movement with controlled approach to the printing plate and production part.
Large-format pad printing for bigger graphics and difficult surfaces.
The 200 mm closed ink cup and up to 180 mm specified print diameter make the MERIS 350-1C suitable for large one-color graphics on curved, recessed and irregular products.
Medical Device Components
Housings, molded components, identification graphics and technical markings where the complete printing process can be validated.
Automotive & Industrial Parts
Controls, covers, housings and durable product identification on molded or fabricated components.
Injection-Molded Products
Curved, recessed and irregular plastic parts that are difficult to decorate with a flat printing process.
Hard Hats & Helmets
Larger graphics on curved shells where pad geometry and fixture support are important to transfer quality.
Sporting & Promotional Goods
Branded equipment and larger molded products requiring a one-color logo, emblem or product graphic.
Consumer Housings & Enclosures
Repeatable placement of logos, symbols, instructions or product identification on housings and covers.
Optional automatic pad cleaning.
An automatic pad cleaning system is available to help remove ink buildup and contamination from the silicone pad during production, reducing the frequency of manual cleaning interruptions on longer runs.
Standard configuration
The closed ink cup is pneumatically driven.
With automatic pad cleaning
Ink-cup movement is motor driven as part of the optional cleaning configuration.
Application dependent
Cleaning frequency depends on the ink, artwork, pad geometry, environment and production conditions.
Machine, tooling and consumables from one source.
A pad printer is only one part of a successful application. Deco Tech can help develop the pad, cliché, ink and part-holding fixture around the actual production requirement.
Pad Printing Inks
Match the ink system to the substrate, performance requirement and production process.
View Inks → ConsumablesSilicone Printing Pads
Select pad shape, size and hardness around the artwork and part geometry.
View Pads → ToolingPad Printing Clichés
Choose the appropriate plate type, thickness and image layout for the MERIS configuration.
View Clichés → EngineeringCustom Fixtures
Support and locate the part correctly with application-specific nesting fixtures and tooling.
View Fixture Services →MERIS™ 350-1C specifications
The specifications below describe the current servo-driven configuration. Final cycle time, pad size and tooling should be evaluated around the actual part and artwork.
- Number of Colors
- One color
- Estimated Printing Capacity
- Approximately 600–720 cycles per hour
- Pad Drive System
- Inovance servo motors for horizontal and vertical pad movements
- Job Memory / Recall
- Save and recall production parameters for repeat jobs
- Control System
- Mitsubishi PLC with WeinView touchscreen
- Horizontal Pad Stroke
- 350 mm (13.78 in.)
- Vertical Pad Stroke
- Adjustable 10–250 mm (0.39–9.84 in.)
- Ink Cup Drive
- Pneumatic as standard; motor driven with optional automatic pad cleaning
- Pneumatic Components
- Festo / SMC
- Automatic Pad Cleaning
- Optional
- Printing Plate Size
- 210 × 460 mm (8.27 × 18.11 in.)
- Printing Plate Thickness
- 0.5 mm standard; 10 mm thick plates available upon request
- Ink Cup Diameter
- 190 mm inside diameter / 200 mm outside diameter
- Maximum Print Diameter
- 180 mm (7.09 in.)
- Required Air Pressure
- 5–6 bar (approximately 73–87 psi)
- Power Supply
- 110 V, 50/60 Hz
- Machine Dimensions (L × W × H)
- 1,250 × 700 × 2,190 mm (49.21 × 27.56 × 86.22 in.)
- Approx. Crated Dimensions (L × W × H)
- 1,450 × 900 × 2,400 mm (57.09 × 35.43 × 94.49 in.)
- Approx. Net Weight
- 380 kg (838 lb.)
- Approx. Gross Weight
- 480 kg (1,058 lb.)
*Production rate is an estimate. Actual output depends on the part, artwork, pad selection, stroke settings, fixture design, operator loading/unloading and process requirements. Specifications are subject to change.
Common questions about the MERIS 350-1C servo upgrade.
What changed from the DT-350-1C to the MERIS 350-1C?
The machine remains the same large-format one-color platform, but the horizontal and vertical pad movements are now driven by separate Inovance servo motors instead of air cylinders. The servo version also adds programmable motion and job memory for saving and recalling production parameters.
How is servo drive different from an air-cylinder pad drive?
Air-cylinder speed is influenced by air pressure, flow control and load. Servo drive provides electronically controlled position and motion profiles, allowing faster point-to-point movement where appropriate and more precise, repeatable positioning at the cliché and part.
Can the MERIS 350-1C save setups for repeat jobs?
Yes. Job memory allows machine parameters to be saved and recalled for repeat production, helping reduce the time required to recreate a proven setup during future changeovers.
What is the maximum print size?
The maximum specified print diameter is 180 mm (7.09 in.) with the 200 mm outside-diameter closed ink cup. Actual printable artwork also depends on part geometry, pad selection, image shape and transfer requirements.
Can automatic pad cleaning be added?
Yes. An optional automatic pad cleaning system is available. In that configuration the ink-cup movement is motor driven rather than the standard pneumatic cup drive.
Can Deco Tech evaluate my part before I order a machine?
Yes. Send the part or drawings, artwork dimensions, substrate, print color and expected production volume. Deco Tech can review the machine configuration together with the fixture, printing pad, cliché and ink requirements.
Build the MERIS 350-1C around your actual part and artwork.
Send us your part drawings or samples, artwork dimensions, substrate, print color and production requirements. We can review the application and recommend the machine, pad, cliché, fixture and ink setup.
sales@decotechgroup.com

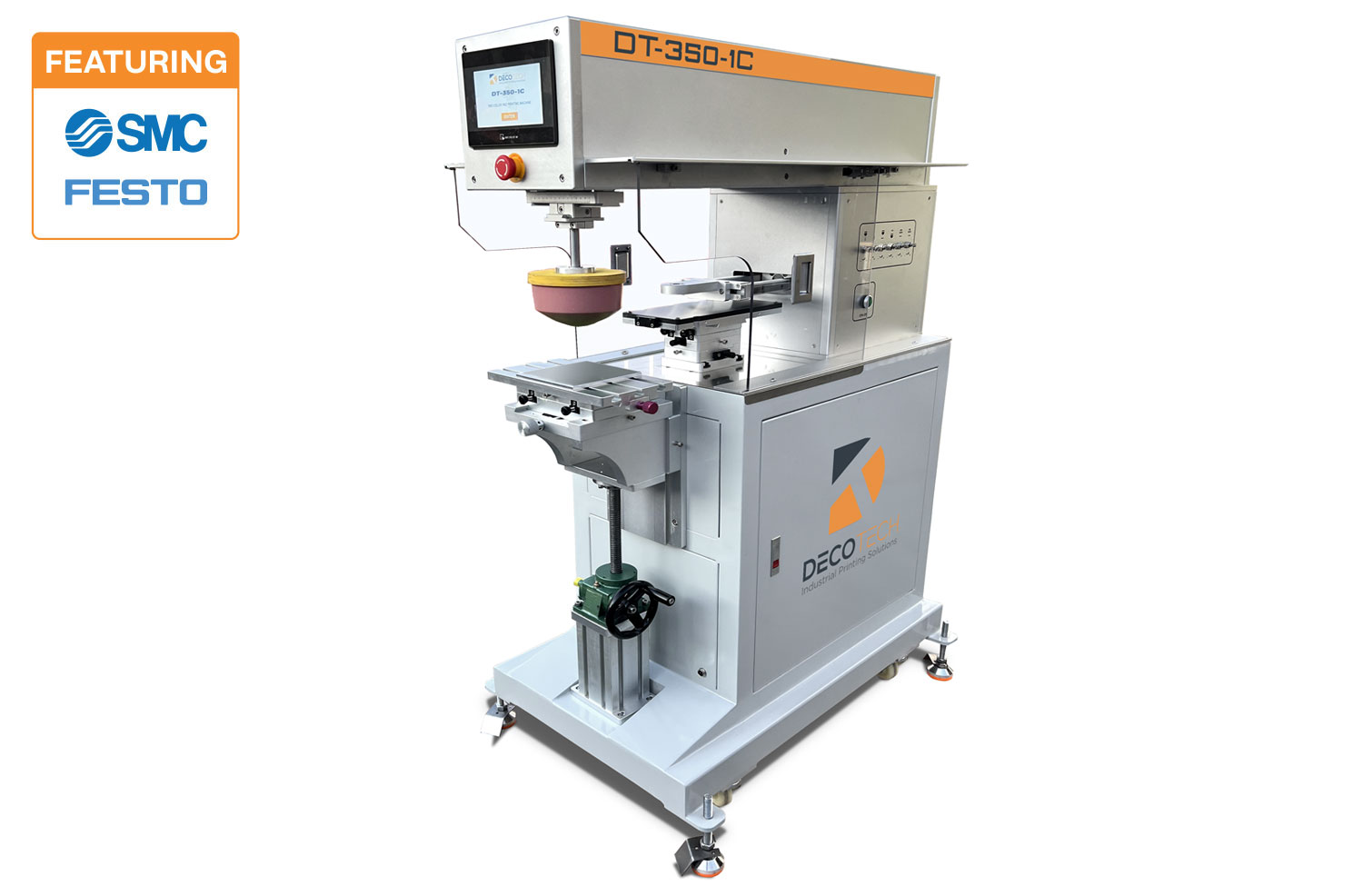

The DT-350-1C pad printing machine is a high-performance, jumbo-sized 200mm closed cup pad printer engineered for industrial applications that demand precision, reliability, and ease of operation. Featuring a Mitsubishi PLC with an intuitive touch screen interface, this machine allows operators to control pad strokes (to cliché and to part) with exceptional accuracy using built-in sensor technology. Built on a heavy-duty welded steel frame with adjustable floor levelers and a height-adjustable worktable, the DT-350-1C delivers stability and consistent print quality on every cycle. This advanced pad printer includes a 200mm ink cup and an X/Y/R adjustable cliché holder (210 x 460mm), designed to accommodate thin steel, laser-etched, or photo-polymer plates. Backed by decades of industry expertise, Deco Tech offers a complete range of consumable supplies, technical support, and in-house product training to maximize the performance of your DT Series pad printing equipment. All Deco Tech pad printing machines are covered by a one-year warranty against manufacturing defects, ensuring long-term reliability. Contact our experts today at (714) 639-DECO for detailed information or a custom quote.
Key Features of the DT-350-1C Pad Printing Machine
- PLC Controlled with Touch Screen Interface: Precision control with a Mitsubishi PLC and user-friendly touch screen for quick setup and stroke adjustments.
- Premium Pneumatic Components: Equipped with reliable Festo and SMC brand pneumatics for long-term durability and consistent performance.
- Heavy-Duty Steel Machine Base: Includes an integrated storage cabinet for tools and supplies, ensuring a stable and organized workspace.
- Height Adjustable Worktable: Features X/Y and skew adjustments for accurate part positioning and easy fixture alignment.
- T-Slot Table Design: Enables fast, secure mounting of fixtures and tooling for increased production efficiency.
- Easy Stroke Adjustment: Pad-to-part and pad-to-plate stroke lengths can be easily fine-tuned directly from the touchscreen interface.
- OSHA and CE Safety Compliance: Equipped with an E-stop safety circuit, approved guarding, and full CE compliance for operator safety.
- Convenient Operation: Comes standard with a foot switch, tool set, and operator’s manual for immediate setup and production readiness.
Industrial Applications of the DT-350-1C Pad Printing Machine
- Designed for large-format, one-color pad printing on industrial products.
- Equipped with a jumbo 200mm ink cup for oversized print areas.
- Ideal for decorating:
- Medical devices
- Automotive components
- Promotional items and sporting goods
- Consumer electronics and high-value parts
- Handles complex shapes and challenging materials, including plastics, coated metals, glass, and composite surfaces.
- Features a height-adjustable worktable and customizable fixtures for quick and accurate setups.
Why Choose Deco Technology Group?
- 35+ years of expertise in pad printing, screen printing, and industrial product decoration.
- Trusted North American distributor of premium quality pad printing machines with world class components.
- Comprehensive technical support, operator training, and installation services.
- Full range of consumable supplies including inks, pads, and clichés for ongoing production needs.
- Proven track record of delivering high-performance, reliable equipment to leading manufacturers.
- One-year warranty on all Deco Tech pad printing machines for peace of mind.
- Expert guidance to ensure custom setups and optimal production efficiency.
Talk to Our Pad Printing Experts
For detailed information about the DT-350-1C pad printing machine, contact the experts at (714) 639-DECO or email sales@decotechgroup.com. Our team can provide pricing, lead times, and technical guidance to help you choose the right equipment and setup for your production needs.
TECHNICAL SPECIFICATIONS OF THE DT-350-1C PAD PRINTER
| Technical Data | DT-350-1C |
|---|---|
| Printing Capacity | Up to 720 pph |
| Drive | Pneumatic with PLC and Touch Screen |
| Printing Force | 3,016 N |
| Horizontal Pad Stroke | 350 mm (13.77") |
| Vertical Pad Stroke | 80 mm (3.15") |
| Air Supply | 5–6 bar (72–87 psi) |
| Air Consumption | 4–6 kg/cm² |
| Power Connection | 110V / 220V, 50/60 Hz |
| Control Voltage | 24 VDC |
| Weight (Net / Gross) | 320 kg (704 lbs) / 350 kg (770 lbs) |
| Machine Dimensions (L x W x H) | 1,500 x 650 x 1,650 mm (59.0” x 25.5” x 64.9”) |
| Crated Dimensions (L x W x H) | 1,750 x 900 x 1,900 mm (68.9” x 35.5” x 74.8”) |
| Plate Sizes with Ink Cup | 210 x 560 mm (8.26" x 22") |
| Plate Thickness | 0.5 mm or 10 mm |
| Max Ink Cup Size (Outside Diameter) | 200 mm (7.87") |
| Max Print Size (Diameter) | 180 mm (7") |
Extra Large one color pad printing machine with 200mm closed ink cup.
Machine Type: Semi-Automatic Pad Printer
