DT-350-SCS Servo Cup Slide Pad Printing Machine
Servo Driven transverse cup slide pad printing machine for catheters and other long objects

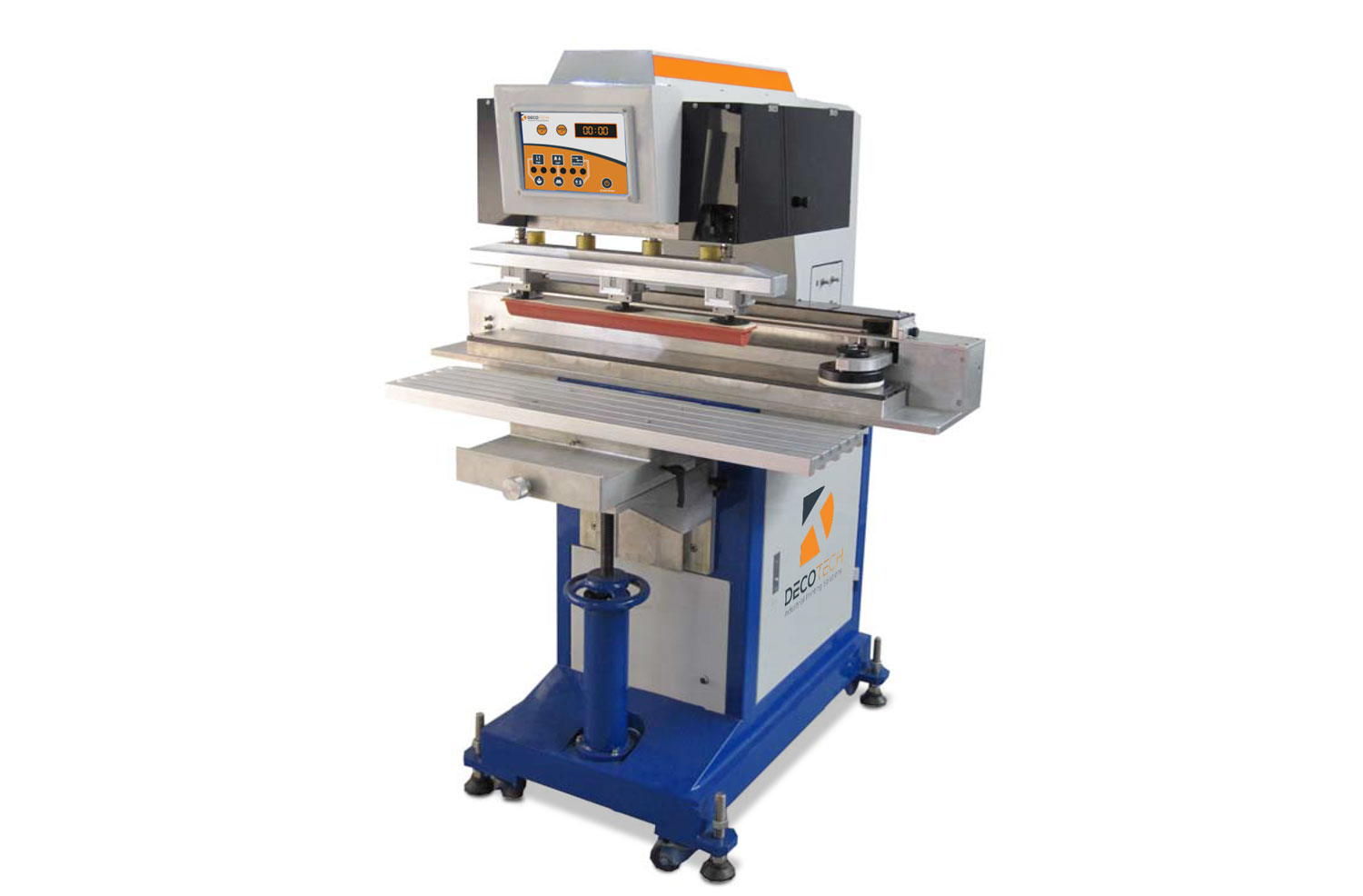

The DT-350-SCS Servo Cup Slide pad printing machine has been specifically designed to address the needs of the medical device industry to pad print graduations & depth marks onto catheter tubing. This pad printing machine is also well suited for other long items such as pipettes, rulers, yard sticks, electrical cable assemblies and more. The sealed ink cup travels sideways (transverse axis with servo motor) and during loading and unloading of the catheter tubing, the ink cup keeps cycling to keep the etched image wet and ready to print on the next cycle. Load a part and then activate the footswitch and the pad printing machine will cycle and print again. The DT-350-SCS is equipped with three servo motors: 1) horizontal pad carriage, 2) vertical pad stroke, and 3) transverse cup slide motion. Ink cup stroke length is fully programmable (200 to 1000mm) and job parameters can be saved in the PLC via the touch screen interface. Every Deco Tech brand machine is built with world class components with Mitsubishi PLC & Touch Screen. This unit is equipped with an oversized X/Y/R/Z worktable with T slots for mounting the vacuum nesting fixture used to hold down the catheter tubing or part securely. The DT-350-SCS is also equipped with a heavy-duty floor stand with floor levelers and casters. The DT-350-SCS complies with both OSHA & CE safety standards and is equipped with interlocking doors and light curtains in the loading area.
This DECO TECH pad printing machine is backed with a one year warranty. Call the experts at (714) 639-3326 to learn more.
Features
- Designed for pad printing on catheters and other long parts
- Available with 70, 90 or 120mm ink cups
- Print length up to 915mm (3 ft) with a 70mm ink cup
- Mitsubishi PLC Controlled with touch screen
- 3 servo motors full programmable
- Automatic pad cleaning
- X/Y/R/Z adjustable worktable
- Equipped with heavy-duty floor stand with levelers
- Smooth & quiet motor driven machine performance
- Complies with OSHA & CE safety standards
Specifications
Technical Data | DT-350-SCS100/130 |
---|---|
Drive: | Servo Motors (3) |
Printing Force: | 3,000 N Max |
Control system: | Mitsubishi PLC with Touch Screen |
Main Voltage | 110V/ 240V 50/60Hz.. |
Control voltage: | 12V |
Weight: | 200 Kg (440 lbs) |
Cliché Size: | 100 x 1000 max (100 version) 130 x 1000 max (130 version) |
Cliché Thickness: | 0.5 or 10mm |
Ink Cup Size (ID): | 70 or 90mm (100 version) 120mm max (130 version) |
Machine Dimensions: (WxDxH): |
1,300 x 750 x 1700mm (51.2" x 29.5" x 66.9") |
