DT-4060 Flatbed Screen Printing Machine

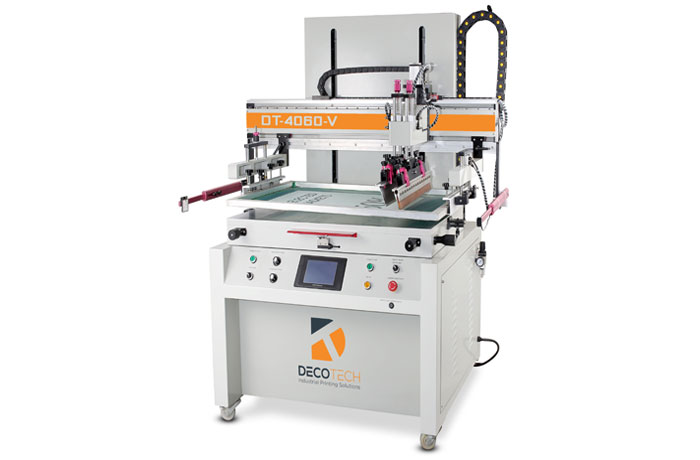

Deco Tech DT-4060 Flatbed Screen Printing Machine

Precision Vertical-Lift Screen Printing for Flat Industrial & Specialty Graphics Applications

If you're seeking a rugged, high-precision flatbed screen printing machine built for repeatable quality and industrial reliability, the Deco Tech DT-4060 Series delivers. Designed and engineered for demanding production environments, the DT-4060-T (T-slot table) and DT-4060-V (vacuum table) models are purpose-built for high-quality decoration on rigid and semi-rigid flat substrates.

Unlike clam-shell style presses that pull ink out of the print zone on every cycle, the DT-4060 uses a vertical-lift screen head supported by dual-axis DC motors—one for vertical motion, one for horizontal stroke. This vertical print plane keeps ink precisely in position and eliminates downtime caused by ink migration. Operators spend less time stopping and adjusting—and more time printing consistent, high-opacity images.

Whether you're printing membrane switches, graphic overlays, metal signage, cocoa transfer films, or powder-coated components, the DT-4060 provides the control, build quality, and accessibility needed for modern production. It's a versatile platform built to last—with the flexibility to handle short runs, high mix, and high-volume orders alike.

Engineered for Print Consistency, Built for Industrial Throughput

  • Precision-Controlled Motion: Dual DC motors for separate control of vertical lift and horizontal stroke. Each movement is programmable for consistent results across every print cycle.
  • Superior Ink Management: Vertical lift design keeps ink in the print zone—no more flooding the frame or stopping production to re-position ink.
  • Flexible Print Table Options: Choose from a vacuum table (DT-4060-V) for thin sheets or a T-slot table (DT-4060-T) for fixtures, clamps, or irregular substrates.
  • Mitsubishi PLC + Touchscreen: Reliable automation control with intuitive user interface—updated in 2022 for enhanced usability.
  • Built for Operator Efficiency: Easy access to printed sheets and full part visibility throughout the run. Ideal for short runs, setup changes, or batch QC.
  • Safe & Ergonomic: Integrated safety bar with stroke interruption plus foot pedal control for fatigue-free use.

Application Versatility

The DT-4060 is trusted in a wide range of industrial and specialty print applications, including:

  • Membrane switches and user interface panels
  • Polycarbonate overlays and backlit graphics
  • Metal panels and powder-coated enclosures
  • Cocoa butter transfer sheets for chocolate decoration

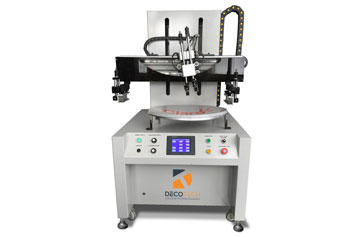

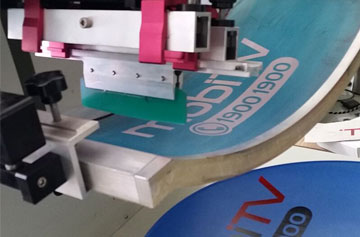

  • Satellite dish coatings (special model available)
  • Industrial plastics, injection-molded parts, and more

For larger or smaller print formats, Deco Tech also offers companion models: DT-3050, DT-5070, and DT-6090 — all built with the same Swiss-inspired reliability and attention to detail.

Key Features:

  • Dual Axis DC Motor driven
  • Mitsubishi PLC controlled with touchscreen (new update for 2022)
  • Integrated safety bar with stroke interruption
  • Motor driven vertical & horizontal strokes (set mechanically)
  • X/Y/R positioning table with or without vacuum table
  • Linear ball bearings on hardened shafts
  • Squeegee angle and calibrated height adjustment
  • 600 x 900mm (23.62" x 35.43") print area
  • Regulated squeegee pressure with pressure gauge
  • Floor levelers & casters
  • Foot switch controlled

Built for Professionals Who Demand Precision

If you're responsible for specifying capital equipment that must deliver both performance and reliability, the DT-4060 series was designed with you in mind. From its linear ball bearing guides to its calibrated squeegee adjustment and X/Y/R positioning table, every feature is engineered to reduce waste, speed changeovers, and improve process control.

Ready to Upgrade Your Flatbed Screen Printing Capabilities?

Contact Deco Tech today to learn how the DT-4060 flatbed screen printing machine can improve your print quality, reduce setup time, and streamline your production workflow. Whether you're printing membrane switches, rigid panels, or specialty graphics, our team provides expert consultation, in-house testing, and full support across North America.

Call us at (714) 639-DECO or email sales@decotechgroup.com to discuss your application.

DT-4060 Flatbed Screen Printing Machine – Technical Specifications

Engineered for precision, reliability, and operator efficiency, the DT-4060-T (T-slot table) and DT-4060-V (vacuum table) are ideal for high-quality screen printing on flat substrates across various industries.

Technical DataDT-4060-T/V
Printing Capacity:Up to 800 cycles/hr
Drive:Dual Axis AC Motor
Maximum Print Area (L x W):400 x 600mm (15.74" x 23.62")
Max. Screen Frame Size (L x W):600 x 930mm (23.62" x 36.61")
Vacuum Table Size (L x W):400 x 600mm (15.74" x 23.62")
Work Table Size (L x W):500 x 700mm (19.68" x 27.56")
Screen Frame Thickness:20–50mm (0.75" to 2")
Max Print Height:100mm (3.93")
Screen Adjustment:X, Y ± 10mm / θ 1.8°
Print Stroke:600mm (23.62")
Vertical Screen Stroke:250mm (9.84")
Air Pressure Input:5–7 bar (72–100 psi)
Electrical Source:110/220/230V 1 Phase 50/60Hz
Weight:320 kg (705 lbs)
Dimensions:1,150 x 1,000 x 1,700mm (45.27" x 39.37" x 66.92")

Medium format screen printing press to screen print on flat sheets up to 400 x 600mm (15.74" x 23.62")

Machine Type: Flat-bed Screen Printing Press
