High-Speed Sheet-Fed Machine for Precision Flatbed Production

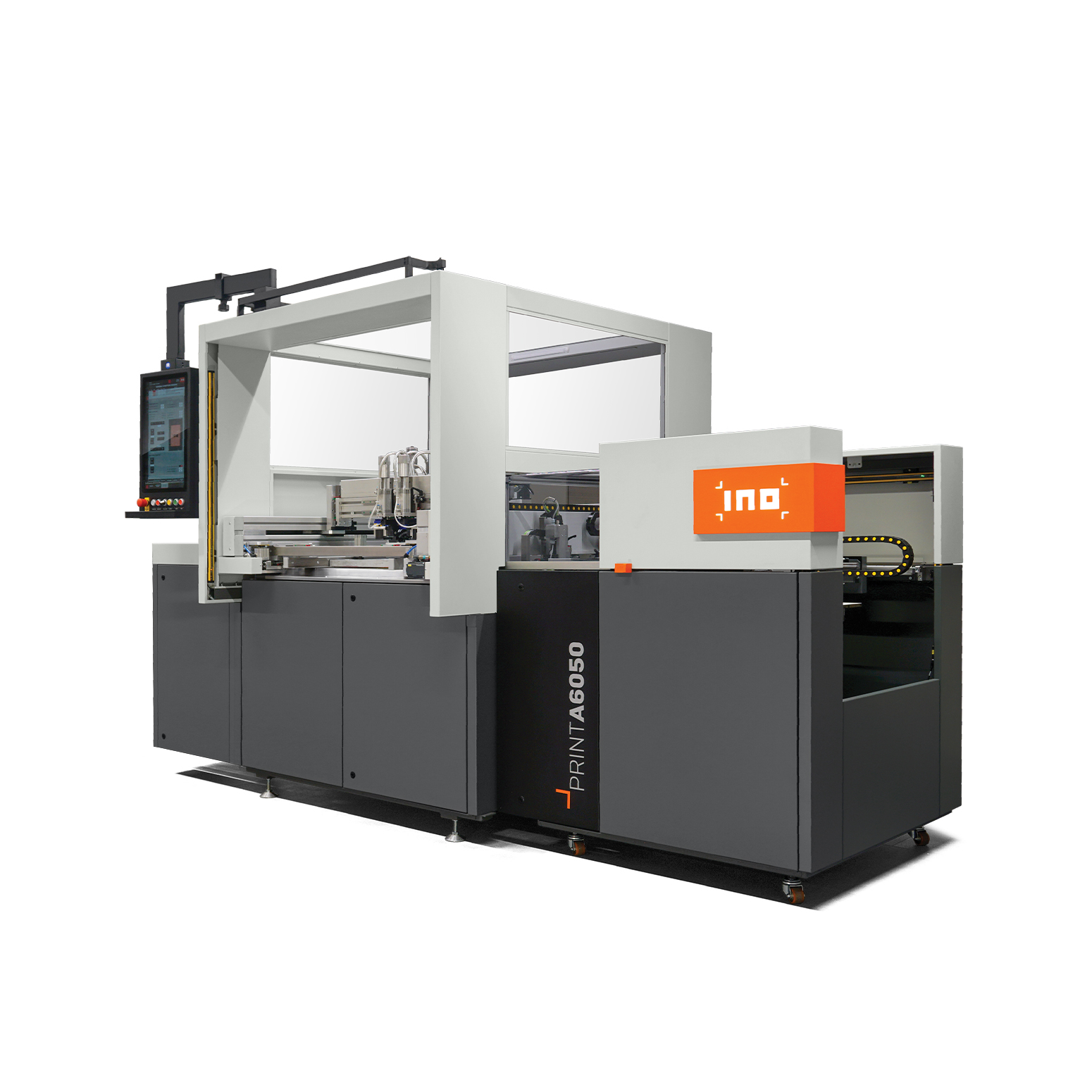

The INO A6 is a high-speed, precision-driven flatbed screen printing machine built to meet the demands of industrial-scale heat transfer and flat sheet printing. It serves as the core print module within the fully integrated INO HT Line — a comprehensive, automated platform developed to streamline every stage of textile heat transfer production.

With camera-based substrate registration and automated screen positioning, the A6 ensures perfect print alignment across a wide range of substrates, including PET, coated films, and flexible media. Whether you're producing heat transfers for apparel, multicolor sportswear graphics, high-build 3D prints, or hybrid textile transfers, the A6 enables precise, repeatable results in high-throughput production environments.

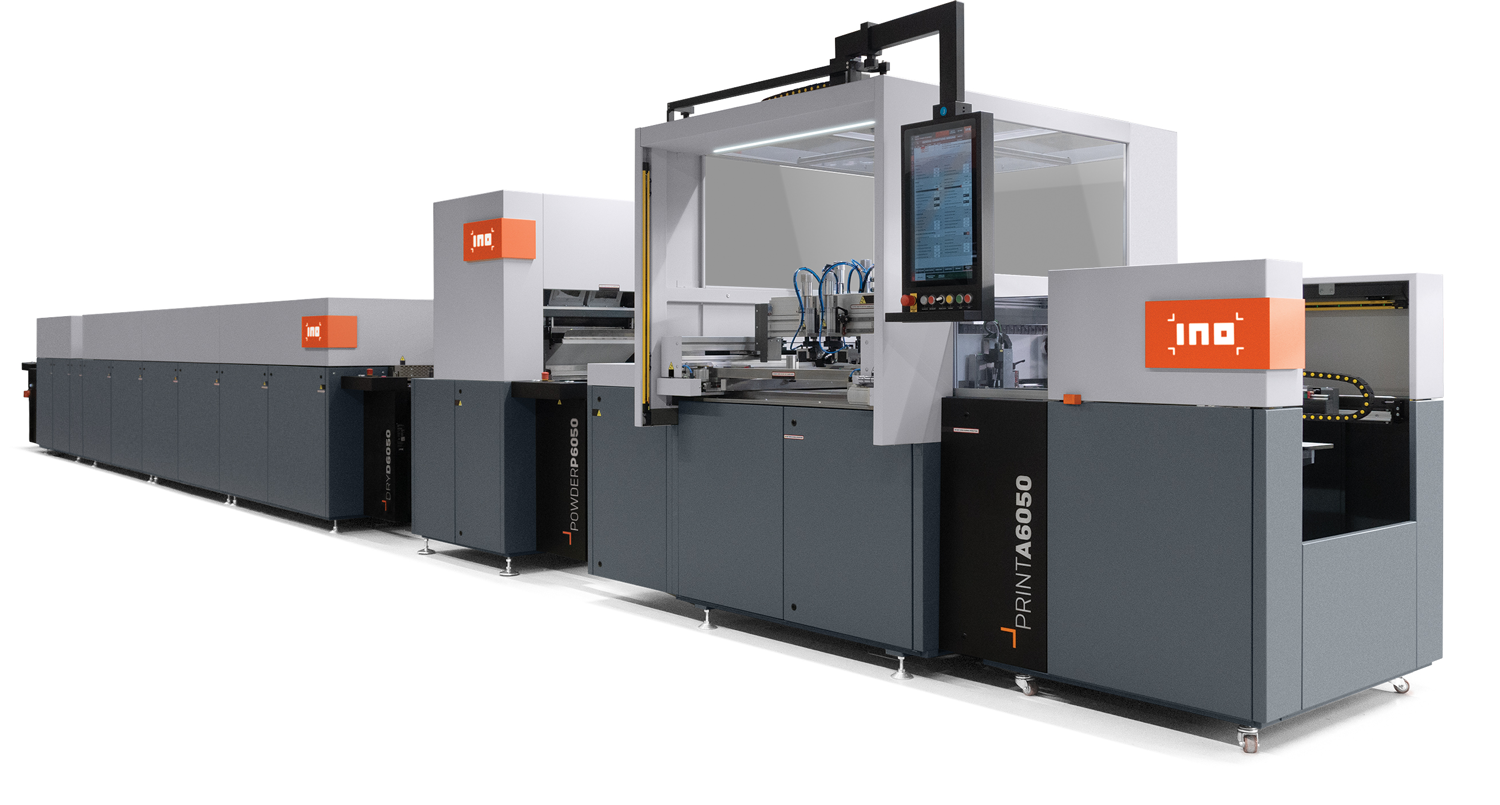

The INO HT Line, powered by the A6, is designed to merge the durability and reliability of traditional screen printing with the flexibility of digital workflows. This hybrid approach allows manufacturers to produce short runs, long runs, and fully customized jobs with minimal setup time and virtually no compromise on quality.

Supporting full-line automation, the A6 integrates with:

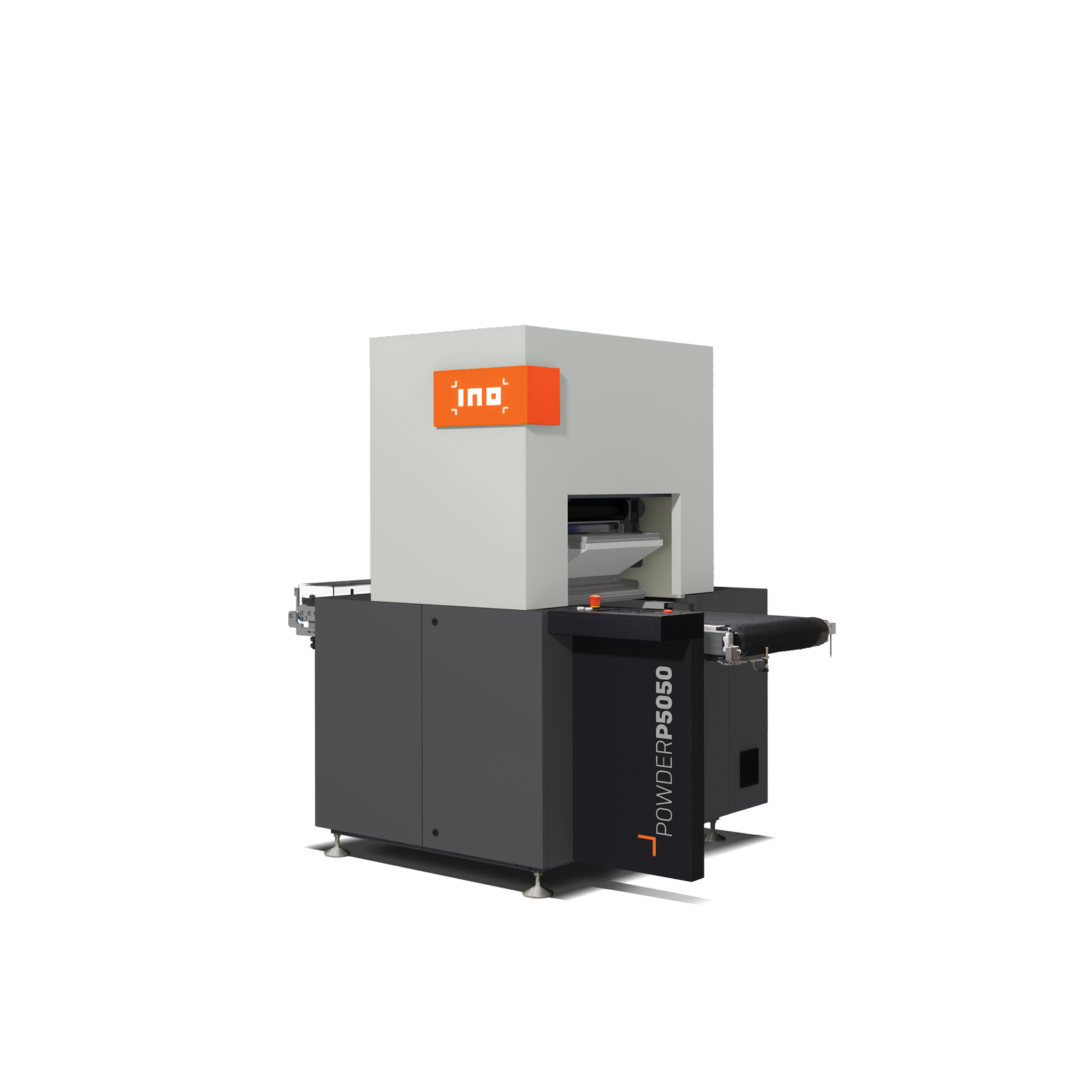

• POWDER P5 for hot melt powder application

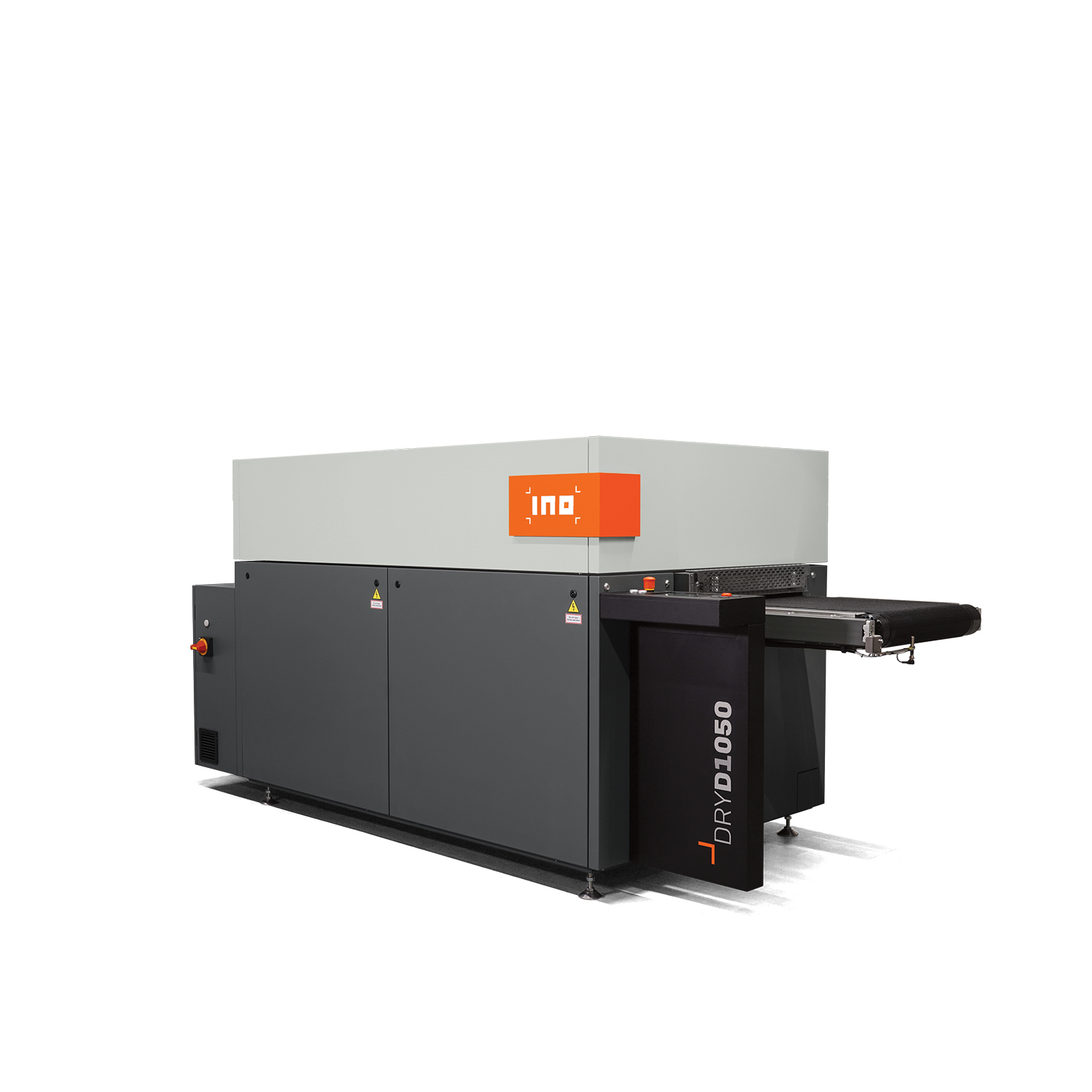

• DRY D6 energy-efficient conveyor dryer with IR and UV options
• STACK S3 automatic sheet stacker with precise alignment

This modular layout delivers a complete, closed-loop production system optimized for textile heat transfers and other precision screen printing applications.

• Balancing Quality and Cost
  Manufacturers today must deliver superior product quality without sacrificing cost efficiency. The A6 automates critical steps, reduces screen changeover time, minimizes material waste, and increases throughput per shift—ultimately reducing the cost per transfer while improving overall output quality.
• Enabling Personalization at Scale
  The A6 allows printers to switch effortlessly between large production batches and personalized short runs. Quick setups and tool-free changeovers support a wide variety of print formats—ideal for on-demand graphics, team sportswear, brand customization, and regionalized SKUs.
• Simplified Operation with Limited Experience
  As skilled screen operators become harder to find, the A6 delivers consistent, high-quality output with minimal human intervention. Built-in recipe-based workflows, automated alignment, and intuitive software interfaces enable teams of any experience level to produce professional-grade results with confidence.

• The A6 is engineered to handle some of the most demanding print applications in the industry:
  • Hybrid textile transfers – perfect image alignment between digitally printed graphics and screen-printed adhesive back layers
  • Multicolor transfers – tight registration across multiple ink layers, ideal for athletic wear and high-end apparel
  • High-build transfers – precision layering to create raised 3D elements with dimensional and tactile effects

  With a maximum output of up to 800 sheets per hour and ±30 μm registration accuracy, the A6 helps eliminate defects, lower scrap rates, and ensure full compatibility with automated drying and stacking systems.

• Designed for industrial-scale production with consistent speeds up to 800 sheets/hour
• Fully integrated automatic sheet feeding and alignment, reducing human error and boosting efficiency
• Compatible with a variety of substrates from 75 to 600 microns, including plastic films, coated paperboard, textiles, and specialty composites

• Built-in camera-controlled auto-registration system guarantees exact print positioning to sheet edge or image target
• Integrated print length correction maintains print fidelity across long runs
• Delivers ±30 µm repeatability, ideal for multilayer screen printing and fine-line artwork

• Features an intuitive HMI interface with clear, logical controls for quick training and easy operation
• Minimizes setup time during screen or job changeovers
• Includes Industry 4.0 protocol options for data capture, traceability, and process control

• Can be fully integrated with inline drying units (UV or IR), powder systems, ionized air cleaning units, and sheet stackers
• Optional features include:
  • Anti-static kit (ionized air gun + discharge bar)
  • Pneumatic RKS squeegee holder
  • Front/back doors for enclosed safety compliance

The INO A6 is designed for manufacturers who require reliable, repeatable output across medium to high-volume production environments. Its camera-controlled registration, sheet-fed automation, and modular integration make it ideal for a wide range of advanced flatbed screen printing applications, including:

• Heat transfer printing for apparel and team sportswear (hybrid, multicolor, and high-build transfers)
• Ceramic and glass decoration using specialty coatings, inks, and functional finishes
• Luxury packaging printed on paperboard, foil board, and rigid carton stock
• Security printing for ID cards, badges, RFID/NFC labels, and anti-counterfeit products
• Decal and label production for industrial, promotional, and consumer goods
• 3D texture printing for tactile effects and elevated brand finishes

• The A6 delivers proven value in industries where speed, alignment accuracy, and substrate flexibility are essential to productivity and profitability:
  • Textile and apparel decoration – for tagless neck labels, heat transfers, hybrid digital-screen applications
  • Packaging manufacturers – premium folding cartons, cosmetics packaging, and foil-on-board decoration
  • Ceramic tile and glass decorators – applying durable graphic coatings to hard surfaces
  • Government and secure credentialing – ID cards, smart cards, RFID integration, and traceable media
  • Commercial printing operations – automation-driven production of high-precision flat graphics

Contact Deco Tech today to learn how the INO A6 screen printing machine can deliver high-speed, high-precision results for your application. Whether you're printing multicolor textile transfers, secure ID cards, or premium packaging, our team offers expert consultation, application testing, and full support across North America.

Call us at (714) 639-DECO or email us at sales@decotechgroup.com
