Deco Tech Silicone Pad Printing Pads
L001 Loaf Silicone Pad Printing Pad
The L001 is a medium loaf-style silicone pad printing pad with a recommended print area of 15 × 65 mm. Its compact, elongated profile provides a practical transfer surface for logos, lettering and other narrow industrial pad printing graphics.
15 × 65 mm
Recommended Print Area
120 mm
Overall Length
55 mm
Overall Width
54 mm
Overall Height

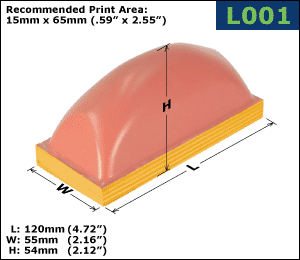

L001 Pad Profile
Medium Loaf Pad for Narrow Graphics
The L001 measures 120 mm long, 55 mm wide and 54 mm high. The recommended artwork area is approximately 15 × 65 mm (.59 × 2.55 in.).
Its loaf-shaped profile provides a longer transfer surface than a comparable round pad while maintaining a relatively compact overall footprint. This makes the L001 a useful starting point for logos, text, markings and other graphics where print length is greater than print height.
Pad selection note:
Recommended print area is a starting point. Final pad
selection also depends on part geometry, artwork position,
print detail, pad compression, machine clearance and fixture
design.
Loaf Pad Geometry
A Versatile Mid-Size Loaf Profile
The L001 combines a 65 mm recommended print length with a relatively compact 120 × 55 mm footprint, making it a useful profile to evaluate for a wide variety of industrial parts.
01
65 mm Print Length
Provides useful printable length for elongated logos, lettering and narrow graphics.
02
Loaf-Shaped Profile
The elongated silicone geometry provides a controlled rolling transfer surface during pickup and printing.
03
Industrial Applications
A practical profile for evaluating logos, product markings and other small-to-medium industrial graphics.
L001 Pad Specifications
| Pad Model | L001 |
|---|---|
| Pad Shape | Loaf |
| Recommended Print Area | 15 × 65 mm (.59 × 2.55 in.) |
| Overall Length | 120 mm (4.72 in.) |
| Overall Width | 55 mm (2.16 in.) |
| Overall Height | 54 mm (2.12 in.) |
Silicone Options
Available in Deco Tech Silicone Formulations
Select the silicone formulation and hardness appropriate for the part geometry, artwork and production requirements of the printing application.
DuraPro™
Durable silicone formulation for general industrial pad printing and production applications.
Stat-X™
Anti-static silicone option for applications where static charge and dust attraction need additional consideration.
Printz™
General production formulation for reliable ink pickup, transfer and everyday pad printing use.
Need Help Selecting a Pad?
Not Sure if the L001 Is the Right Pad?
Send Deco Tech your artwork, part dimensions and machine information. We can review the print area and help determine whether the L001 or another silicone pad is better suited to the application.
