Deco Tech Silicone Pad Printing Pads
L002 Loaf Silicone Pad Printing Pad
The L002 is a compact loaf-style silicone pad printing pad with a recommended print area of 10 × 25 mm. Its smaller footprint makes it a useful profile for fine logos, text, identification marks and other compact industrial pad printing graphics.
10 × 25 mm
Recommended Print Area
74 mm
Overall Length
45 mm
Overall Width
44 mm
Overall Height

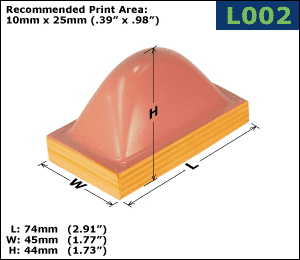

L002 Pad Profile
Compact Loaf Pad for Small Print Areas
The L002 measures 74 mm long, 45 mm wide and 44 mm high. The recommended artwork area is approximately 10 × 25 mm (.39 × .98 in.).
Its compact loaf-shaped silicone profile provides a controlled transfer surface for small graphics while requiring less overall machine clearance than larger loaf pad geometries. This makes the L002 a useful pad to evaluate for small components, compact housings, logos and identification marks.
Pad selection note:
Recommended print area is a starting point. Final pad
selection also depends on part geometry, artwork position,
print detail, pad compression, machine clearance and fixture
design.
Loaf Pad Geometry
Small Footprint for Fine Pad Printing
The L002 combines a relatively small overall pad size with an elongated 25 mm recommended print length, providing a useful profile for compact industrial printing applications.
01
10 × 25 mm Print Area
Sized for compact logos, text and other narrow artwork where a larger silicone pad may be unnecessary.
02
Compact Loaf Profile
The smaller silicone body provides an elongated contact profile while keeping overall pad dimensions compact.
03
Small Industrial Parts
A practical profile to evaluate for electronics housings, small plastic or metal components and other limited print areas.
L002 Pad Specifications
| Pad Model | L002 |
|---|---|
| Pad Shape | Loaf |
| Recommended Print Area | 10 × 25 mm (.39 × .98 in.) |
| Overall Length | 74 mm (2.91 in.) |
| Overall Width | 45 mm (1.77 in.) |
| Overall Height | 44 mm (1.73 in.) |
Silicone Options
Available in Deco Tech Silicone Formulations
Select the silicone formulation and hardness appropriate for the part geometry, artwork and production requirements of the printing application.
DuraPro™
Durable silicone formulation for general industrial pad printing and production applications.
Stat-X™
Anti-static silicone option for applications where static charge and dust attraction need additional consideration.
Printz™
General production formulation for reliable ink pickup, transfer and everyday pad printing use.
Need Help Selecting a Pad?
Not Sure if the L002 Is the Right Pad?
Send Deco Tech your artwork, part dimensions and machine information. We can review the print area and help determine whether the L002 or another silicone pad is better suited to the application.
