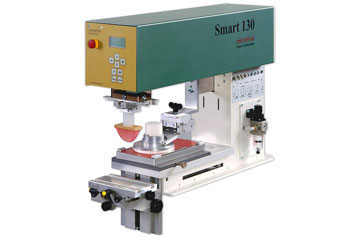

Smart 130 Pad Printing Machine

Smart-130

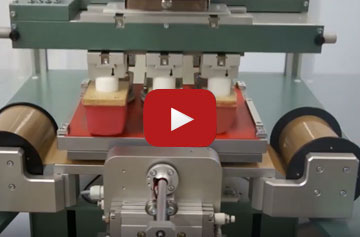

  • Smart Series Video
  • Machine Type: 1 color pad printing machine
  • Manufacturer: microPrint
  • Origin: Made in Switzerland
  • Download the Brochure
  • Request a Price Quote

Make the SMART choice with our 1 color pad printing machine model SMART 130. The SMART 130 pad printer is compact & economical and it features automatic pad cleaning device (optional) and a sealed ink cup up to 120mm, yielding a large print area of 4.3" Ø. The SMART SERIES pad print machinery is very accurate like a Swiss watch and is easy to use, fast and inexpensive to own.

FAST PRODUCTION SPEED - The SMART 130 pad print press is a real smooth operator with a top speed of 2,000 cycles per hour!

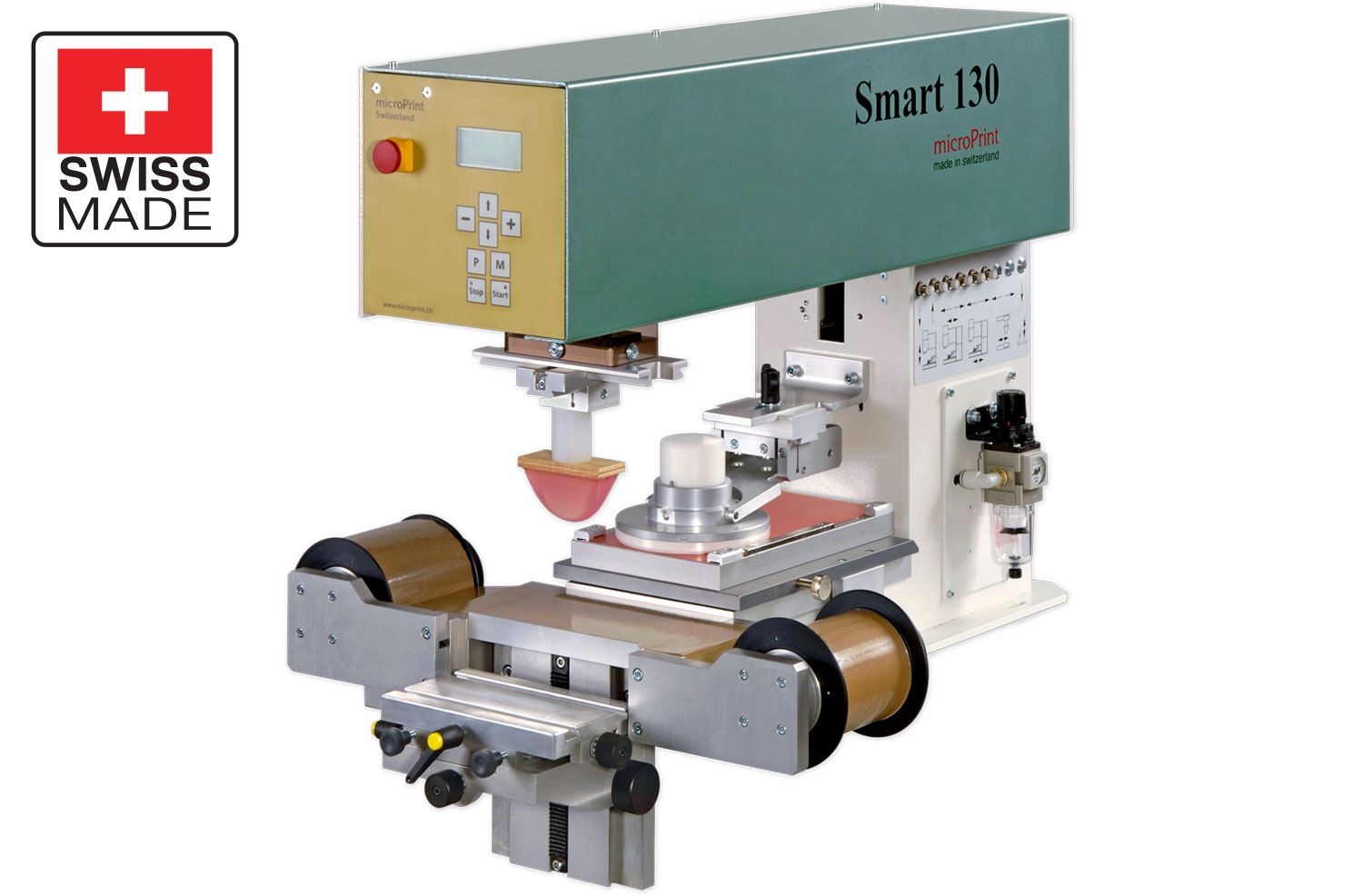

TAPE PAD CLEANING - Both the SMART SERIES machines are available with or without the tape pad cleaning device. The tape pad cleaning device is easily mounted and the control board has a quick connector and the necessary software is pre-loaded.

TOUCH PAD INTERFACE - The SMART SERIES pad printing machines are outfitted with touch pad membrane switch control panel with a multi-line LCD display for easy to understand instructions. The SMART controls include: single, double or multi-print, single or continuous cycle and set-up mode with individual adjustment of each step in the printing sequence.

LASER CUT & WELDED CONSTRUCTION - All microPrint machine frames are constructed of heavy steel panels that are laser cut and welded and this manufacturing technique ensures vibration-free operation and long-term reliability.

WORLD CLASS COMPONENTS - All microPrint machines feature top-quality components such as SMC pneumatics and precision linear guide bearings and all microPrint machines are built and certified to CE standards.

Call the experts at (714) 639-DECO to find out more.



Specifications

Technical DataSMART-130
Printing Capacity: up to 2,000 pph
Drive: Pneumatic
Printing Force: max. 45 Kg
Air supply 5-6 bar (87 psi)
Air Consumption: 1.8 L/cycle
Control system: micro-processor
Power connection: 110-240V 50-60 Hz.
Control voltage: 24 VDC
Weight: 45 Kg. (99 lbs.)
Plate size with ink cup: 130 x 250mm max.
Plate size with inkwell: 120 x 150mm max.
Plate Thickness: 0.5 or 10mm
Ink cup sizes (diameter):
2 x 56mm (2.20")
70mm (2.75")
86mm (3.38")
120mm (4.72")
Print sizes (diameter):
2 x 50mm (1.96")
60mm (2.36")
76mm (2.99")
110mm (4.33")
