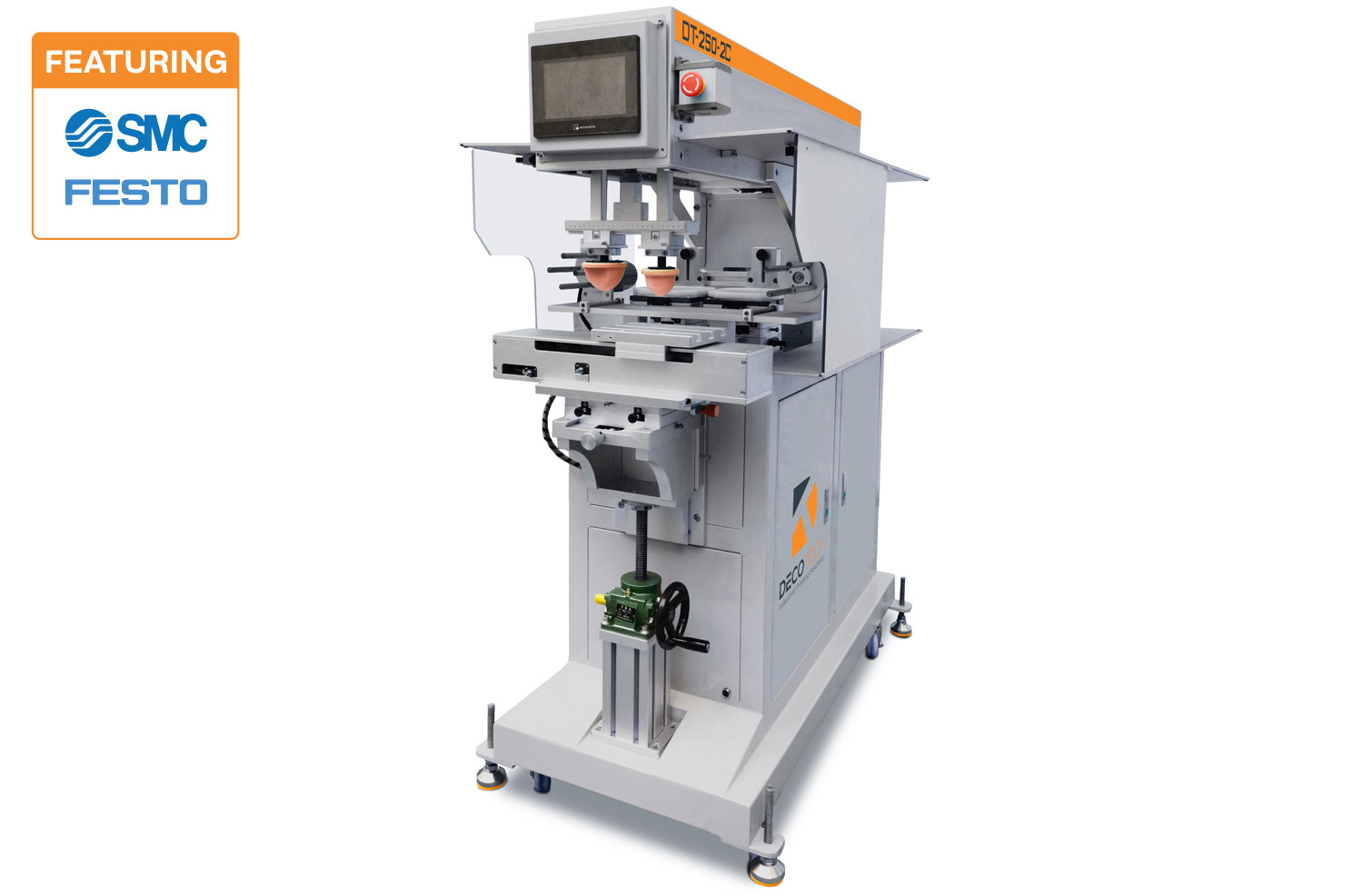

DT-200-2C

Technical Data DT-200-2C
Printing Capacity: up to 1,400 pph
Drive: Electro-Pneumatic
Printing Force: 1,559N
Pad stroke: 200mm (7.87")
Air supply 5 (87 psi)
Air consumption: 4-6 Kg/cm2
Control system: 12V PCB
Power connection: 110V 60Hz
Control voltage: 24 VDC
Weight: 170 kg (375 lbs)
Plate size with ink cup: 160 x 300mm (6.30"x11.81")
Plate Thickness: 0.5mm or 10mm
Ink cup sizes (diameter):
150mm (5.91")
Print sizes (diameter):
140mm (5.51")
