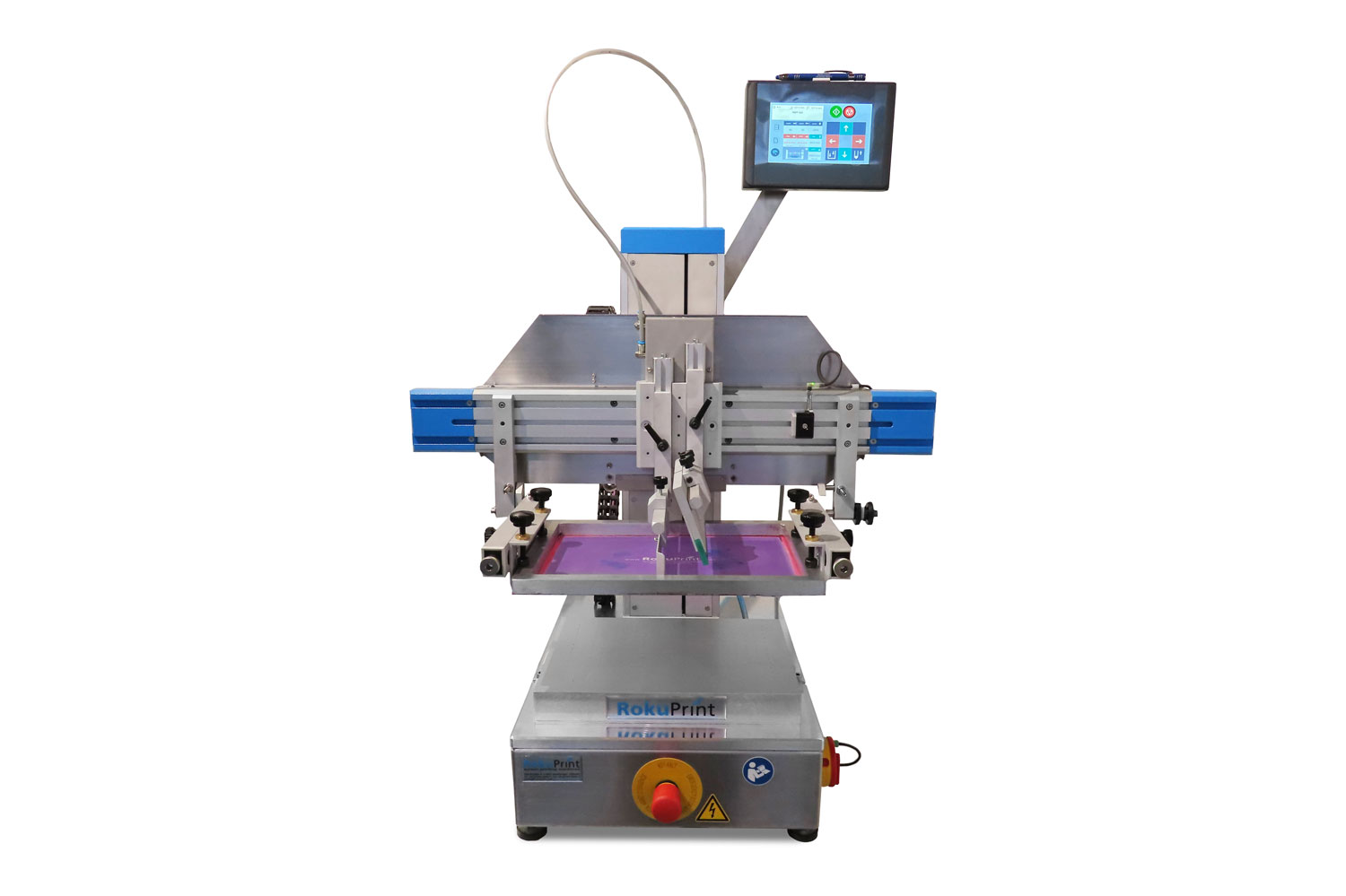

SD 07 Motor Driven Universal Screen Printing Machine
The SD 07 is the latest evolution in our line of precision German-built small-format universal screen printing machines, succeeding the SD 06 and the original SD 05 models. Designed for both flat objects (300 x 200mm) and round objects (120 x 220mm), the SD 07 offers enhanced performance and reliability
Machine Type: Semi-Automatic Screen Printing Press
Manufacturer: RokuPrint

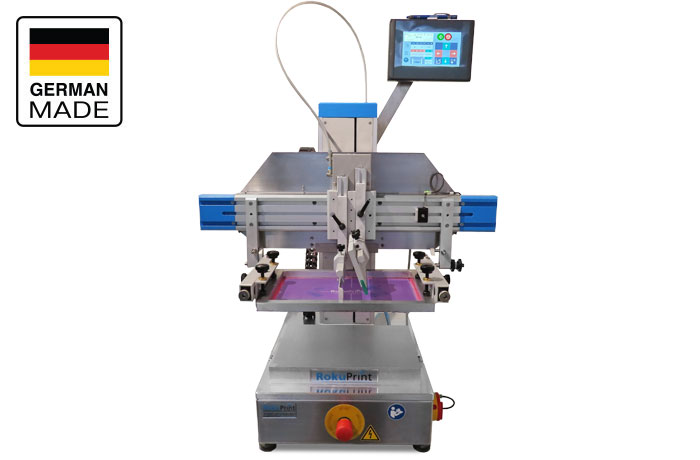

Origin: Made in Germany
Download the Brochure

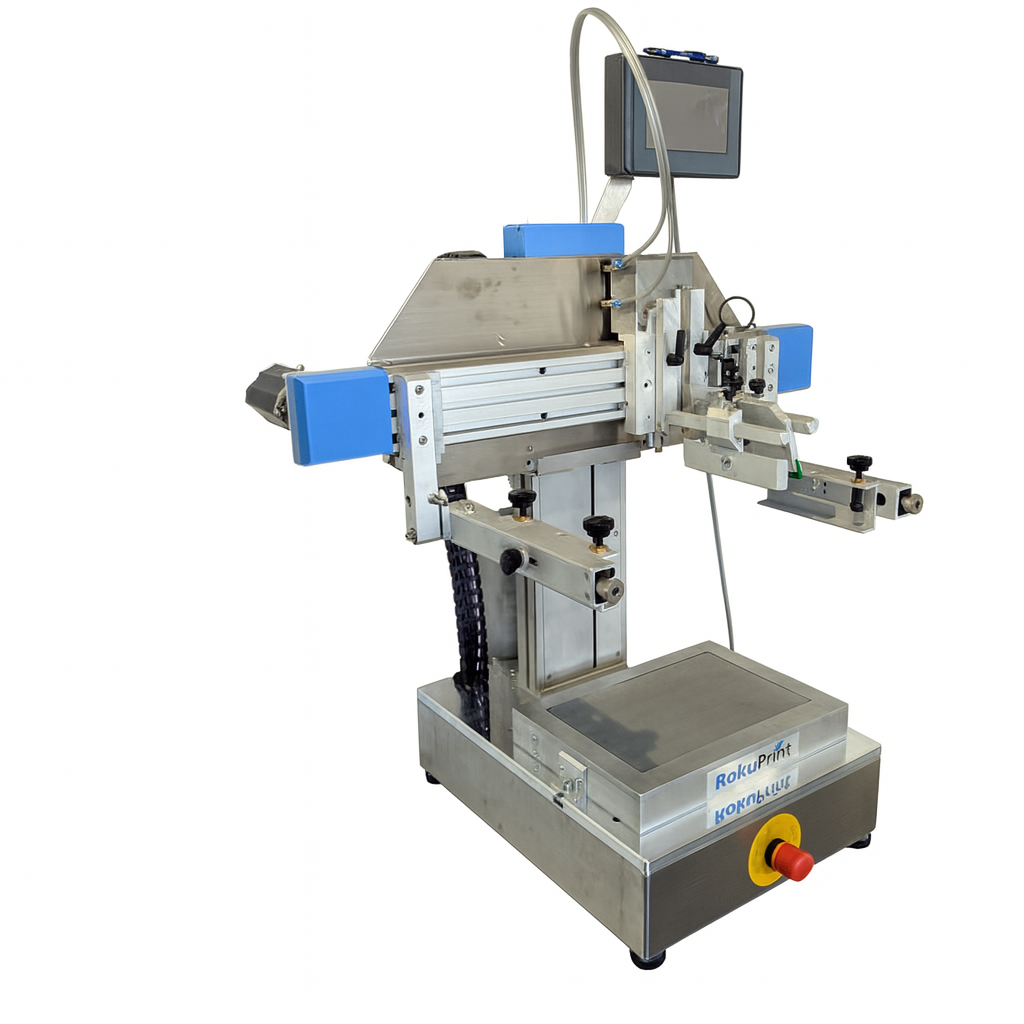

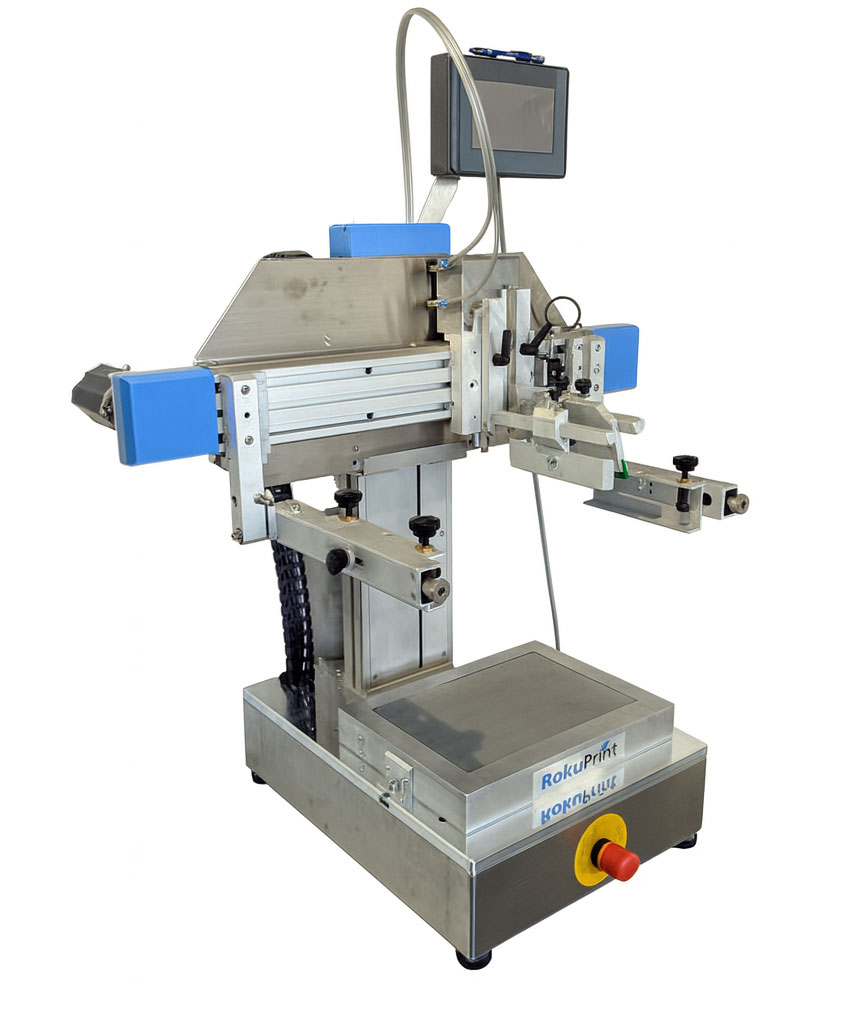

Building upon the robust foundation of the SD 06, the new SD 07 introduces advanced brushless motor technology, providing even greater precision and reduced maintenance requirements. This upgrade ensures consistent, high-quality printing results across various applications. The SD 07 is perfectly suited for printing onto both flat and round industrial products. It can be outfitted with a vacuum table for screen printing onto flat plastic or paper sheets, or with a rotary attachment to screen print onto round or curved objects such as pens, pencils, lighters, coffee mugs, aluminum water bottles, oil filters, and more. The vertical screen lift design keeps the ink consistently in the print zone, minimizing downtime and ensuring trouble-free production. Quick-change squeegee and flood bar systems require no tools and can be remounted in the same precise location, thanks to the included positive stop mechanism.
ADVANTAGES
- Latest brushless motor technology for optimal printing results and consistent quality
- Universally usable for flat or rotary printing (depending on configuration)
- Independent adjustment of print and flood speeds
- Precise and low maintenance due to proprietary guide elements
- Easy operation and quick setup of new programs via teach-in mode or direct entry
- Short setup time with memory function (105 individual programs)
- Adjustable screen off-contact distance in semi-automatic operation
- Quick and easy cleaning
- High printing performance and speed
- Space-saving and portable due to compact design

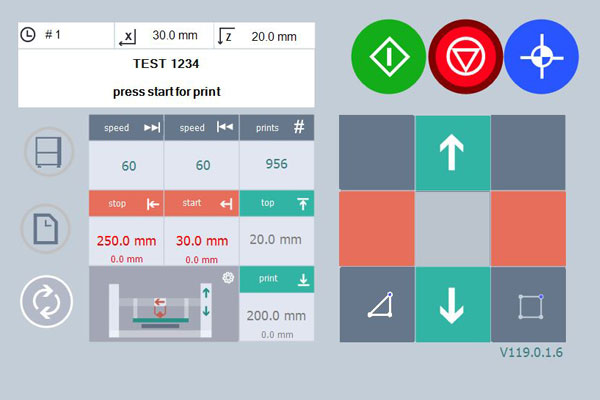

NEW FUNCTIONS
- Position display of X- and Z-axis
- Visualization of all program parameters
- Expanded memory (105 individual programs)
- Quick position correction via direct value entry
- Password protected screen lock
- Additional specialized functions
SPECIFICATIONS
| Technical Data | SD 07 |
|---|---|
| Drive System: | Controlled Brushless Motors |
| Control System: | 7" LED Display Controller |
| Display & Color Resolution: | 800 x 480 (WGVA) |
| Print Speed: | up to 1,800 pph |
| Print Head: | Pneumatic |
| Print size flat (L x W): | 300 x 200mm (11.8" x 7.9") |
| Print size round (D x H): | 120 x 220mm height (4.72" x 8.6") |
| Max Diameter for 360° Print | Approx. 40mm (1.57") |
| Screen frame: | Aluminum frames recommended, profile 25 x 25mm (.75" square) |
| Max. screen size (L x W): | 600 x 380mm (23.6" x 14.96") |
| Voltage: | 100-240V 50/60Hz. |
| Weight: | 60 Kg. (132 lbs.) |
| Dimensions: | 820 x 600 x 920mm (32.3" x 23.6" x 36.2") |
For more information or to request a quote, please contact our experts at (714) 639-DECO or email sales@decotechgroup.com
Note: The SD 07 builds upon the legacy of the SD 06 and SD 05 models, incorporating user feedback and technological advancements to deliver superior performance and versatility in screen printing applications.
