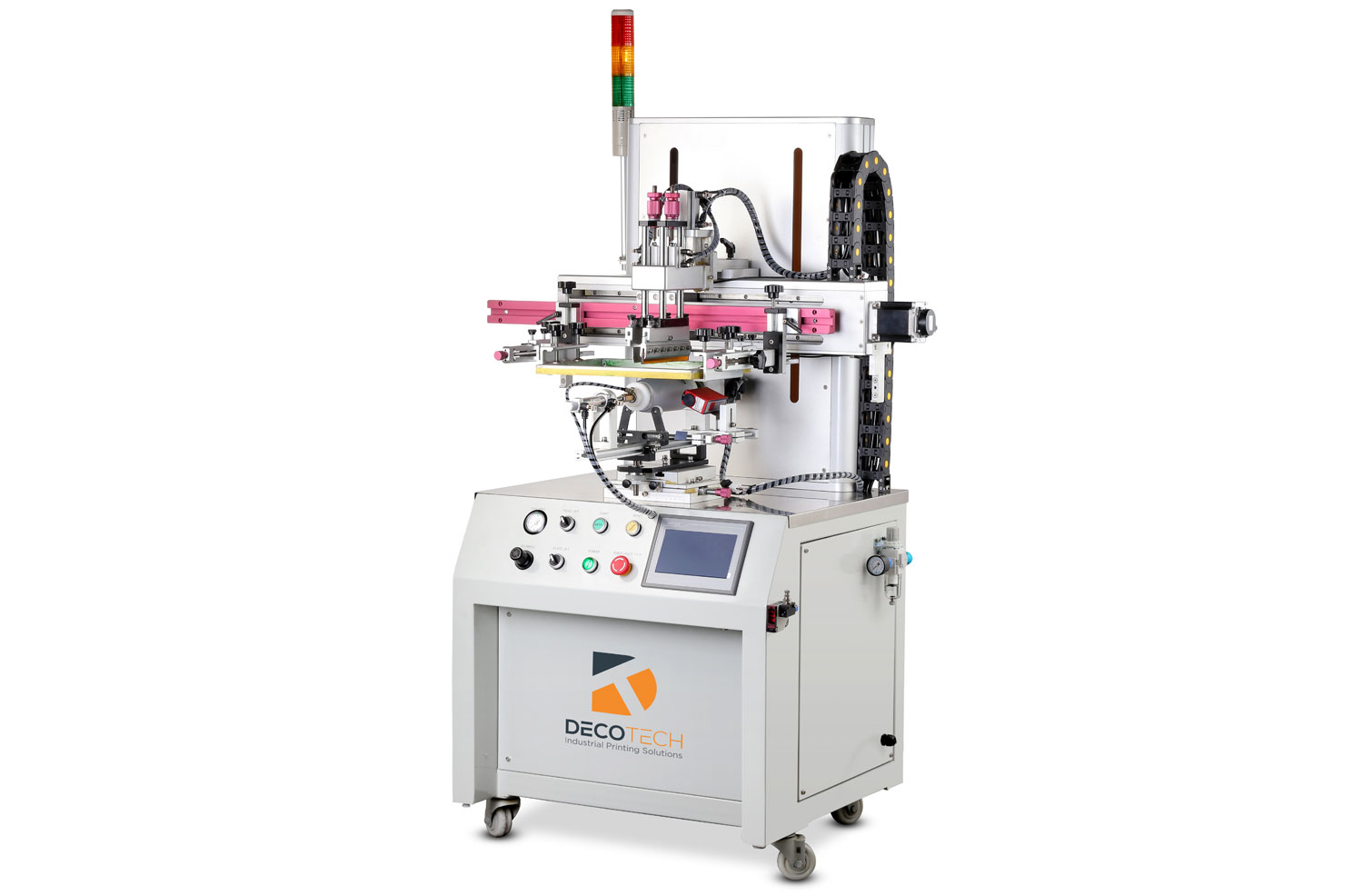

DT-400S Servo Semi-Auto Container Screen Printing Machine

4 color servo driven UV Container Screen Printing Machine
4 color servo driven UV Container Screen Printing Machine

Servo driven screen printing machine designed for screen printing round containers with or without registration lug.

  • Machine Type: Servo Driven Semi-Automatic Container Screen Printing Machine
  • Request a Price Quote

OVERVIEW

The DT-400S servo driven screen printing machine is designed for screen printing round containers that do or do not have a registration lug on the bottom.  The DT-400S servo driven screen-printing machine is used for decorating plastic bottles, aluminum sports water bottles, glass bottles/ containers, oil filters, and soft plastic tubes (when equipped with special mandrel tooling).  The DT-400S screen printing machine features quick & simple tooling changeovers and precise color re-registration that is done with a servo motor (bottles with registration lug) and/ or an optical sensor for alignment of the second or third colors on bottles (those without a registration lug).  All the machine’s controls are conveniently accessed from the touch screen, making this round container screen-printing machine easy to operate and the perfect all-around screen-printing press for your semi-automatic screen printing needs. This Deco Tech brand screen printing machine is backed with a one-year warranty against defects in manufacturing. Call the experts at (714) 639-DECO to find out more.

Features

  • Designed for round containers with or without a registration lug

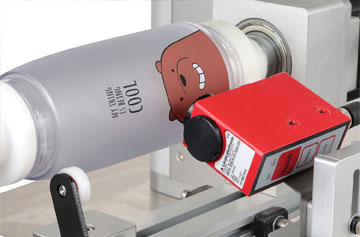

  • Accurate color re-registration ensured by optical sensor & servo motor

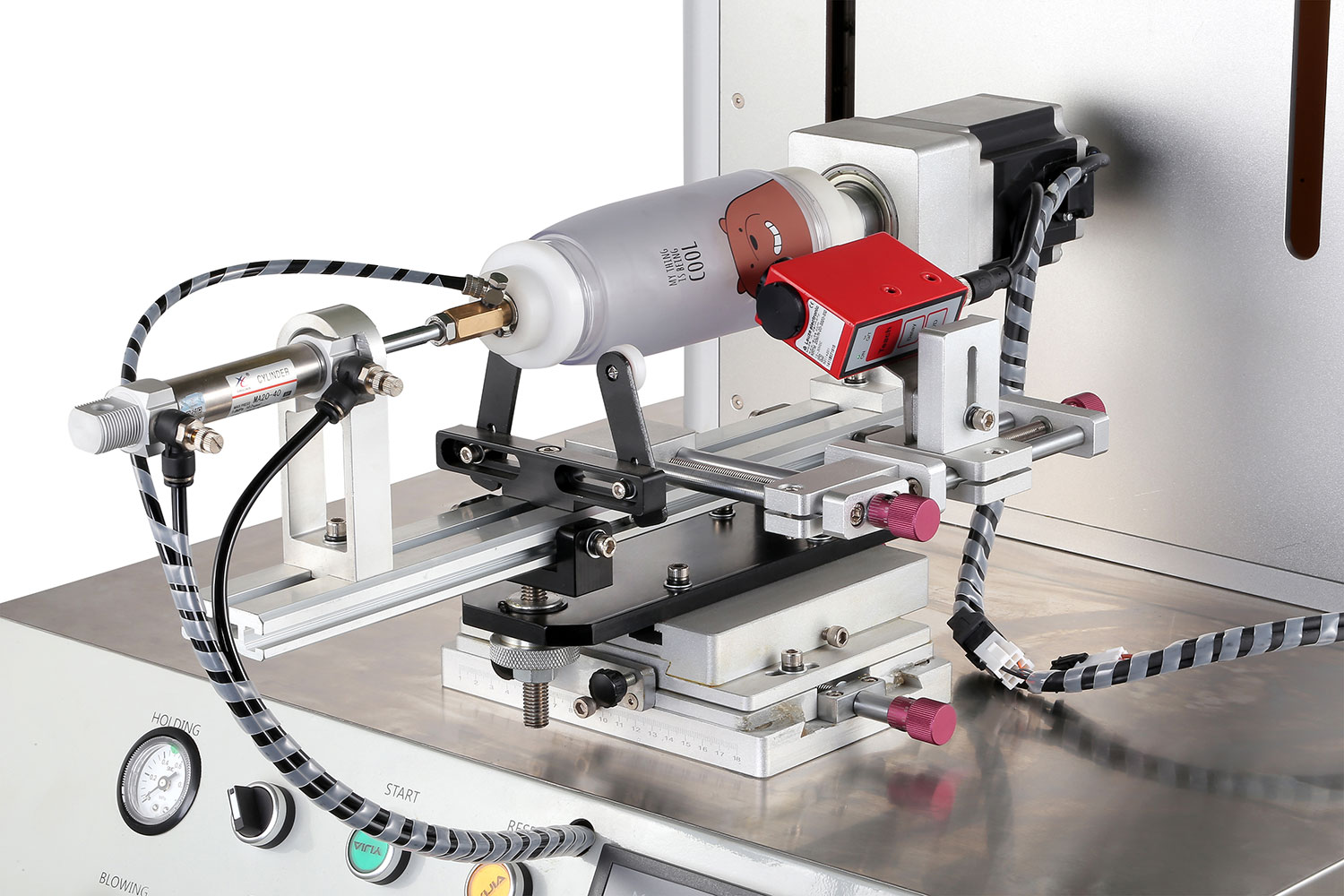

  • Equipped with motor registration device for bottles that have a registration lug
  • Servo motor driven print stroke and servo vertical stroke

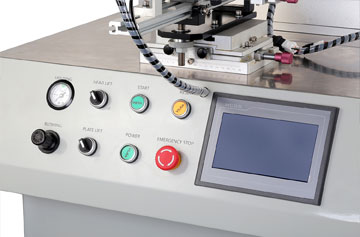

  • Mitsubishi PLC with touch screen
  • Quick & easy tooling changeovers
  • Synchronized bottle inflation system with pressure regulator
  • Floor levelers & casters
  • All pneumatic components are Festo and SMC brands
  • Complies with CE Safety Standards



Specifications

Technical DataDT-400S
Printing Capacity: Up to 2,000 cycles/hr
Print Shape: Round
Print Round Diameter: 7 to 110mm (0.276" to 4.33")
Drive: Servo Motor
Re-registration system: Motor registration & Optical sensor
Control System: Mitsubishi PLC & Touch Screen
Maximum Print Area (L x W): 350 x 220mm (13.8" x 8.7")
Max. screen frame size (L x W): 800 x 400mm (31.50" x 15.74")
Print stroke drive: Servo motor
Air Pressure Input: 5-7 bar (72-100 psi)
Electrical Source: 110/220V 50/60Hz 2.5KW
Weight: 200 kg (440.92 lbs)
Dimensions: 900 x 800 x 1,450mm (35.4" x 31.4" x 57")
