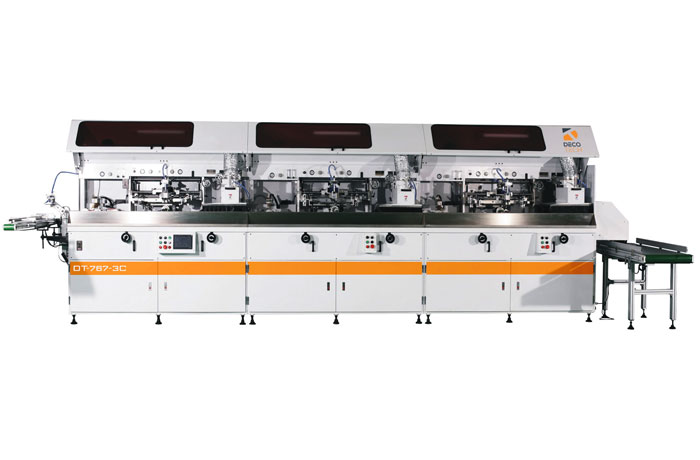

DT-767 1/6 1 to 6 Color Automatic UV Bottle Screen Printing Machine
We now offer two advanced systems for UV bottle screen printing: the proven DT-767 Series, and the next-generation DT-777, which features servo-driven controls for horizontal screen motion, bottle rotation, and the bottle lift system—for enhanced precision and flexibility.
Machine Type: 1 to 6 color automatic UV bottle screen printing machine.
767 Series Provides Robust, Accurate & High-Speed Performance with Mechanical Registration
The DT-767 Series is a fully automatic UV bottle screen printing system available in 1 to 6 color versions. Designed for round, oval, and flat plastic containers, the DT-767 uses a mechanical cam-driven walking beam transport system with DC motor control, delivering tight ±0.1mm color-to-color registration and clean, consistent prints. Its rugged steel frame ensures vibration-free operation and steady part handling.
With production speeds of up to 60 bottles per minute (3,600 per hour), and a complete line automation system—including flame treatment, LED UV curing, and part ejection—the DT-767 Series offers a high-output solution with fast changeovers and excellent print repeatability
777 Series Offers Robust, Servo-Driven Accuracy & Higher-Speed Performance & Faster Set-Ups Changeovers
The DT-777 Series builds on the strength of the 767 platform with advanced servo-driven technology for horizontal screen motion, bottle pick-up, rotation, and vertical lift. This servo-based architecture enables greater precision, smoother movement, and faster cycle times.
Unlike mechanical systems, the DT-777 eliminates the need for vacuum transport when lifting bottles to the print station. Instead, round containers are lifted directly using a servo-driven motion system and precisely placed into the base chuck and nose cone, ensuring accurate handling and simplified tooling changeovers. We’ve also removed the need for a traditional rack-and-gear system to match bottle diameters—simplifying setup and reducing mechanical wear points.
LED UV Curing Advancements
Both the DT-767 and DT-777 Series UV bottle screen printing machines now feature energy-efficient LED UV curing units, providing lower heat output, longer lamp life, and reduced maintenance compared to traditional Mercury vapor UV bulb systems
Fully Automated Workflow

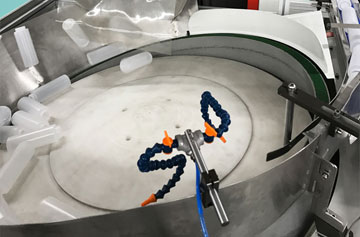

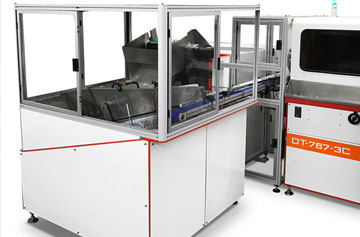

For higher throughput, both the DT-767 and DT-777 Series are available with an optional automatic bowl feeder to sort and load bottles into the machine. Containers are automatically flame treated (with optional corona or deionization), then pre-registered and guided through each print head and LED UV curing station. Finished parts are then automatically transferred to the outfeed conveyor for collection.
High-Quality Components = Maximum Uptime
Every DT-767 and DT-767 screen printing automation is engineered with premium-grade components to reduce downtime and simplify maintenance:
- Panasonic PLC & touchscreen controls (optional Allen-Bradley upgrade available)
- Motovario (European-built) heavy-duty DC drive motor (main drive)
- Mitsubishi Servo Motors & control cards on the DT-777 Series
- Festo and SMC brand pneumatic components throughout the Series
- Energy-efficient LED UV curing units for lower heat output and longer lamp life
- Lifetime sealed bearings for reduced service requirements
- No-part-no-print sensor prevents screen fouling and avoids production interruptions
DT-767 vs DT-777 Series Comparison Chart
| Feature: | DT-767 Series | DT-777 Series |
|---|---|---|
| Print Capability: | 1–6 Color Automatic UV Screen Printing | 1–6 Color Automatic UV Screen Printing |
| Bottle Types Supported: | Round, Oval, and Flat Containers | Round Containers Only |
| Transport System: | Mechanical Cam-Driven Walking Beam (DC motor-controlled) | Servo-Driven Horizontal Screen Motion & Bottle Handling |
| Bottle Lift & Rotation: | Mechanical with Vacuum Transport & One-Way Clutch | Servo-Lifted Bottles; No Vacuum Required; Direct Placement into Chuck |
| Registration System: | Mechanical Registration via Cam Timing | High-Precision Servo-Controlled Positioning |
| Print Speed | Up to 60 bottles per minute (3,600/hr.) | Up to 70 bottles per minute (4,200/hr.) |

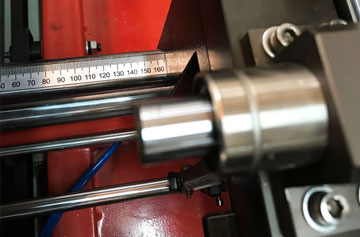

| Gear Diameter Matching: | Rack and Gear System for Diameter Matching | No Gear Required – Servo-Controlled Rotation |
| UV Curing: | LED UV Curing Units | LED UV Curing Units |
| Flame Treatment Options: | Standard Flame Treatment (Corona & Deionization Optional) | Standard Flame Treatment (Corona & Deionization Optional) |
| Construction: | Heavy-Duty Welded Steel Frame | Heavy-Duty Welded Steel Frame |
| Control System: | Panasonic PLC & Touchscreen (Allen-Bradley Optional) | Panasonic PLC & Touchscreen (Allen-Bradley Optional) |
| Changeover Time: | 1 to 1.5 Hours Per Color (After Sufficient Training) | 10 to 15 Minutes Per Color (After Sufficient Training) |
| Programming / Set-ups: | Mechanical Adjustments Only – No Programming | Servo Settings Stored & Recalled via Touchscreen – Minor Mechanical Adjustments |
| No-Part-No-Print Sensor: | Yes – Prevents ink build-up on the bottom of the screen when no part is present | Yes – Prevents ink build-up on the bottom of the screen when no part is present |
| Best For: | Reliable, repeatable performance with proven mechanical indexing | High-speed, precision printing for round containers with advanced servo control |
General Specifications
| Technical Data | DT-767 or DT-777 1 to 6 Colors Series |
|---|---|
| Round container dimensions: |
Diameter: 130mm max (5.12") Height: 260mm max (10.24") |
| Printing dimensions (LxW): | 260mm x 200mm Max (10.24" x 7.87") |
| Production speed: | Up to 4,200 pph |
| Air consumption: | 85 liter/ minute |
| Air pressure: | 5-7 bars |
| Power consumption: | 5.4KW (Each Color Station) |
| Electrical: | 220-480 V - 3 Phase, 50/60 Hz customer to specify |
| Technical Data | DT-767-1 |
|---|---|
| Weight: | 1,600 kg (3,527 lb) |
| Footprint (with bowl feeder): |
Length: 6,300mm (20'8") (20.67’) with bowl feeder & outfeed conveyor Width: 1,800 (5'11") Height: 1,700mm (5'7") |
| Technical Data | DT-767-2 |
|---|---|
| Weight: | 3,200 kg (7,055 lb) |
| Footprint (with bowl feeder): |
Length: 8,400mm (27'7") (27.75’) with bowl feeder & outfeed conveyor Width: 1,800 (5'11") Height: 1,700mm (5'7") |
| Technical Data | DT-767-3 |
|---|---|
| Weight: | 4,800 kg (10,560 lbs.) |
| Footprint (with bowl feeder): |
Length: 12,600mm (41.33') with bowl feeder & outfeed conveyor Width: 1,800 (5'11") Height: 1,700mm (5'7") |
| Technical Data | DT-767-4 |
|---|---|
| Weight: | 6,400 kg (14,080 lbs.) |
| Footprint (with bowl feeder): |
Length: 12,600mm (41.33') with bowl feeder & outfeed conveyor Width: 1,800 (5'11") Height: 1,700mm (5'7") |
| Technical Data | DT-767-5 |
|---|---|
| Weight: | 8,000 kg (17,600 lbs.) |
| Footprint (with bowl feeder): |
Length: 14,700mm (48.23') with bowl feeder & outfeed conveyor Width: 1,800 (5'11") Height: 1,700mm (5'7") |
| Technical Data | DT-767-6 |
|---|---|
| Weight: | 9,600 kg (21,120 lbs.) |
| Footprint (with bowl feeder): |
Length: 16,800mm (55.11') with bowl feeder & outfeed conveyor Width: 1,800 (5'11") Height: 1,700mm (5'7") |
