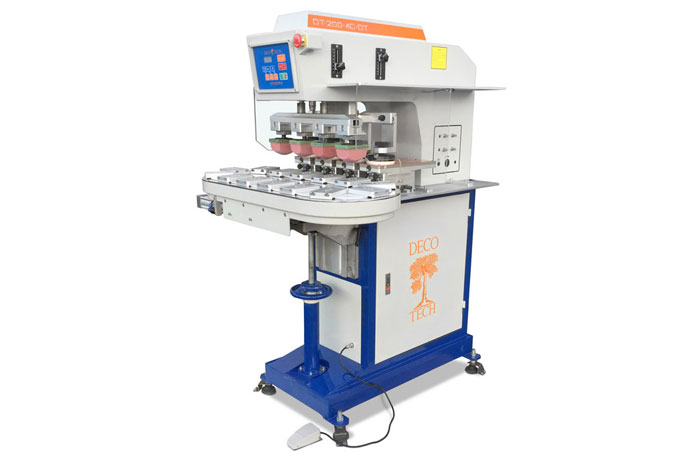

DT-200-4C-OT
4-Color Pad Printing Machine
An automated multi-color pad printing system built around a 14-station servo-driven oval track indexer for accurate, repeatable printing of small parts in one to four colors.
Built for Repeatable 4-Color Pad Printing
The DT-200-4C-OT combines four pad printing stations with an oval track indexing system to move parts accurately from one color station to the next. Mechanical cam locking at each print position helps stabilize the fixtures for consistent multi-color registration.
The machine is designed for manufacturers and decorators that need higher throughput than a manually transferred multi-color process while maintaining flexible tooling for a variety of small industrial and promotional components.
Production Features That Matter on the Press
14-Station Oval Indexer
Servo-driven indexing moves fixtures through four print stations for repeatable one to four-color production.
Cam-Locked Print Positions
Mechanical locking at each print station helps hold fixtures securely during the printing cycle.
Four Adjustable Clichés
Individual X, Y and rotational adjustment provides independent artwork alignment at each color station.
Closed Ink Cup System
Four sealed ink cup assemblies support cleaner operation and controlled ink management across all four colors.
Festo Pneumatics
Industrial pneumatic components provide smooth, consistent machine operation during extended production.
Adjustable Worktable
X, Y, Z axis rotation and vertical adjustments help accommodate different fixtures, parts and print positions.
Independent Alignment at Every Color

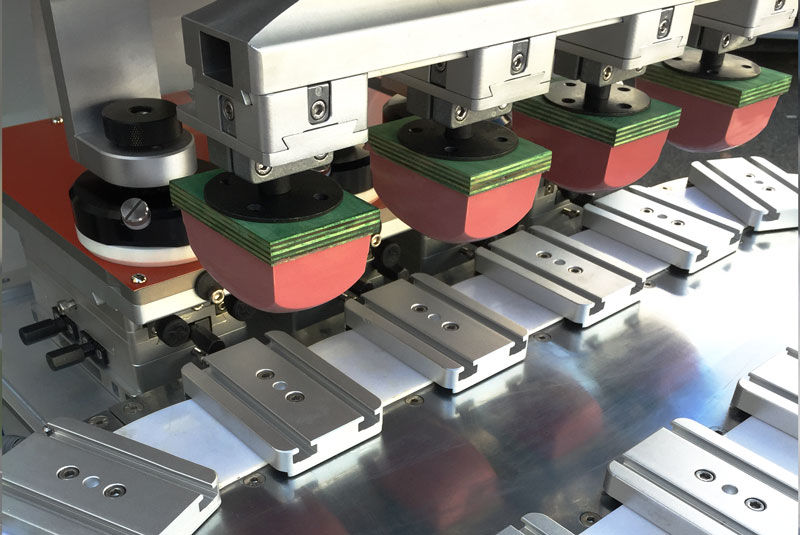

Each printing station has its own adjustable cliché holder so individual colors can be aligned directly on the machine. The oval indexing table carries the fixtures through each station while the cam-lock system stabilizes the part at the print position.
- Four independently adjustable print stations
- 100 × 300 mm cliché format
- X, Y and rotational cliché adjustment
- Height-adjustable worktable
- Compatible with photopolymer, steel and laser-etched clichés
Accessible Production Controls

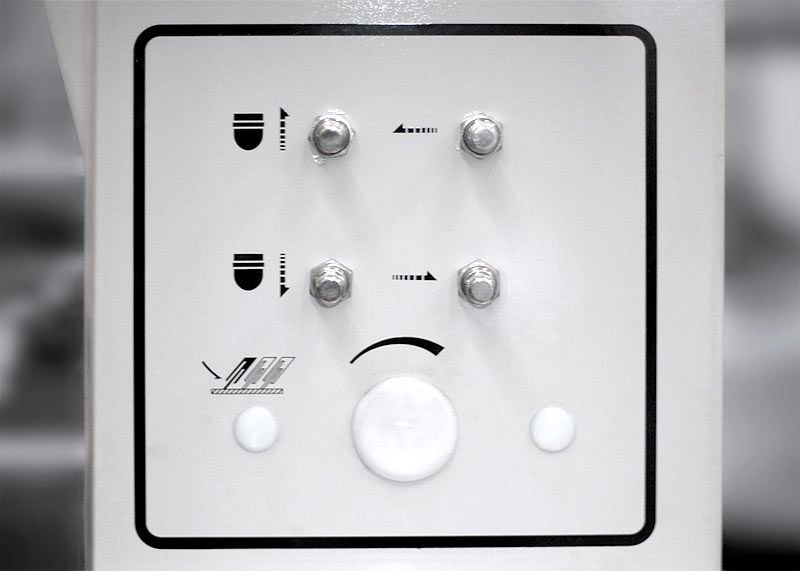

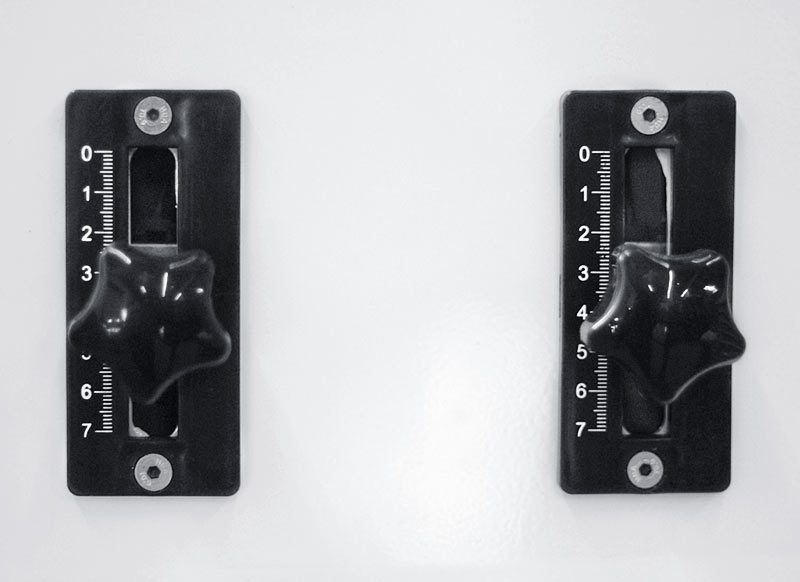

Critical machine adjustments are positioned for practical access during setup and production. Numerical references help operators reproduce stroke settings, while pneumatic flow controls provide adjustment of machine movement.
Click for full size
Click for full size
Designed for Small Multi-Color Parts
The oval-track configuration is well suited for parts that require multiple print colors and repeatable fixture positioning. Each part is securely nested in a dedicated fixture and indexed through the required printing stations.
Typical applications include promotional products and industrial components requiring repeatable one, two, three or four-color pad printing.
DT-200-4C-OT Specifications
| Printing Capacity | Up to 1,200 parts per hour |
|---|---|
| Color Capacity | 1 to 4 colors |
| Indexing System | 14-station oval track |
| Drive Type | Electro-pneumatic |
| Printing Force | 1,559 N |
| Vertical Pad Stroke | 200 mm (7.87 in.) |
| Cliché Size | 100 × 300 mm (3.94 × 11.81 in.) |
| Cliché Thickness | 0.5 mm or 10 mm |
| Ink Cup I.D. | 82 mm (3.23 in.) |
| Maximum Print Diameter | 75 mm (2.95 in.) |
| Air Supply | 5 bar (72.5 psi) |
| Air Consumption | 3 cfm @ 80 psi |
| Power Connection | 110 V / 60 Hz |
| Machine Weight | 220 kg (484 lb.) |
| Machine Origin | China |
Need Help Building the Complete Printing Process?
Send us your part, artwork and production requirements. Deco Tech can help determine the machine configuration, fixtures, silicone printing pads, clichés, inks and other tooling needed for the application.
