MaxCoat Automatic Emulsion Coater for Screen Printing Frames
Dual-Sided Coating Machines for Mesh Screens in Aluminum or Steel Frames

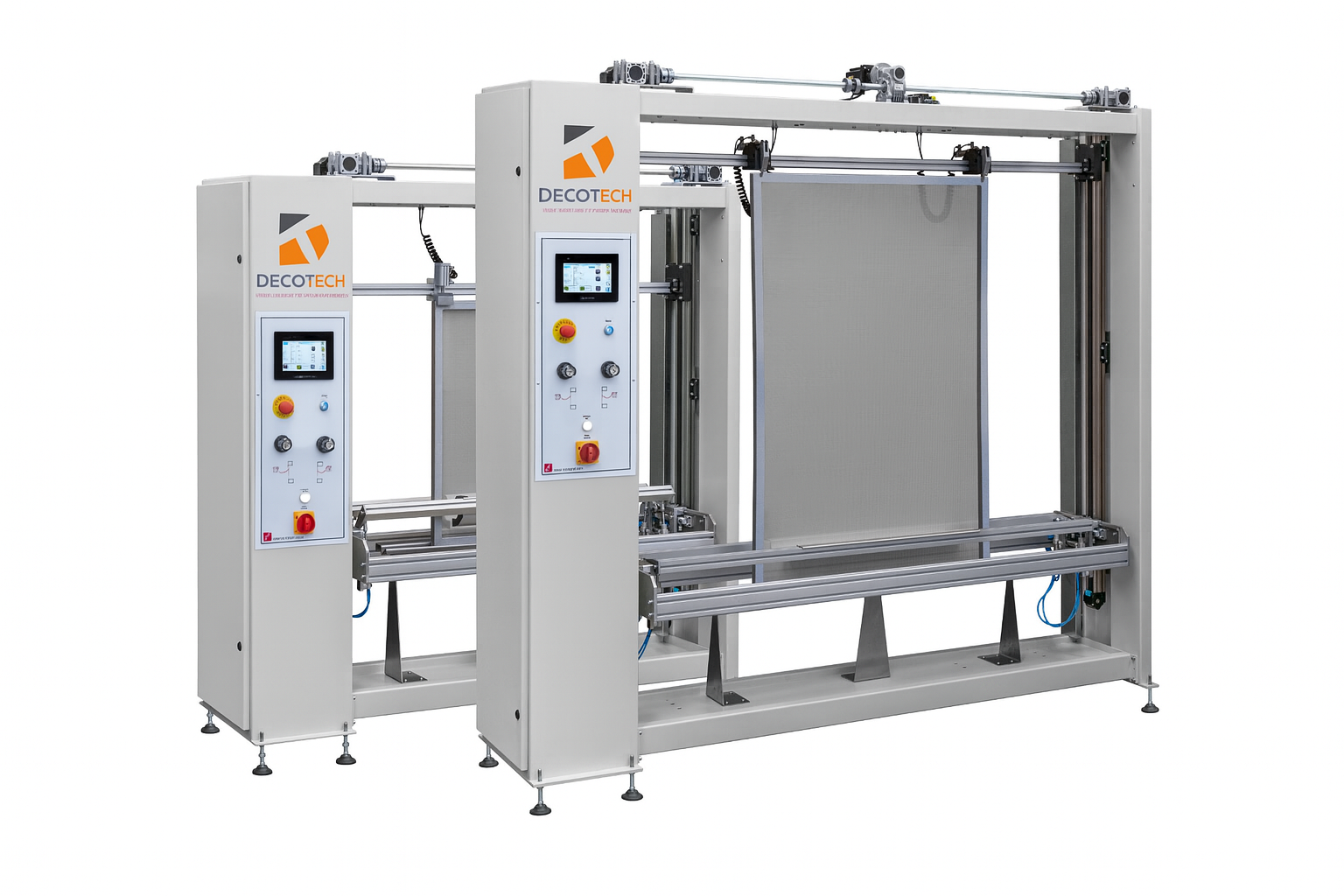

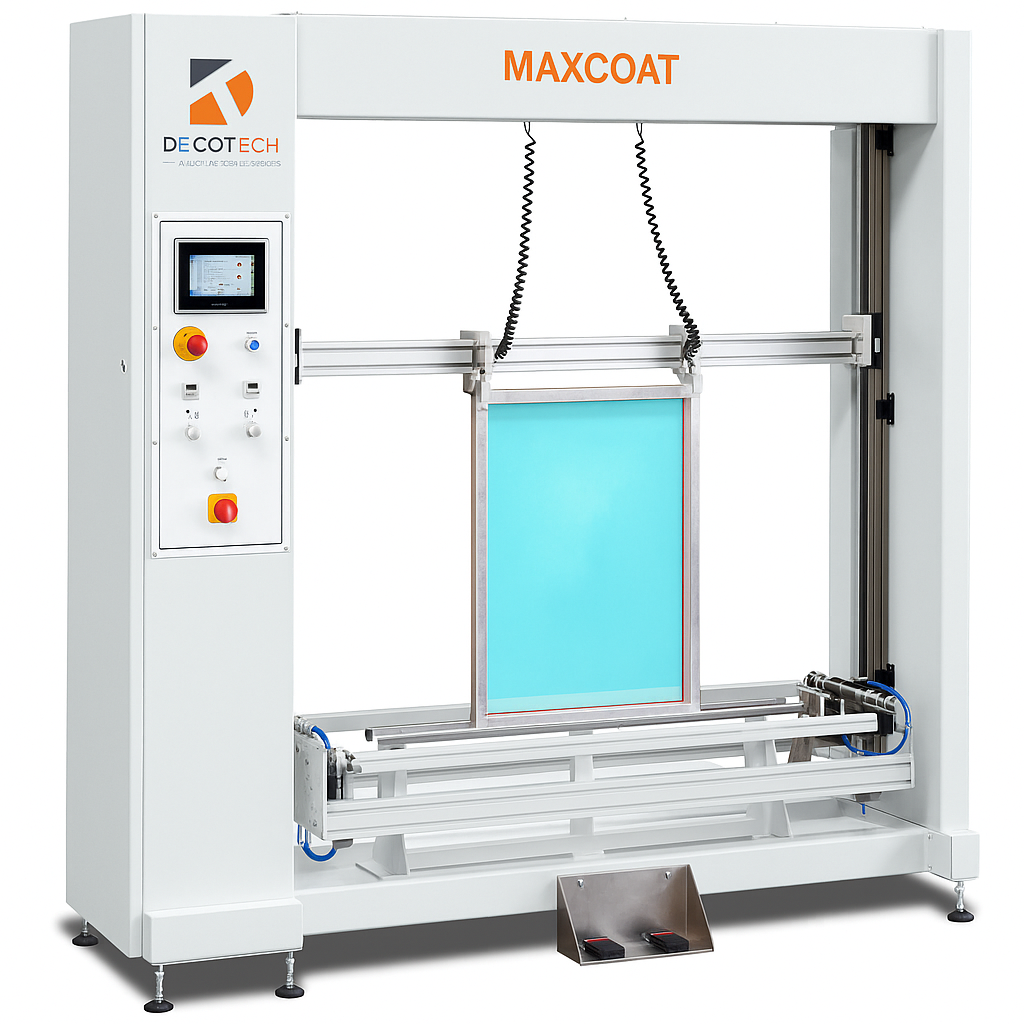

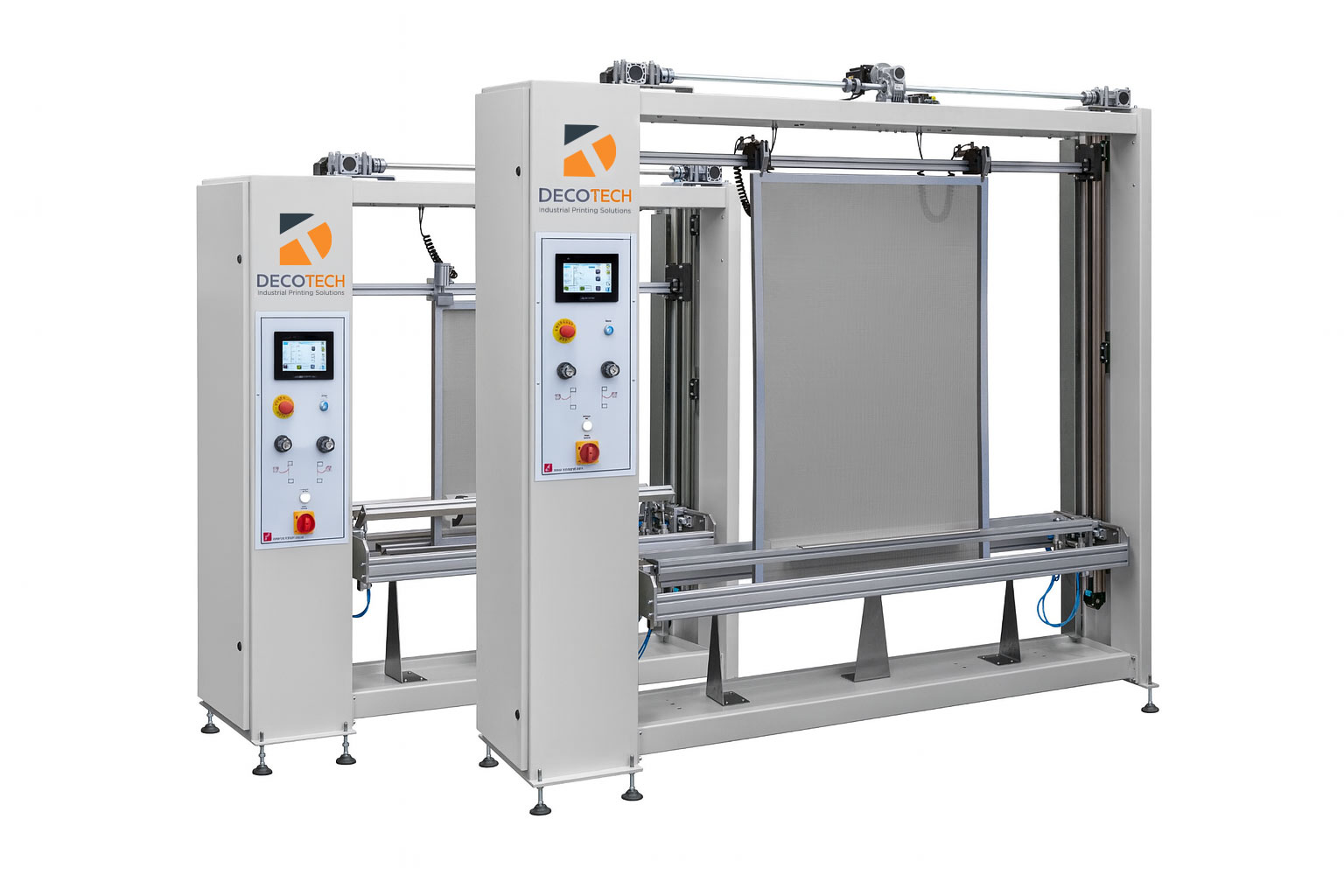

Introducing the MaxCoat Automatic Screen Printing Emulsion Coating Machine
Precision-Controlled Emulsion Coating for Professional Screen Printing
New for 2025 from Deco Tech. The MaxCoat automatic emulsion coating machine for screen printing is engineered for dual-sided coating of screen mesh with precision for aluminum or steel screen printing frames. With dual-sided coating capability, touchscreen control, and ±1 micron coating tolerance, these machines bring unmatched consistency and control to your pre-press workflow. Whether you’re preparing screens for textile, graphics, or industrial printing, MaxCoat delivers the precision needed for repeatable, high-quality prints.
Key Features of the MaxCoat Automatic Emulsion Coater
- Dual-Sided Emulsion Coating
Simultaneously coats both sides of your screen for optimal stencil build-up and uniformity. - Servo-Controlled Frame Adjustment
Automatically adjusts to frame height for precise, repeatable coating results. - 7-Inch Touchscreen Interface
Store up to 10 custom coating programs for fast job repeatability. - Compatible with Multiple Screen Sizes
Adjustable guides accommodate a wide range of screen printing frame dimensions. - Micron-Level Coating Tolerance
Achieves consistent emulsion thickness with ±1 µm accuracy. - Partial Coating Capability
Coat only specific areas of the screen to conserve emulsion and improve exposure control. - Built for Production
This emulsion coating machine features a heavy-duty aluminum structure and industrial-grade components to ensure long-term durability - Versatile Screen Coating Machine
Ideal for automating your screen-making process and replacing manual coating methods.
Why Coat Screens Automatically?
Manual emulsion coating can lead to inconsistent stencil thickness, wasted screens, and variable print results. With an automatic coater like the MaxCoat, you eliminate operator error and gain complete control over speed, pressure, and coverage—especially critical for fine meshes or high-end graphics. Dual-sided coating ensures better exposure accuracy and ink flow, reducing rework and press downtime.
Complete Your Screen Prep Workflow
Pair your MaxCoat emulsion coater with Deco Tech’s LED exposure units, stretching tables, and screen printing machines for a fully optimized screen-making process.
Ready to improve screen quality and consistency?
Contact us today at 714-639-DECO or sales@decotechgroup.com for a quote or demo.
Available MaxCoat Models
| MaxCoat Model | MaxCoat ONE | MaxCoat PRO | MaxCoat ELITE | MaxCoat ULTRA |
|---|---|---|---|---|
| Model Number | MC-1080 | MC-1010 | MC-1210 | MC-1515 |
| Max Frame Size (W × H) mm / in |
635 × 1020 mm (25" × 40") |
762 × 1020 mm (30" × 40") |
762 × 1220 mm (30" × 48") |
965 × 1520 mm (38" × 48") |
| Power Output kW |
1 | 1 | 1 | 1 |
| External Depth mm |
630 | 630 | 630 | 630 |
| External Width mm |
1950 | 1950 | 2350 | 2650 |
| External Height mm |
1950 | 1950 | 2150 | 2450 |
| Weight kg / lbs |
220 / 485 | 240 / 529 | 280 / 617 | 350 / 772 |
| Voltage V |
220 | 220 | 220 | 220 |
| Shipping Dimensions (W × D × H) mm |
2000 × 800 × 2050 | 2100 × 800 × 2100 | 2250 × 800 × 2250 | 2300 × 800 × 2350 |
Machine Type: Automatic Screen Frame Emulsion Coater
Manufacturer: Deco Tech
Origin: Engineered by Deco Tech, built in Europe using world-class components for long-lasting industrial performance.
