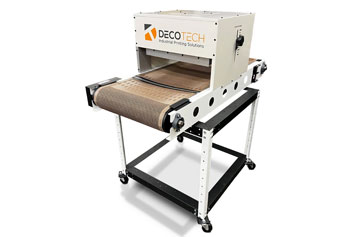

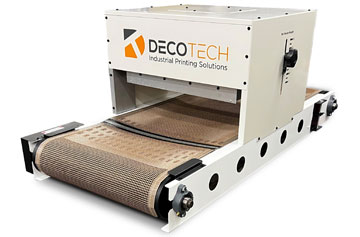

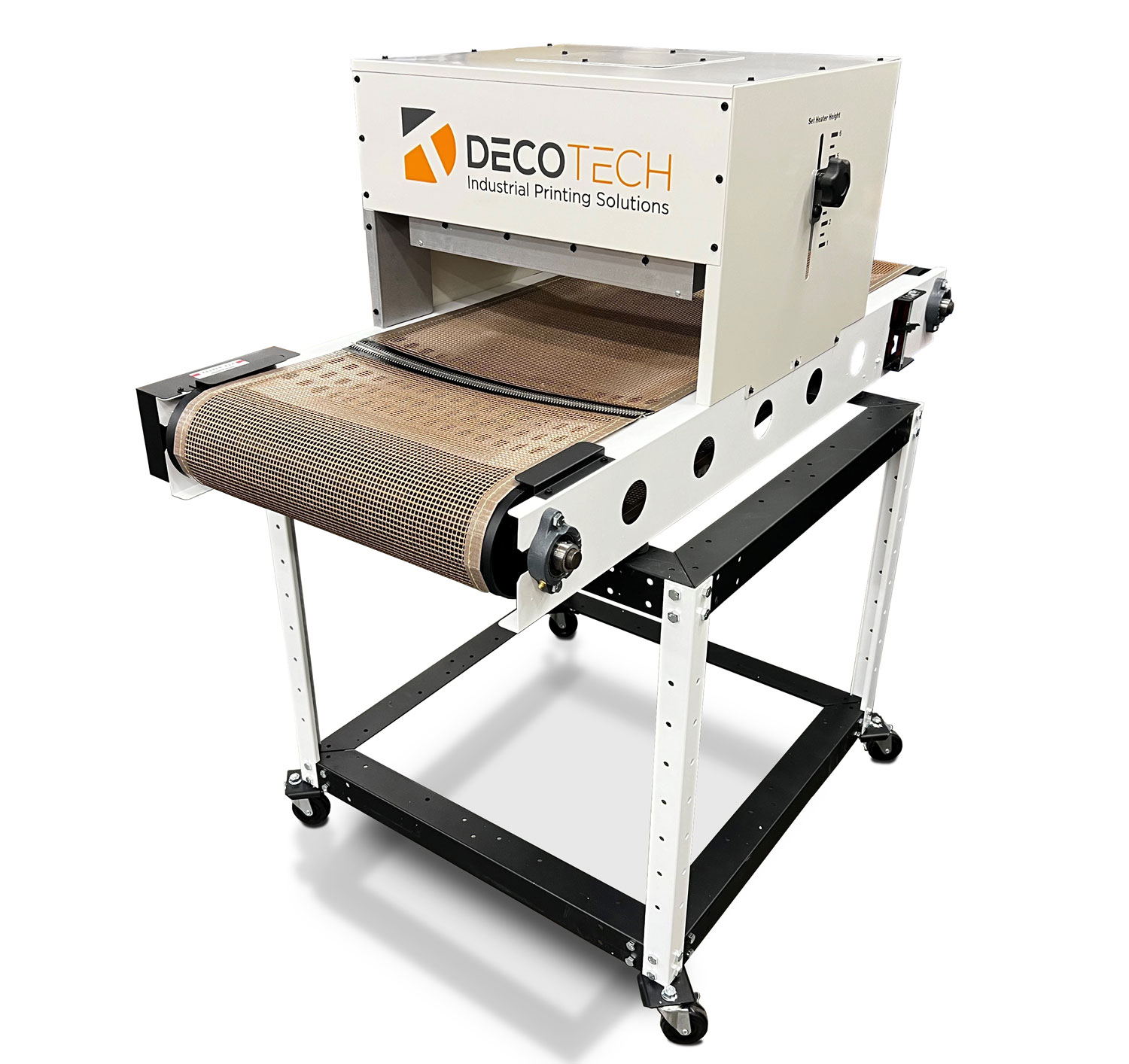

DT-100-IR - Infared Drying Conveyor
Compact IR Drying Solution for Screen and Pad Printing Applications
DT-100-IR Infrared Drying Conveyor – Compact, Powerful, and Production-Ready
The Deco Tech DT-100-IR is a compact, high-efficiency infrared drying conveyor engineered for fast, reliable curing of pad printed parts. With a footprint of less than 8 square feet, this smart and space-saving solution fits seamlessly alongside your molding press or pad printing line—making it ideal for tight production spaces.
The system features an 18" (460 mm) wide Teflon-coated fiberglass belt equipped with a straight-tracking mechanism to ensure smooth, accurate movement. Built for precision and flexibility, the DT-100-IR includes individual controls for belt speed, temperature, heater height, and heater tilt angle—essential for accommodating angled or irregularly shaped parts.
At the heart of the system is a dense coil-pattern infrared heater delivering 6.35 watts per square inch, paired with heater shields to eliminate hot and cold spots. This ensures even, consistent heat distribution and fast, effective drying results.
Built to last, the infrared heating element is backed by an industry-leading 15-year warranty, while all additional components are covered under a 1-year warranty.
Key Features of the DT-100-IR Infrared Drying Conveyor
- Compact Footprint
Takes up less than 8 sq. ft. of floor space—ideal for positioning next to pad printing or molding stations. - 18" Wide Teflon-Coated Conveyor Belt
Durable fiberglass mesh belt with non-stick surface and smooth straight-tracking system for consistent part movement. - Independent Belt Speed & Heat Controls
Adjustable belt speed and precision temperature control for optimized curing of different substrates and ink systems. - Adjustable Heater Height & Tilt Angle
Fine-tune heater position and angle for curing flat or angled parts with maximum efficiency. - High-Performance Infrared Heating Element
Dense coil pattern delivers 6.35 watts per square inch, eliminating uneven curing and hot/cold zones. - Built-In Heater Shields
Enhances thermal efficiency and protects surrounding areas from excess heat. - Long-Term Durability
Backed by a 15-year warranty on the IR heater and 1-year warranty on all other components.
Let’s Get Your Line Running Hot—Not Slow
Whether you're curing pad printed parts, molded components, or specialty substrates, the DT-100-IR delivers fast, consistent, and space-efficient infrared drying performance.
📞 Call the experts at Deco Tech Group today at (714) 639-DECO or visit www.decotechgroup.com to request a quote and see how this compact powerhouse can streamline your production.
SPECIFICATIONS
The DT-100-IR is a compact infrared drying conveyor engineered for pad printed part curing with precision and consistency. It features adjustable heat, belt speed, and heater position controls—all within a rugged, space-efficient design ideal for integration beside your production line.
| Technical Data | DT-100-IR |
|---|---|
| Belt Speed: | 4–6 fpm |
| Drive: | Electro-mechanical |
| Main Voltage (US): | 120V (NEMA 5) 6.5A or 208/240V (NEMA 6) 12.5A |
| Machine Weight: | 200 lbs. |
| Machine Dimensions (L × W × H): | 46” × 24” × 24” |
| Wattage: | 1,625 Watts (1.625 kW) |
| Belt Width: | 18” |
| Conveyor Length: | 46” |
| Tunnel Length: | 18” |
Machine Type: Compact Drying Conveyor
Origin: American Made
