DT-175-1C One Color Pad Printing Machine
DT-175-1C Pad Printing Machine – Mid-Sized, Reliable, and Easy to Use
The DT-175-1C is Deco Tech’s mid-sized 1-color pad printing machine, offering the perfect balance of affordability, performance, and ease of use. Designed for straightforward setup and day-to-day reliability, this system is well-suited for manufacturers requiring consistent results in medium-volume production environments.

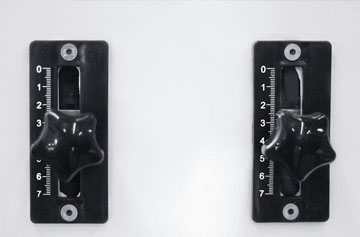

The machine features a membrane switch control panel on the front faceplate for simple operation and quick mode selection. Numerically calibrated stroke length controls are located on the right side of the machine, allowing easy fine-tuning of pad-to-plate and pad-to-part distances.
Heavy-Duty Construction & Smart Design
The DT-175-1C is built on a welded steel frame for long-lasting durability. It includes adjustable floor levelers and a height-adjustable T-slot worktable for fast fixture setup and stable operation. The integrated base also doubles as a convenient storage cabinet for inks, ink cups, mixing tools, and other supplies.
Precision Printing Capabilities
This model is equipped with a single sealed ink cup (see technical specs for available sizes) and one X/Y/R adjustable cliché holder for precise image alignment. The DT-175-1C supports multiple cliché & pad printing plates types, including:
- Photopolymer plates
- Thin steel (0.5 mm)
- Thick steel (10 mm)
- Laser-etched plates
Full Support from Deco Tech
As part of the DT Series, the DT-175-1C is backed by Deco Tech’s complete line of pad printing consumables, technical support, and operator training services. It comes with a one-year warranty against manufacturing defects.
Key Features of the DT-175-1C Pad Printing Machine
- Microprocessor-Controlled PCB System
Ensures consistent, repeatable performance with reliable control circuitry. - Membrane Switch Control Panel with LCD Display

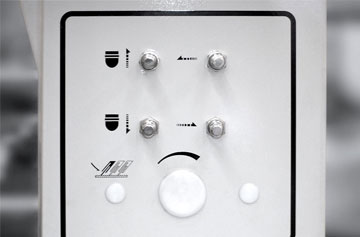

Easy-to-use operator interface with a clear display for quick mode changes and diagnostics. - Premium Pneumatics by Festo and SMC
Outfitted with trusted pneumatic components for smooth, durable operation. - Heavy-Duty Steel Machine Base with Integrated Storage
Welded steel construction with built-in cabinet space for ink, tools, and consumables. - Height-Adjustable Worktable with X/Y and Skew Adjustment
Precision alignment capabilities to accommodate a variety of part sizes and shapes. - T-Slot Table for Fast Tooling Setup
Enables quick fixture installation and changeover for maximum efficiency. - Easily Adjustable Pad Stroke Lengths
Numerical calibration allows quick tuning of pad-to-part and pad-to-plate distances. - OSHA-Compliant Safety Features
Includes emergency stop circuit and full guarding to ensure operator protection. - CE Certified
Built to meet international safety and performance standards. - Fully Equipped for Operation
Comes with a foot switch, tool kit, and operator manual—ready for production on day one.
Take Your Print Quality to the Next Level
- The DT-175-1C is the perfect mid-sized solution for manufacturers needing consistent, one-color pad printing with speed, precision, and ease of use. Built to perform and backed by Deco Tech’s expert support, this machine is ready to keep your production running smoothly.
📞 Call Deco Tech Group today at (714) 639-DECO to request a quote or speak with a pad printing specialist about how the DT-175-1C can fit into your workflow.
DT-175-1C Pad Printing Machine – Technical Specifications
The DT-175-1C is a mid-sized, electro-pneumatic 1-color pad printer designed for efficient production and easy setup. Below are the detailed specifications for this versatile machine.
| Technical Data | DT-175-1C |
|---|---|
| Printing Capacity: | Up to 1,620 parts per hour (1 color) |
| Drive Type: | Electro-pneumatic |
| Printing Force: | 1,870 N |
| Air Supply: | 5–6 bar (72–87 psi) |
| Air Consumption: | 4–6 kg/cm² |
| Control System: | 12V PCB microprocessor |
| Power Connection: | 110V / 220V, 50/60 Hz |
| Control Voltage: | 24 VDC |
| Machine Weight (Net/Gross): | 120 kg (265 lbs) / 180 kg (397 lbs) |
| Plate Size (with Ink Cup): | 130 × 270 mm |
| Vertical Pad Stroke: | 80 mm (3.14") |
| Horizontal Pad Stroke: | 175 mm (6.88") |
| Plate Thickness: | 0.5 mm or 10 mm |
| Ink Cup Size (ID): | 120 mm (4.72") |
| Max Print Diameter: | 110 mm (4.33") |
Machine Type: 1 color Semi-Automatic Pad Printing Machine
