DT-200-6C-SS
Large image 120mm ink cup pad printing machine with 6 colors and servo linear shuttle.

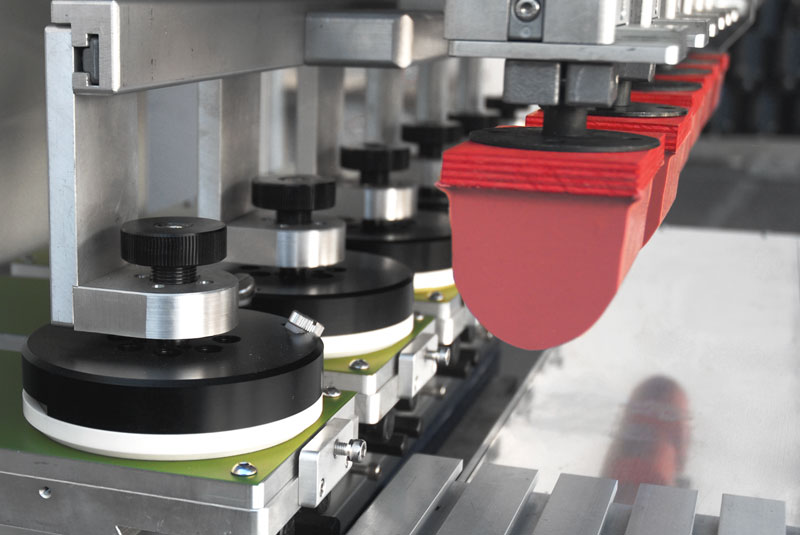

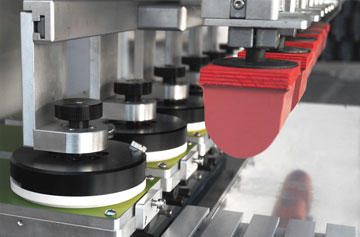

The DT-200-6C-SS pad printing machine is equipped with a servo-driven linear part shuttle to pad print 1 to 6 colors. It features a programmable touch screen control panel, and all functions are easily programmed, and the pad stroke controls are easily accessible on the right side of the machine with numerical calibration. The DT-200-6C-SS pad printer comes with a solid built welded steel machine base with adjustable floor levelers and a height adjustable worktable. This DT-200-6C-SS is equipped with six x 120mm ink cups and with six individual X/Y/R adjustable cliché holders for precise alignment of artworks. The clichés can be photo polymer, thin steel or laser etched varieties and Deco Tech provides a full array of pad printing consumable supplies, technical support & product training for our DT SERIES of pad printing machinery. This DECO TECH pad printing machine is backed with a one year warranty against defects in manufacturing. Call the experts at (714) 639-DECO to find out more.
Advantages
- Mitsubishi PLC controlled with Weinview touch screen
- Programmable servo indexed part shuttle
- Festo or SMC brand pneumatics
- Easily accessible pad stroke adjustments
- X/Y/R/Z worktable
- 6 x X/Y/R cliché adjustment
- Smooth & quiet machine performance
- Fully guarded to OSHA standards
Specifications
Technical Data | DT-200-6C-SS |
---|---|
Printing Capacity: | up to 680 pph |
Drive: | Electro-Pneumatic |
Printing Force: | 1,559N |
Pad stroke: | 200mm (7.87") |
Air supply | 5 (72.5 psi) |
Air consumption: | 3 cfm @ 80 psi |
Control voltage: | 24 VDC |
Weight: | 155 kg (342 lbs) |
Plate size with ink cup: | 130 x 300mm (5.12"x11.81") |
Plate Thickness: | 0.5mm or 10mm |
Ink cup sizes (diameter): 120mm (4.72") |
Print sizes (diameter): 110mm (4.33") |
