Built for High-Volume Printed Electronics Production

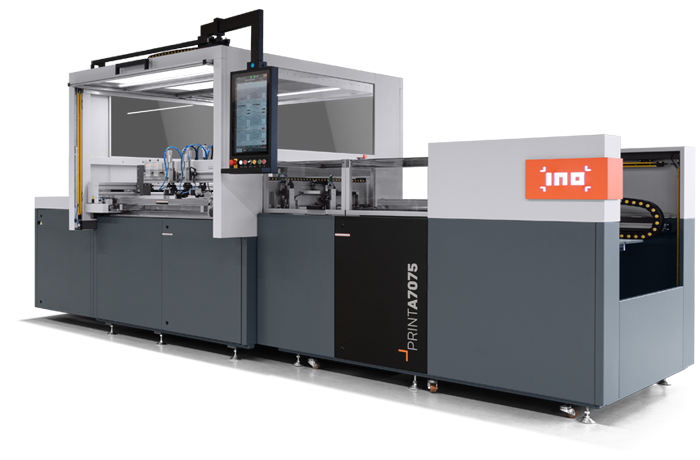

The INO A7 is a high-speed, precision sheet-fed screen printing machine purpose-built for the demands of advanced printed electronics manufacturing. As the core print module within the fully integrated INO PE Line A, the A7 enables consistent multilayer registration, minimal waste, and smart factory integration for high-tech applications like RFID/NFC, sensors, touch interfaces, and printed circuits.

Equipped with camera-based auto-registration, a substrate cleaning unit, and advanced screen positioning, the A7 delivers micron-level accuracy for complex circuit builds on both rigid and flexible substrates. Designed for 24/7 production environments, the A7 reduces material waste, improves setup efficiency, and offers seamless integration with IR/UV dryers, conveyors, and automated stacking.

The A7 is designed for mass production environments where precision, efficiency, and material control are essential. It excels in manufacturing high-tech components like RFID antennas, biosensors, printed circuits, flexible displays, and other conductive-layer applications. Whether you're printing on PET, PI, or other technical films, the A7 ensures excellent ink laydown, reduced waste, and traceable quality from sheet to sheet.

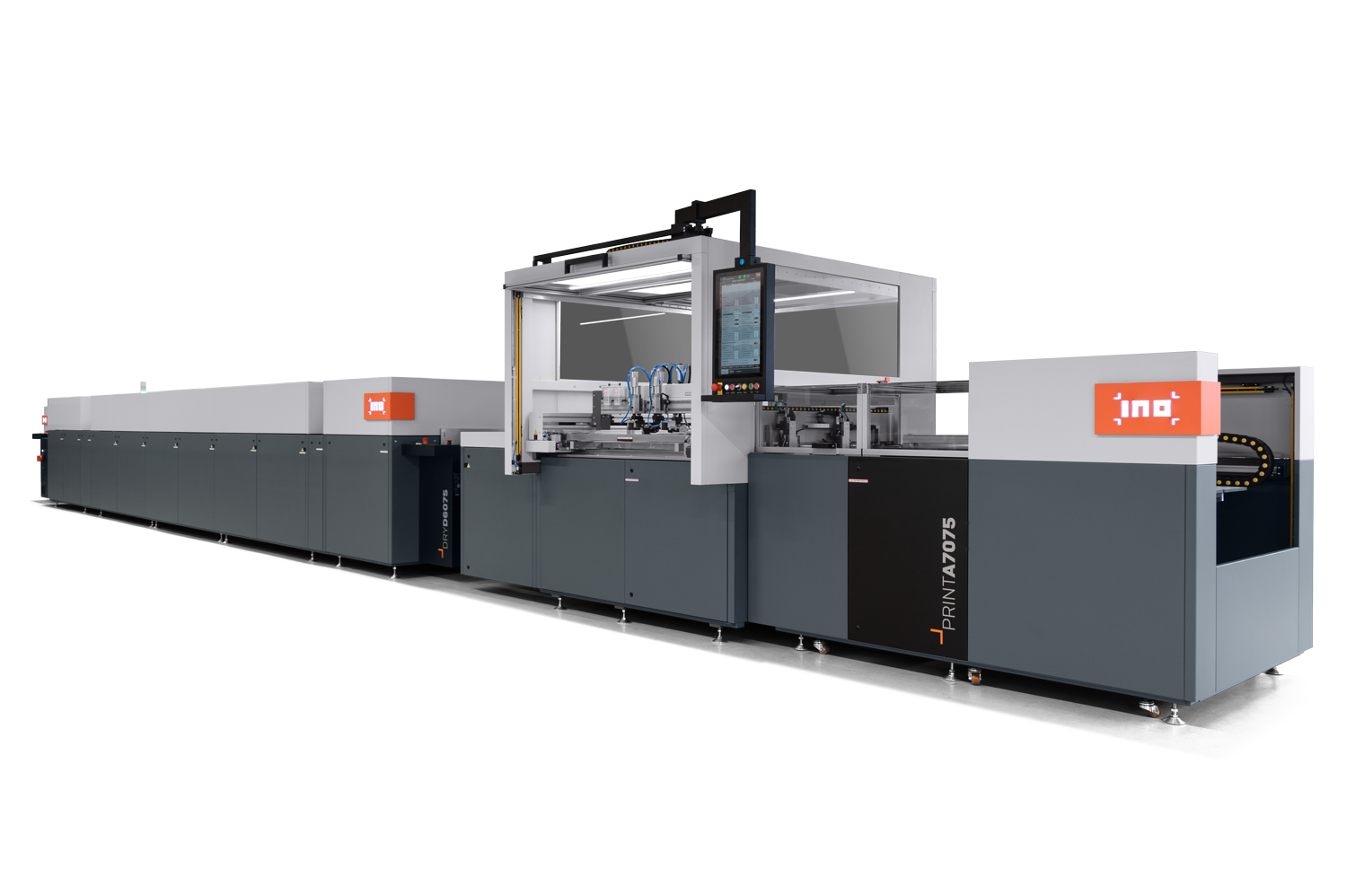

The INO A7 is purpose-built to operate within the INO PE Line and pairs with the following modules to form a fully automated inline production workflow:

• DRY D8: Conveyorized hot-air + IR dryer with cooling zone for uniform drying
• UV Unit: Optional UV curing module for specialty inks and coatings
• STACK: Automated sheet alignment and stacking for post-print handling

Each unit is engineered for synergy, creating a streamlined process that supports high-volume manufacturing with fewer operators, less downtime, and higher yield.

• Minimizing Waste and Material Loss
  High-value functional inks and films require precise positioning and efficient setups. The A7’s automatic registration and cleaning reduce waste to just a few sheets per job, lowering cost and boosting production yield.
• Reliable Curing for Sensitive Materials
  The INO DRY D8 and optional UV drying units ensure uniform temperature control for consistent curing of multilayer stacks. This prevents under- or over-curing, protecting layer integrity and print function.
• Built for Smart Manufacturing
  The A7 supports Industry 4.0 connectivity, enabling integration with MES systems and real-time performance monitoring. Manufacturers gain full visibility across the production line to improve decision-making and reduce unplanned downtime.

• The optional UV and IR/Hot-Air drying modules maintain precise temperature control, ideal for heat-sensitive or multilayer materials.
• Eliminates issues with over-curing or under-curing that can compromise conductive ink integrity.

The INO A7 is engineered to support a wide range of screen-printed electronic applications where consistency, registration, and material compatibility are essential:

• Printed sensors and biosensors
• Membrane switches and user interfaces
• RFID/NFC antennas and smart labels
• Printed batteries and energy storage films
• Printed capacitive/resistive circuits
• Flexible hybrid electronics (FHE)
• Smart packaging and printed traceability codes

With precision camera alignment and production speeds up to 800 sheets/hour, the A7 eliminates layer shifts, improves print integrity, and ensures full integration with dryers, cleaning systems, and smart controls.

• Designed for industrial-scale electronics production with speeds up to 800 sheets/hour
• Fully automated substrate feeding and alignment, reducing errors and increasing line productivity
• Compatible with high-performance films and sheet-based substrates (PET, PI, paperboard, and ceramic-coated materials)

• Built-in substrate cleaning system and camera-guided positioning ensures exact placement
• Print length correction and tight registration tolerance of ±30 µm
• Ideal for multilayer applications with conductive, dielectric, or resistive inks

• Features an intuitive HMI interface with clear, logical controls for quick training and easy operation
• Minimizes setup time during screen or job changeovers
• Includes Industry 4.0 protocol options for data capture, traceability, and process control

• Can be fully integrated with inline drying units (UV or IR), powder systems, ionized air cleaning units, and sheet stackers
• Optional features include:
  • Anti-static kit (ionized air gun + discharge bar)
  • Pneumatic RKS squeegee holder
  • Front/back doors for enclosed safety compliance

The A7 is ideal for manufacturers seeking highly accurate, repeatable results in printed electronics. Key applications include:

• Printed sensors, biosensors, and diagnostic strips
• Capacitive/resistive circuits and functional ink layers
• Membrane keyboards and touch switches
• Smart packaging elements and printed electronics for traceability
• Flexible energy devices and printed batteries
• RFID/NFC antenna layers and smart tags

The INO A7 is engineered to serve high-precision sectors within printed electronics, including:

• Flexible circuits
• Biosensors
• Membrane switches
• Capacitive touch sensors
• RFID/NFC antennas
• Heaters, actuators, and smart labels

Industries benefiting from the A7 include:

• Medical technology (point-of-care diagnostics, wearable biosensors)
• Automotive (heated mirrors, seat sensors, touch interfaces)
• Aerospace & Defense (lightweight printed circuitry)
• Industrial electronics (embedded sensors, ID tracking)

The A7 achieves registration accuracy up to ±30 µm and is designed for consistent operation even in multi-shift environments. Its robust frame, intelligent substrate handling, and operator-independent logic make it the ideal machine for demanding production lines where quality cannot be compromised.

Contact Deco Tech today to learn how the INO A7 screen printing machine can transform your printed electronics workflow. From sensors to circuits, our team offers expert consultation, application testing, and turnkey support across North America.

Call us at (714) 639-DECO or email us at sales@decotechgroup.com to get started.
