Designed for High-Precision Printed Electronics and Flexible Materials

The INO M Series is a family of modular screen printing machines engineered for unmatched precision on thin, delicate, and high-value substrates. Designed for sheet-fed flatbed screen printing, the M Series supports scalable automation levels—starting from semi-automated operation to fully robotic workflows—making it the ultimate solution for printed electronics, medical applications, capacitive touch panels, and flexible circuits.

With sliding-table design, anti-scratch substrate handling, and ultra-fine ±20 µm print precision, the M Series enables manufacturers to maintain tight tolerances across prototyping, validation, and full-scale production. Whether you require a compact M4 unit for low-volume runs or a fully customized M8 solution for industrial throughput, INO delivers production consistency and cost-efficiency in a single unified platform.

The modular architecture of the M Series allows manufacturers to scale their printing operation without replacing core components. From R&D and pilot production to high-volume output, each configuration delivers consistent print alignment, seamless substrate manipulation, and exacting process control.

• PRINT M4 / M5 – Semi-automated systems ideal for prototyping, testing, and precision development work.

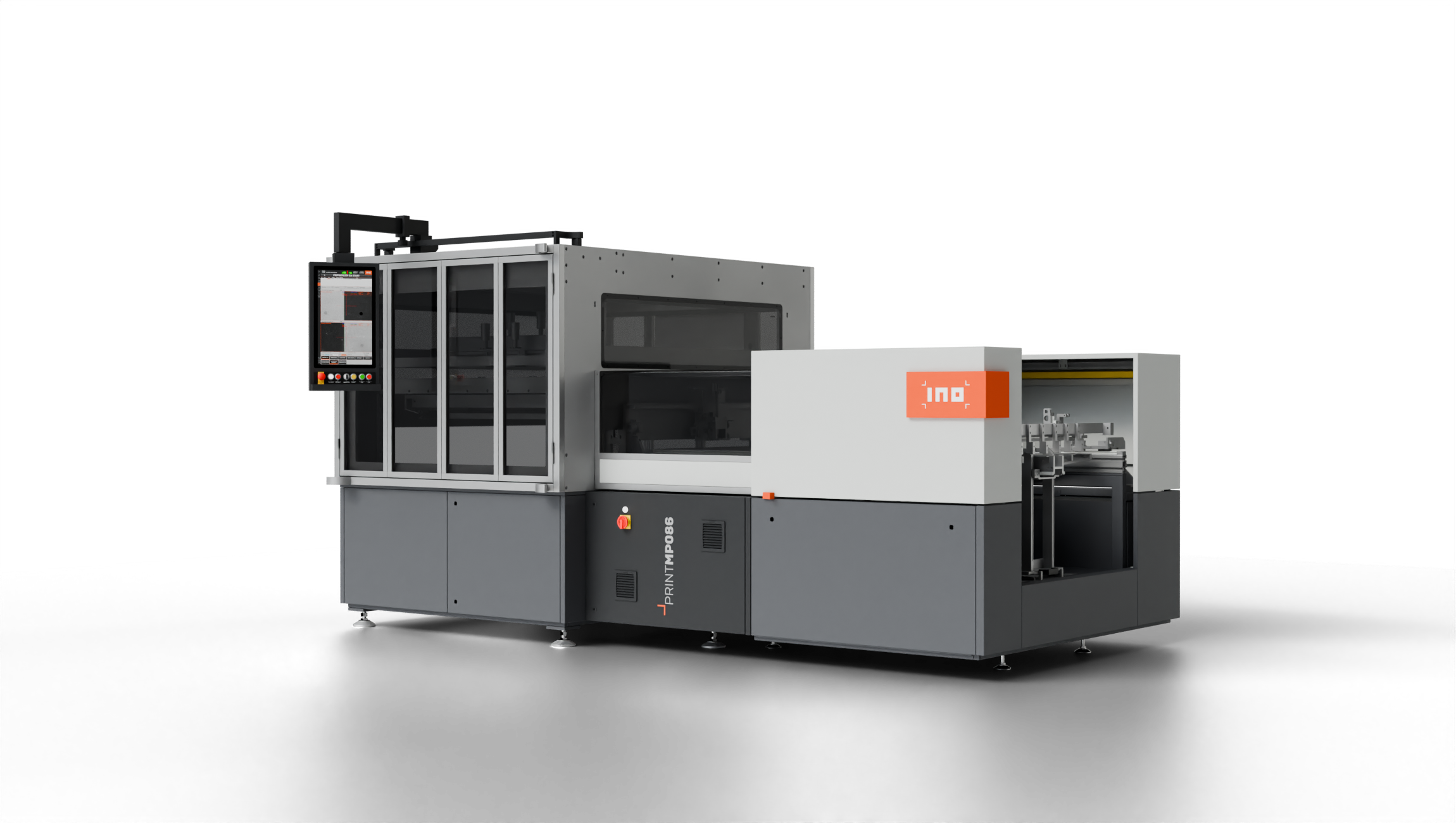

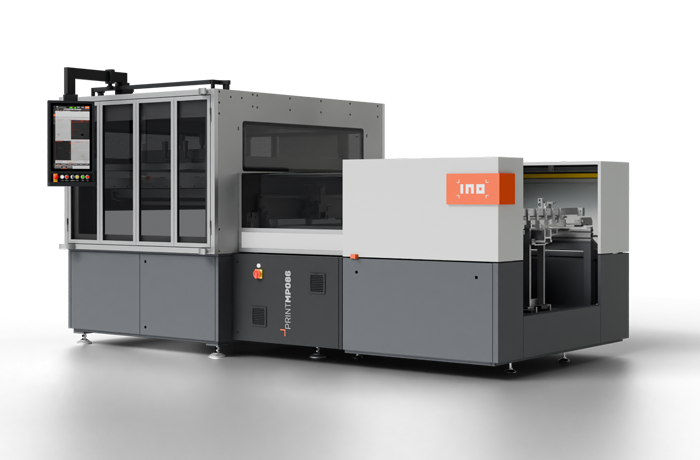

• PRINT M6 – Fully automated machine with high-speed handling for mid- to high-volume manufacturing.

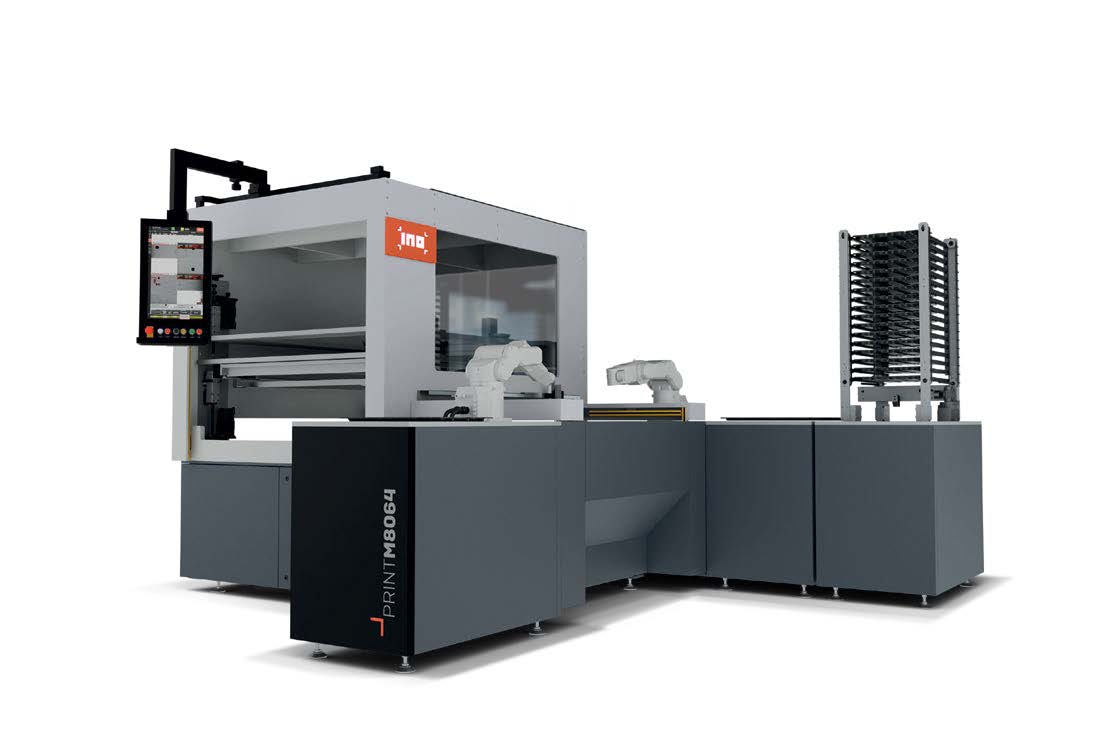

• PRINT M8 – Customized, robotic system with full integration, tailored for industrial printed electronics production.

• Scratch-Free Handling for Thin Substrates
  Even the smallest imperfections can ruin high-value substrates. INO’s advanced sheet transport system minimizes mechanical stress, making the M Series ideal for transparent films, e-textiles, and ultra-thin flexible substrates.
• Consistent Parameters from Prototype to Production
  Modular designs ensure that all printing parameters—screen positioning, pressure settings, software logic—transfer seamlessly across M4 to M8 units. This enables faster time-to-market and repeatable product quality without revalidation.
• Ultra-Fine Registration and Process Control
  The M Series integrates auto-registration systems, print length correction, and intuitive HMI software to maintain tight tolerances throughout the job. Each print cycle is tracked, logged, and adjustable for total process control.
• Optimized for Industry 4.0 Workflows
  Smart data connectivity enables integration with factory MES systems, traceability tools, and automated line diagnostics—ensuring the M Series is future-proof and factory-ready.

• The INO M Series is purpose-built to meet the exacting demands of printed electronics and high-precision screen printing applications:
  • Printed flexible circuits – stable, repeatable printing on ultra-thin PET, PEN, or specialty substrates with fine conductive inks
  • Capacitive touch panels – accurate multi-layer alignment for intricate circuitry and transparent conductive layers
  • Flexible sensors & film heaters – high-resolution printing on stretchable or temperature-sensitive materials with consistent film thickness

  With a production capacity of up to 380 sheets per hour and ±20 μm registration accuracy, the INO M Series ensures consistent output, reduced material waste, and seamless integration with automated feeding, drying, and stacking units.

• Choose between ½, ¾, fully, or fully robotic automation (M4, M5, M6, M8)
• Upgrade modules without replacing base press
• Compatible with automated DRY and STACK units
• Engineered to scale with production volume and application complexity

• Camera-based screen positioning and alignment
• ±20 µm repeatability across all models
• Automatic print length correction
• Anti-scratch transport and vacuum table for delicate substrates

• Quick Fit screen changeover design
• Touchscreen HMI with visual diagnostics
• Minimal setup time, reduced downtime

• Industry 4.0 protocol and data connectivity
• Pneumatic RKS squeegee holder
• Enhanced anti-static electrode kit
• Front/rear safety doors and guarded enclosure

The M Series supports demanding screen printing applications across high-tech and industrial markets. Its camera-controlled registration, anti-scratch handling, and modular scalability make it ideal for:

• Printed electronics (film heaters, antennas, conductive traces)
• Medical sensors (biosensors, wearable diagnostics)
• Capacitive touch panels (smart displays, automotive HMI)
• Flexible circuits and sensors (bendable electronics, low-profile devices)
• E-textiles (smart garments, integrated circuits on fabric)
• Optically clear components (transparent films, photonic applications)

• Automotive electronics – for dashboard interfaces, capacitive sensors, and lighting
• Consumer electronics – touch-enabled wearables, flexible circuits
• Medical device manufacturing – printed diagnostic sensors, electrode patterns
• Printed electronics – flexible batteries, antennas, circuits
• Advanced materials & e-textiles – textiles with embedded conductive elements

If you're manufacturing flexible circuits, sensors, or other printed electronic components, the INO M Series is your trusted partner for precision, process control, and scalability. Whether you’re developing new technologies or optimizing for mass production, we’ll help you configure the ideal machine setup to fit your needs and accelerate your results.

Contact Deco Tech today to learn more about the INO M Series of modular screen printing machines. Our team offers expert technical consultation, installation, and North American support.

Call us at (714) 639-DECO or email sales@decotechgroup.com to get started.
