LC-6B - Compact UV Drying Conveyor

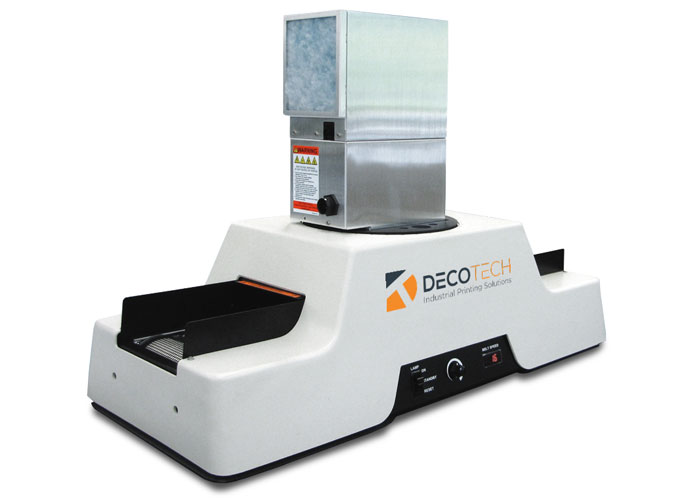

Deco Tech LC-6B – Bench Top UV Curing Conveyor for Pad & Screen Printed Parts
The Deco Tech LC-6B is a compact bench top UV curing conveyor engineered to cure both UV pad printing inks and UV screen printing inks across a variety of substrates. Whether you're in daily production or lab testing environments, the LC-6B delivers dependable UV curing performance in a compact, efficient footprint.
Designed to accommodate 3D and injection-molded parts, this unit supports part widths up to 8.5" with an effective UV curing width of 6". The adjustable UV lamp assembly handles part heights up to 3", making it an ideal solution for curved, raised, or dimensional surfaces printed via pad or screen methods.
The LC-6B comes equipped with the Heraeus Fusion model F300 UV lamp system—recognized as the American industry standard for power and consistency. The lamp and housing can be rotated and vertically adjusted, allowing precise curing angle and distance to suit part geometry and print coverage.
A Teflon-coated, open mesh conveyor belt enables optimal airflow beneath the parts, helping stabilize lightweight items during curing. An integrated exhaust blower aids in part cooling, while the one-piece molded cowling allows quick access for maintenance. With four models to choose from, belt speeds range from 0.3 to 250 feet per minute (0.1 to 75 m/min), easily set via a digital control panel.
The LC-6B UV dryer is ideal for plastics, coated metals, glass, and more, and supports both high-volume production and R&D environments.
Engineered for 3D and Molded Parts
Built for flexibility, the LC-6B accommodates 3D and injection-molded parts up to 8.5 inches wide, with an effective UV curing width of 6 inches. The height-adjustable lamp assembly supports part heights up to 3 inches, making it ideal for curved, raised, or contoured surfaces.
Powered by Heraeus Fusion F300 UV Technology
At the heart of the LC-6B is the Heraeus Fusion F300 UV lamp system—widely regarded as the industry standard for reliability, intensity, and cure consistency. The lamp housing can be rotated and vertically adjusted to fine-tune the curing angle and distance based on your part geometry and ink coverage requirements.
Optimized Conveyor Belt & Airflow
A Teflon®-coated open mesh conveyor belt promotes consistent airflow beneath each part, helping to stabilize lightweight or delicate items during curing. An integrated exhaust blower cools parts and maintains internal airflow, while the one-piece molded cowling offers easy access for maintenance and cleaning.
Precise Control & Configurable Speeds
The LC-6B is available in four model configurations with belt speeds ranging from 0.3 to 250 feet per minute (0.1 to 75 m/min). Speed and lamp functions are easily controlled through a digital interface, offering accurate and repeatable setup for each job.
Key Features – LC-6B UV Curing Conveyor
- Compatible with Pad & Screen Printed Parts
Optimized for curing UV inks applied via pad printing or screen printing on a wide range of substrates. - Compact Bench Top Design
Space-efficient footprint makes it ideal for production lines, labs, or R&D environments. - Heraeus Fusion F300 UV Lamp System
Industry-standard American-made UV curing technology ensures consistent, high-intensity output. - Adjustable UV Lamp Positioning
Lamp housing can be tilted and height-adjusted for optimal curing angle and part clearance up to 3". - Supports 3D and Molded Parts
Cures curved or dimensional substrates up to 8.5" wide with a 6" effective UV curing width. - Teflon-Coated Mesh Belt
Durable open-mesh belt allows airflow to stabilize small or lightweight parts during curing. - Internal Exhaust Blower
Built-in ventilation supports efficient part cooling and prevents heat buildup. - Variable Speed Control
Digital interface allows easy adjustment of belt speeds from 0.3 to 250 feet per minute. - Tool-Free Maintenance Access
One-piece molded housing provides quick and easy access to internal components for service. - Multiple Model Options Available
LC Series includes four different configurations to meet various curing speed and size requirements.
Applications & Compatibility
The LC-6B is ideal for UV curing of:
- Pad printed plastics and curved parts
- UV screen printed flat or raised surfaces
- Glass, coated metals, and injection-molded components
- R&D testing of UV adhesives, coatings, and inks
Looking to Cure Pad or Screen Printed Parts with Precision UV Technology?
Contact Deco Tech today to learn how the LC-6B bench-top UV curing conveyor can optimize your production or testing workflow. Whether you're curing pad printed curved parts, screen printed flat surfaces, or conducting lab-based R&D with UV adhesives or coatings, our team can help configure the right solution for your needs.
Call us at (714) 639-DECO or email us at sales@decotechgroup.com.
Technical Specifications – LC-6B UV Curing Conveyor
Compact Bench-Top UV Curing for 3D & Flat Part Applications
The LC-6B UV curing conveyor from Deco Tech is designed for benchtop flexibility and precision UV curing of pad printed and screen printed parts. Engineered to support both R&D and production environments, it delivers consistent curing results on 3D molded parts, flat components, and curved surfaces. Featuring adjustable lamp height, rotatable UV head, and variable belt speeds, the LC-6B offers unmatched control in a compact footprint.
Normal Curing Width: | 6" (152 mm) |
---|---|
Lamp Position: | 360° rotatable, vertical adjustment with focus from belt surface to 4" (100 mm) above |
Overall Dimensions (L × W × H): | 42" × 20" × 12.2" (without lamp), 27.4" (with lamp) |
Unit Weight: | 55 lbs (without lamp) |
Belt Material: | 0.25" Teflon®-coated Kevlar® mesh with fold-back loop seam |
Belt Travel Direction: | Right to left (standard) |
Speed Display: | Digital readout in ft/min or m/min |
Speed Ranges: | Low: 0.03–23 ft/min Standard: 16–250 ft/min |
Drive System: | PMDC gearmotor with synchronous belt drive & interchangeable pulleys |
Controls: | On/Off, Speed Control, Lamp On/Off |
Safety Interlocks: | Zero-speed safety switch with lamp interconnect |
Exhaust Blower: | Integrated internal cooling/extraction fan |
Fasteners: | Metric hardware |
Power Requirements: | 117/230 VAC, 1-Phase, 50/60 Hz, IEC plug with integrated switch |
UV Lamp Output: | 300 W/inch (120 W/cm) at 100% power |
A single lamp UV curing conveyor system for a variety of objects
Machine Type: UV curing conveyor system with 1 UV lamps
Manufacturer: Deco Tech brand
Origin: United States of America (US MADE)
