Swiss-Precision Pad Printing Automation for Premium Product Decoration

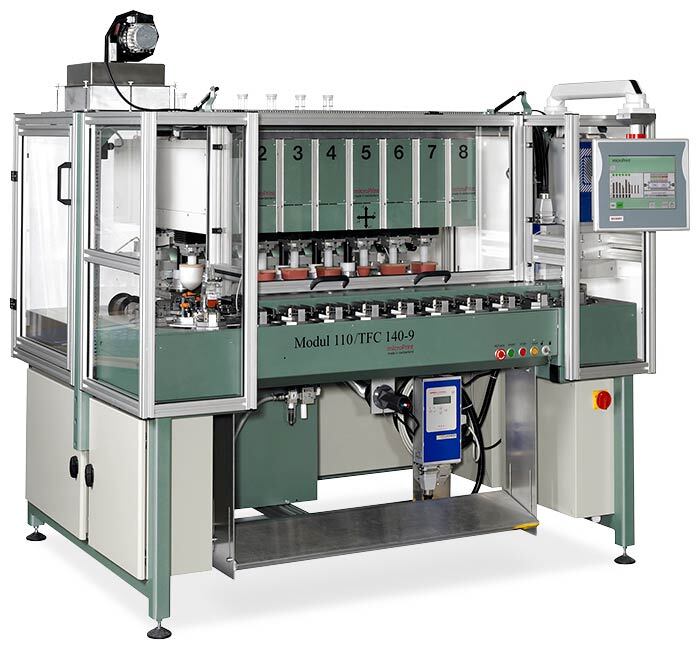

Engineered by microPrint with uncompromising Swiss precision, this advanced automated pad printing system is built for high-end product decoration—where consistency, detail, and production efficiency are non-negotiable. Featuring eight Modul 110 pad printing heads and a 24-station servo-driven oval track indexer, this powerful system delivers multi-color, multi-position printing for complex parts and luxury-grade components.

Advanced Motion Control for Unmatched Print Precision

Each of the eight print heads is equipped with:

• Linear motor control for precise Y-axis pad travel
• Servo motor control for X-axis (left-to-right) movement

Operators can make complete XY positional adjustments directly from the intuitive touchscreen interface. This allows each print head to align perfectly with its corresponding fixture—ideal for repeatable, multi-color applications with tight registration requirements.

Built for Hexagonal Writing Instruments—and Beyond

Originally developed to print on luxury pens and mechanical pencils with hexagonal barrels, the system was designed to print on three sides of the product using the first four heads. The fixture then rotates the part 180°, and the remaining four print heads decorate the opposite sides.

This intelligent workflow enables full 360° print coverage on complex shapes—perfect for:

• High-end writing instruments
• Cosmetics packaging
• Medical devices
• Consumer electronics
• Industrial components

Automation Features That Keep You Ahead

• Automatic pad cleaning system on each print head
• Viscomatic ink viscosity control ensures optimal print quality and minimal downtime
• Touchscreen control with universal icon navigation (no language-specific training required)
• Beckhoff PLC with PROFIBUS interface for ultra-fast job setups and storage of job parameters
• Fully enclosed design with interlocked doors, safety relays, and emergency stop at the load station

Designed for Industrial Throughput with Swiss-Built Reliability

From part loading to final print pass, every movement is servo-controlled, repeatable, and optimized for high-volume production. This modular configuration allows customization to meet your part geometry, color count, and cycle time requirements—while maintaining micrometer-level print accuracy.

Contact Us for a Custom Quote

Ready to automate your high-value pad printing applications? Contact the Deco Tech automation team to discuss your specific production needs.
