DT-200-4C-OT

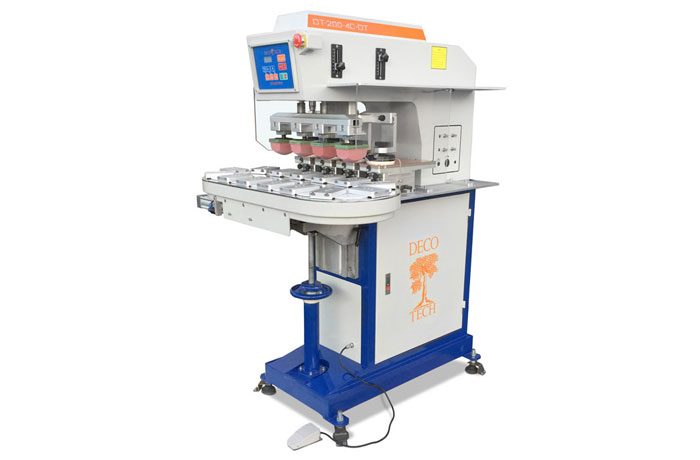

The DT-200-4C-OT pad printing machine is equipped with a 14 station oval track indexer that has 4 cam locking stations in each of the four print stations and this Oval Track (OT) indexed machine is well suited for printing small parts in 1 to 4 colors. features a membrane switch panel which is easy to operate and all parameters functions can be programmed from there. The pad stroke controls are easily accessible on the right side of the machine with numerical calibration and the DT-200-4C-OT pad printer comes with a solid built welded steel machine base with adjustable floor levelers and a height adjustable work table. Inside the machines base you have room to store your pad printing supply items. The DT-200-4C-OT is equipped with four 90mm ink cups and with four 100 x 300mm individually adjustable (X/Y/R) cliché holders that are adjustable for precise artwork alignment on-press. The clichés can be made from; photo polymer, thin steel (0.5mm), thick steel (10mm) or laser etched varieties and DECO TECH provides a full array of consumable supplies, technical support & product training for our DT SERIES of pad printing machinery. The DECO TECH model DT-200-4C-OT pad printing machine is backed with a one year warranty against defects in manufacturing.

Call us at (800) 300-DECO or use the quote request form for a detailed price quote.

  • Membrane switch control panel
  • Electro Pneumatic controlled
  • 14 station Cam locked indexer
  • Festo brand pneumatics
  • Easily accessible pad stroke adjustments
  • X/Y/R/Z work table
  • X/Y/R cliché adjustment
  • Smooth & quiet machine performance
