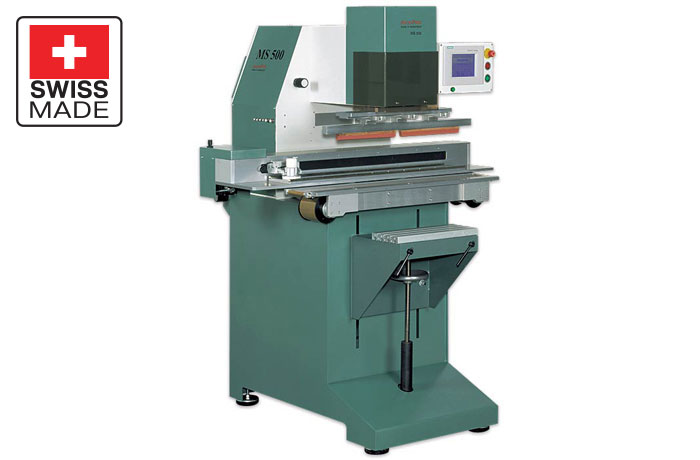

The microPrint MS-500S is a high-precision, closed-cup pad printing machine equipped with a servo-driven linear ink cup slide system, purpose-built for printing on long and narrow parts such as catheter tubing, guidewires, and medical-grade tubing.
Designed and manufactured in Switzerland, the MS-500S delivers exceptional control and accuracy—making it ideal for printing medical depth marks and other fine graphics on flexible cylindrical substrates. The servo-controlled horizontal ink cup motion keeps the ink fresh during long print cycles, while the robust machine frame ensures vibration-free operation.

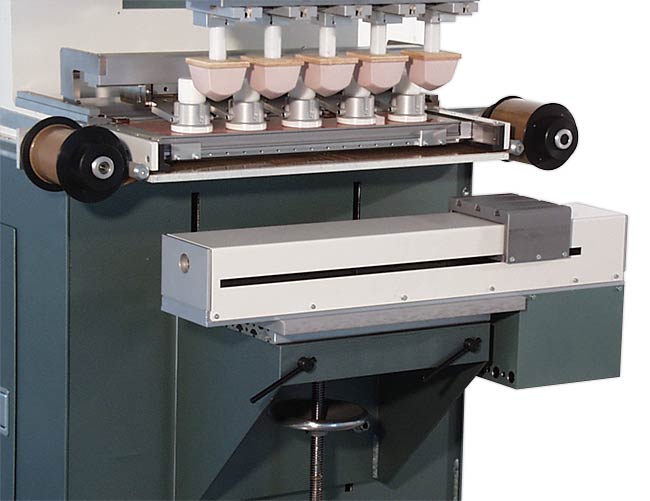

The MS-500S can also be configured to pad print up to 180° around cylindrical parts or a full 360° band using our automatic part rotating device (in two print passes). Whether used for standalone medical marking or inline integration, this system offers unmatched performance for demanding production environments.
Technical Data | MS-500S |
---|---|
Printing Capacity: | Up to 500 parts per hour (pph) |
Drive Type: | Pneumatic & Stepper Motor (servo slide) |
Printing Force: | 2,200 N Max |
Air Supply: | 5–6 bar (72.5–87 psi) |
Air Consumption: | 4 liters per cycle |
Control System: | PLC – 24V |
Power Requirements: | 110–240V, 50–60 Hz |
Control Voltage: | 24 VDC |
Machine Weight: | 290 kg (638 lbs) |
Weight with Accessories: | 450 kg (990 lbs) |
Max Plate Size (Ink Cup): | 120 × 800 mm |
Plate Size with Inkwell: | N/A |
Plate Thickness Options: | 0.5 mm or 10 mm |
Ink Cup Sizes (Diameter): |
|
microPrint continues to lead the pad printing industry through innovation and Swiss craftsmanship. The MS-500S is a purpose-built solution for medical and technical part marking where precision, reliability, and part-to-part repeatability are critical.
