T-Shirts
Inside-neck branding, size marks and garment information.
SERVIS Servo Pad Printers
Tagless Apparel Printing Machines
Direct pad printing for T-shirts, activewear, athletic shorts, underwear, sports bras and other garments.
The SERVIS series brings servo-controlled pad printing to apparel applications that require clean, repeatable one-color printing directly on the garment. Choose SERVIS-100, SERVIS-120 or SERVIS-150 based on artwork size and ink cup requirement.
T-ShirtsActivewearAthletic ShortsUnderwearSports Bras
3 ModelsSERVIS-100 / 120 / 150
Servo ControlledPlate & pad movement
2,400/hrMaximum listed machine cycle rate*
1 ColorDirect apparel printing
Apparel Applications
Tagless printing across more than just T-shirts.
Direct garment printing can be used anywhere the application, fabric and print location are suitable for pad printing. The examples below illustrate common apparel categories where size, care, branding or identification marks may be printed directly on the garment.
Activewear
Performance fabrics and stretch garments for athletic applications.
Athletic Shorts
Interior waistband or garment-area printing for size and care information.
Underwear
Soft, compact printed marks where sewn-in tags are not desired.
Sports Bras
Inside-garment printing on athletic and intimate apparel.
Representative application imagery. Final print quality, opacity, cure and wash performance depend on the specific garment material and should be validated before production.

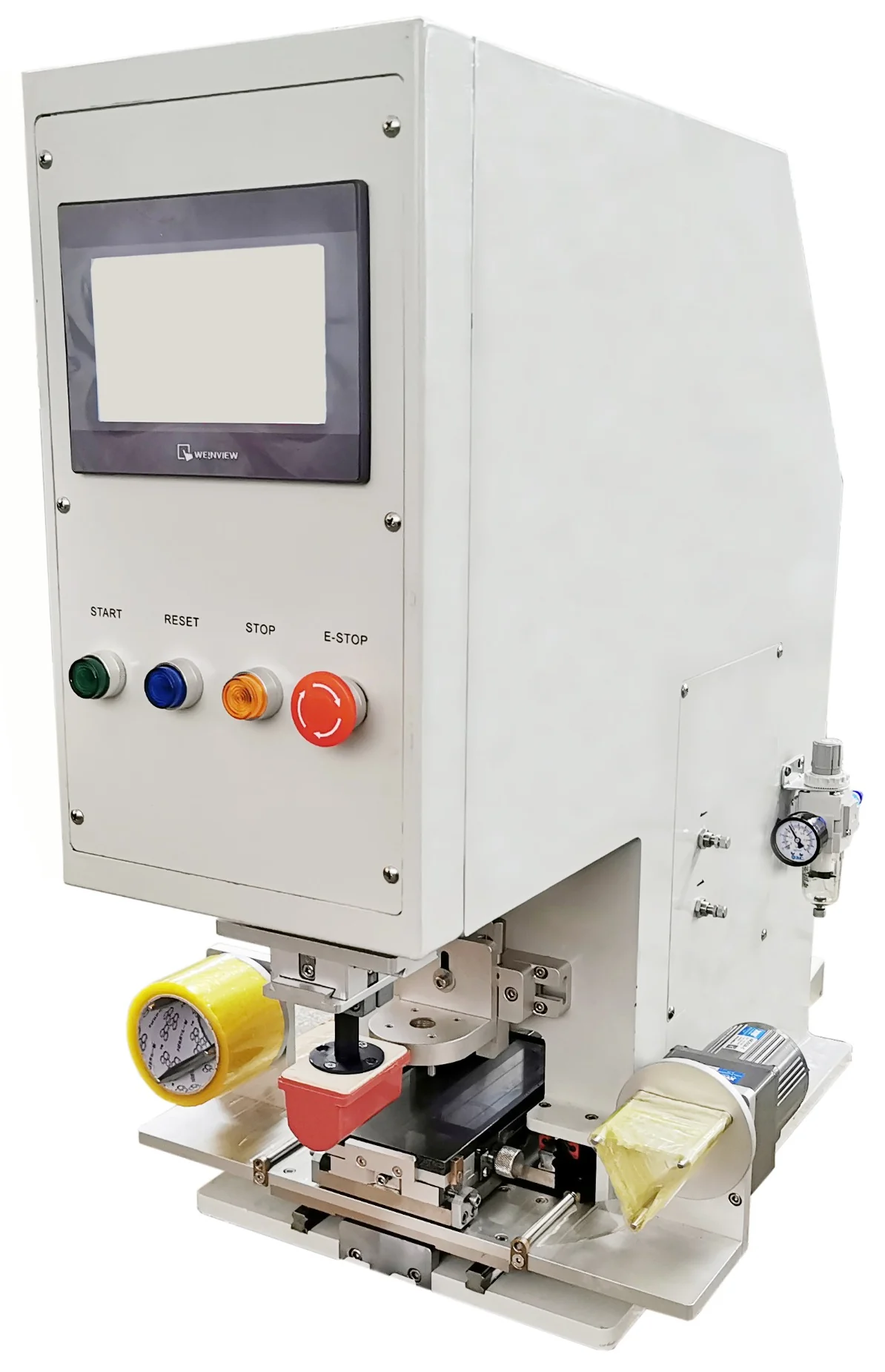

SERVIS combines servo-controlled movement, touchscreen control and a compact printing platform for repeatable production setups.
Built for Apparel Production
Precise servo control in a compact pad printing platform.
The SERVIS platform is designed for applications where repeatability, programmable movement and quick setup are important. Touchscreen controls and servo-driven motion make it easier to store and repeat production settings.
Servo-driven movement
Inovance servo motors control cliché travel and programmable pad movement.
Touchscreen control
Inovance PLC with Weinview touchscreen for machine setup and operation.
Job memory
Stored settings support repeat jobs and faster changeovers.
Optional pad cleaning
Automatic pad cleaning can be configured to reduce manual interruptions.
SERVIS Model Series
Choose the model around your artwork and ink cup size.
All three models use the same servo-controlled platform. The main configuration differences are cliché size and ink cup diameter.
Compact Model
SERVIS-100
For smaller artwork and compact tagless apparel applications.
Cliché size100 × 215 mm
Cliché thickness0.3 / 0.5 / 10 mm
Ink cupI.D. 90 × O.D. 100 mm
Mid-Size Model
SERVIS-120
For larger artwork while remaining in the 120 mm ink cup range.
Cliché size130 × 250 mm
Ink cup120 mm
PlatformServo controlled
Largest Configuration
SERVIS-150
The largest standard configuration shown and the model detailed below.
Cliché size150 × 350 mm
Cliché thickness0.5 mm
Ink cupI.D. 140 × O.D. 150 mm
SERVIS-150 is the configuration represented in the detailed technical specifications on this page.
The Complete Printing Process
Machine, ink, pad, cliché and cleaning support from one source.
A successful apparel printing process depends on more than the press. Deco Tech can support the tooling and consumables required to build and maintain the application.
Consumables
Pad Printing Inks
Review Printcolor ink systems and identify candidates for garment testing.
View Inks →ConsumablesSilicone Pads
Match pad shape, size and hardness to the print area and garment fixture.
View Pads →ToolingPad Printing Clichés
Select the cliché style and size required for the artwork and SERVIS configuration.
View Clichés →Process SupportCleaning Equipment
Keep cups, clichés and production tooling clean and ready for repeat work.
View Cleaning Equipment →Engineering & Machine Layout
Compact footprint with servo-driven print movement.
The SERVIS-150 specification set shows a machine footprint of 748 × 510 × 834 mm and a compact printing area designed for fixture access and operator loading.

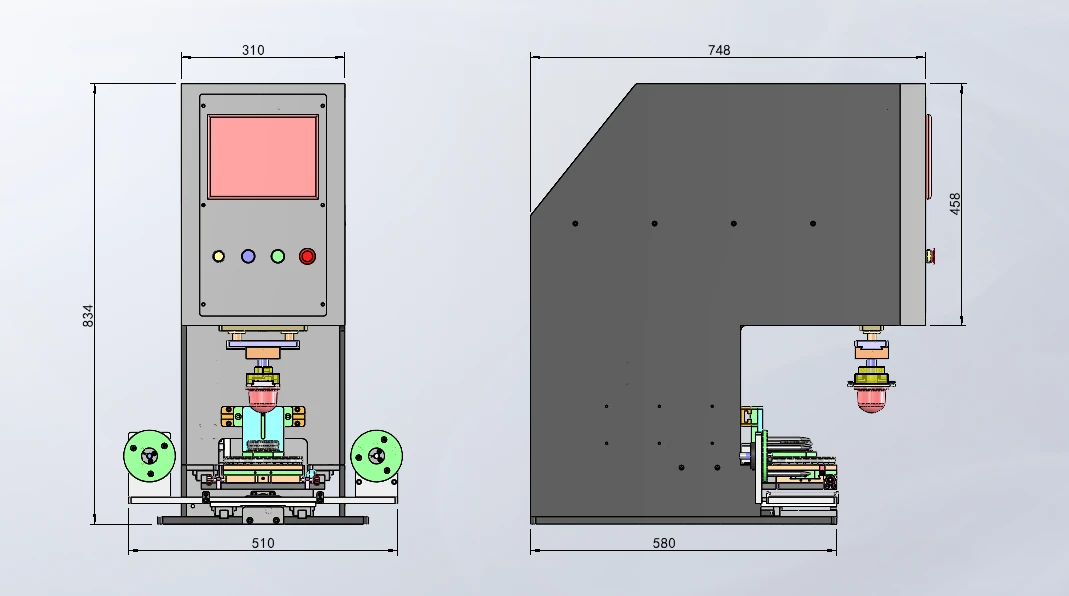

SERVIS-150 dimensional drawing and machine envelope.

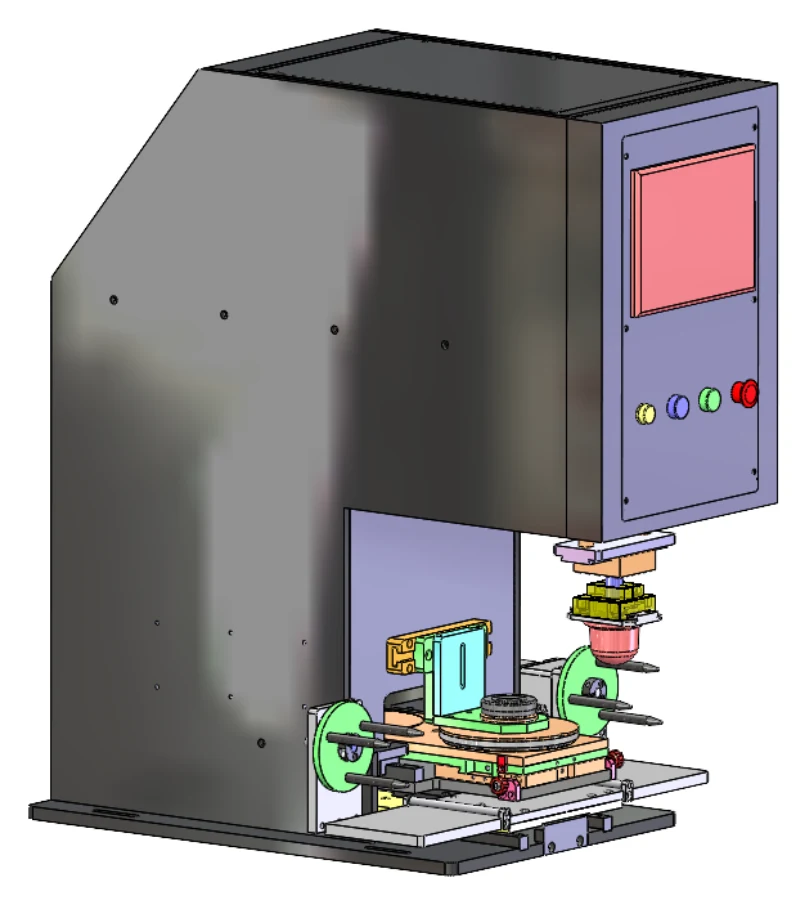

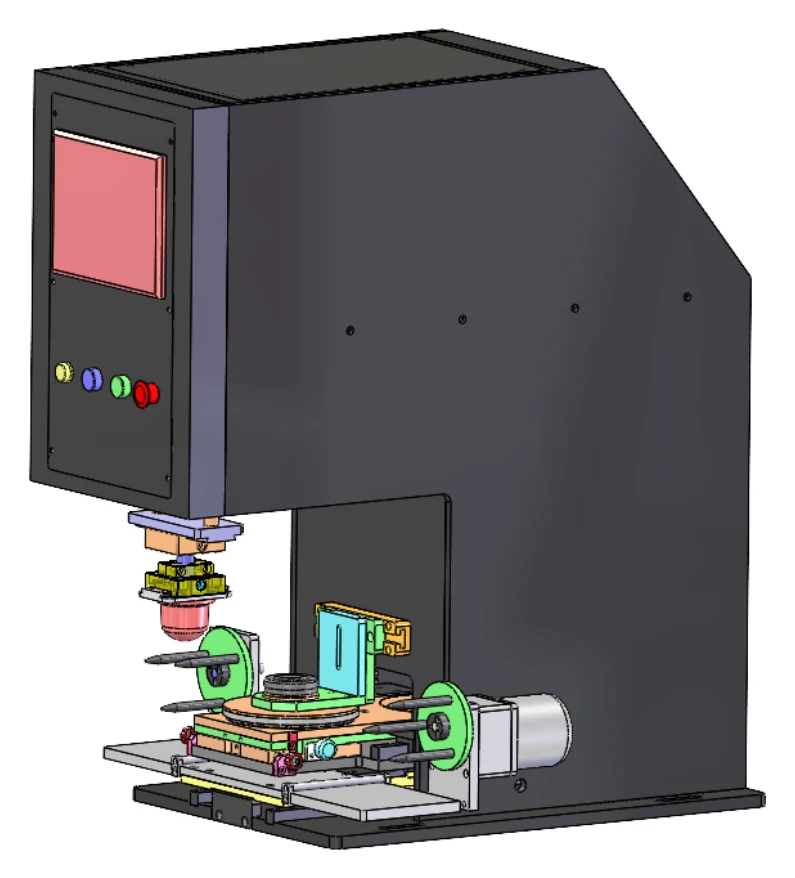

CAD view of the machine platform.
Opposite CAD view showing the print area and machine structure.
Option
Automatic pad cleaning
An automatic pad cleaning device can be configured for applications where reducing manual cleaning interruptions is important.
Technical Data
SERVIS-150 specifications
Detailed specifications for the SERVIS-150 configuration.
| Control system | Inovance PLC & Weinview touch screen |
|---|---|
| Plate front / back motion | Inovance servo motor |
| Pad up / down print stroke | Inovance servo motor |
| Cliché size | 150 × 350 mm |
| Cliché thickness | 0.5 mm |
| Ink cup size | I.D. 140 × O.D. 150 mm |
| Running speed | 1,500 – 2,400 cycles/hour |
| Pad stroke | 1 – 120 mm |
| Cliché stroke | 1 – 180 mm |
| Main voltage | 110 V, 1 phase, 50/60 Hz |
| Control voltage | 24 V/DC |
| Net weight | 135 kg approx. |
| Gross weight | 200 kg approx. |
| Machine size | L748 × W510 × H834 mm |
| Crated size | L1000 × W710 × H1000 mm |
*The listed cycle rate is the machine's supplied cycle specification. Finished garments per hour depend on operator loading, fixture design, print settings, ink process and application requirements. Specifications are subject to change.
Application FAQ
Common questions about SERVIS garment printing.
Can SERVIS print on activewear, underwear and sports bras?
Potentially, yes. The SERVIS platform can be evaluated for direct printing on a wide range of garments. Fabric blend, stretch, dye, surface finish, print location, ink system and required wash performance should be tested before production approval.
Which SERVIS model is right for my garment artwork?
Model selection is driven primarily by artwork size, required cliché size and ink cup diameter. SERVIS-100 is the smallest configuration, SERVIS-120 covers the mid-size range and SERVIS-150 provides the largest standard configuration shown here.
Can Deco Tech test garments before a machine is ordered?
Yes. Send the garment, artwork, print location, color requirement and expected production volume so the application can be reviewed and the appropriate machine, tooling and consumables can be quoted.
Request a Quote
Build a SERVIS setup around your garment and artwork.
Send Deco Tech your garment, print location, artwork size, color and expected production volume. We can review the application and recommend the SERVIS model, fixture, pad, cliché and ink system for testing.
Helpful application details
Garment style · fabric blend · print location · artwork dimensions · print color · annual quantity · wash or stretch requirements.
Deco Technology Group supports pad printing machinery, tooling, consumables and application development throughout North America.
