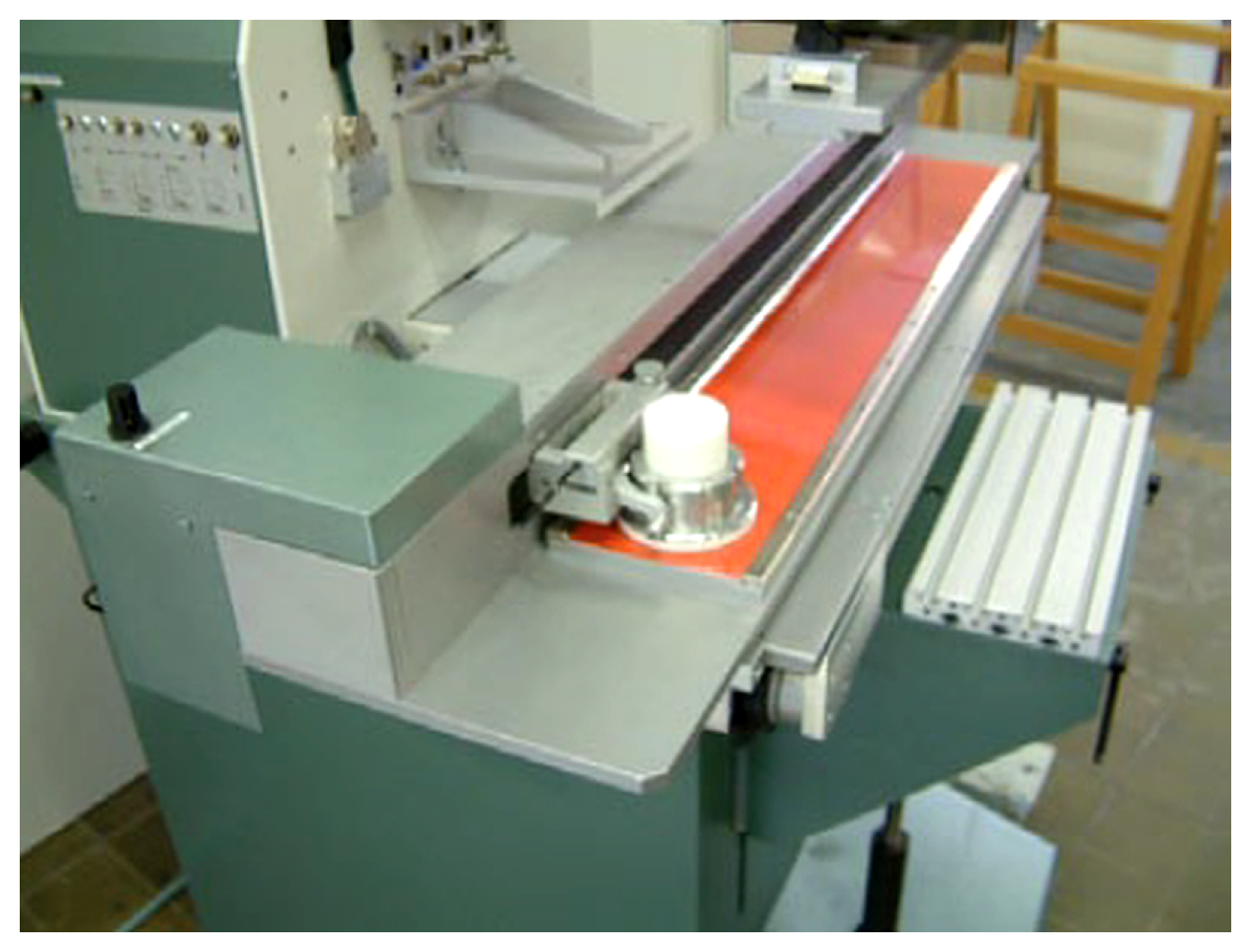

Servo Driven Transverse Cup Slide Device - Pad Printing Automation Component

Maximize Ink Control with Swiss Precision Cup Slide Automation

Swiss-Made Servo Transverse Cup Slide Device for Precision Ink Transfer in Pad Printing

The servo-driven transverse cup slide device from microPrint is a high-precision automation accessory engineered to enhance pad printing performance by delivering exact ink pick-up and deposition cycles. Designed specifically for microPrint's MS and ML Series pad printing machines, this system ensures the consistent and programmable motion of the ink cup along the X-axis—critical for large images or when multiple clichés are used.

Built in Switzerland with the highest standards of engineering, this device delivers unrivaled repeatability and allows for full customization of stroke lengths and speeds. The system’s motorized servo drive guarantees smooth, synchronized movement, which is essential for maintaining ink consistency and avoiding ghosting, especially on extended or multi-up clichés.

Purpose-Built for microPrint MS and ML Series

This cup slide is a vital enhancement for printing on elongated or multi-position objects, such as catheters, pipettes, rulers, or medical tubes. It is specifically engineered to integrate seamlessly with microPrint MS and ML series pad printers, and is available as a factory-installed or retrofit option.

Compatible with Multi-Axis Configurations

The servo-driven cup slide is often used in tandem with other automation modules such as:

  • X/Y/R/Z adjustable worktables
  • Rotary fixtures
  • Linear or oval racetrack part indexers
    This allows for complex, multi-position part decoration with complete control over ink placement and pad interaction.

Key Features:

  • Servo-Driven Precision: Provides repeatable, programmable ink cup motion for increased process stability.
  • Ideal for Oversized or Multi-Up Plates: Perfect for long artwork, full-surface prints, or when printing across multiple clichés.
  • Swiss-Made Engineering: Manufactured with premium-grade materials and components for industrial durability and reliability.
  • Plug & Print™ Ready: Fully compatible with all microPrint MS and ML Series pad printing machines.
  • Customizable Settings: Adjustable speed, acceleration, and stroke parameters via touchscreen interface (on equipped models).

Common Applications:

This module is commonly deployed in:

  • Medical device printing (catheters, syringes)
  • Industrial rulers and scales
  • Elongated promotional items
  • Automotive tubing and sensors

Engineered for Demanding Pad Printing Applications

Whether you're printing on medical devices, catheters, electronic housings, or industrial components, the servo-driven transverse cup slide device provides the necessary motion control and print consistency to meet the most demanding production specifications.

Integration with Automation and Ink Control Systems

This automation module seamlessly integrates with microPrint’s Viscomatic™ ink viscosity control and automatic pad cleaning systems, offering a complete solution for high-output and high-consistency production environments. Paired with Printcolor's Swiss-formulated pad printing inks, this combination guarantees optimal adhesion, durability, and process reliability.

Technical Support from Deco Tech

As the exclusive North American partner for microPrint, Deco Technology Group provides full support for the servo-driven cup slide device, including installation, training, spare parts, and service. Our team of experts ensures your equipment operates at peak efficiency from day one.

Call us today at (714) 639-DECO to learn more or request a quote.

Machine Type: Servo Driven Long Image Cup Slide Device
Manufacturer: microPrint
Origin: Made in Switzerland
