UVC-F404-ALD - UV Curing Conveyor System
Deco Tech UVC-F404-ALD – 360° UV Curing Conveyor for Bottles and Jars
The Deco Tech UVC-F404-ALD is a high-performance UV curing conveyor system engineered specifically for curing screen printed inks on cylindrical containers such as plastic and glass bottles and jars. Precision manufactured in South Korea to Deco Tech’s specifications, this robust system is CE-certified and built for demanding industrial environments.
Equipped with four strategically positioned UV lamps, the UVC-F404-ALD ensures uniform 360-degree curing around the full circumference of each container. The lamps are fully adjustable in height and angle (both left and right sides), allowing precise targeting of UV exposure. Additionally, the interior tunnel and door surfaces are lined with highly polished mirrored reflectors to maximize UV intensity and effectively cure complex 3D geometries.

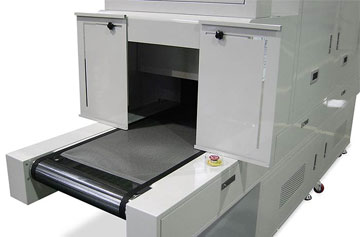

As bottles pass through the tunnel, every angle is exposed to intense UV energy—resulting in consistent, high-quality adhesion and finish. The conveyor features an adjustable infeed door system to minimize UV light leakage into the workspace, enhancing operator safety and energy efficiency. With the capacity to handle containers as large as 1-gallon jugs, the UVC-F404-ALD is ideal for a wide range of packaging applications.
Larger-format models are also available for oversized containers and custom production needs.
Key Features – UVC-F404-ALD UV Curing Conveyor
- 360° UV Curing
Four high-intensity UV lamps are positioned to cure the entire circumference of cylindrical containers, ensuring uniform ink adhesion on all sides. - Fully Adjustable Lamp Positioning

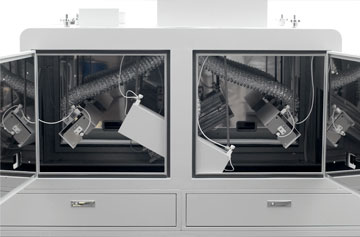

Each lamp can be raised, lowered, or angled for precise UV targeting based on part shape and size. - Reflective Interior Design
Mirror-polished reflectors inside the tunnel and doors enhance UV distribution and improve curing performance for 3D parts. - Compatible with Plastic & Glass
Designed for screen printed bottles and jars made from PET, HDPE, glass, and other common packaging materials. - Handles Large Containers
Supports container sizes up to 1-gallon jugs, with larger systems available for oversized applications. - Adjustable Infeed Doors
Prevents unwanted UV light leakage and enhances workplace safety by shielding operators from UV exposure. - Heavy-Duty Conveyor Design
Industrial-grade conveyor system ensures smooth, consistent transport of parts through the UV tunnel. - Precision Engineered
Manufactured to Deco Tech’s specifications in South Korea and built to exacting CE standards for quality and reliability. - Scalable Configurations
Modular design allows customization for extended tunnel length or additional lamp zones to match higher throughput requirements.
Technical Specifications – UVC-F404-ALD UV Curing Conveyor
The UVC-F404-ALD is a CE-certified, industrial-grade UV conveyor system engineered for 360° curing of screen printed inks on bottles and jars. It features fully adjustable UV lamp positions, internal mirror reflectors, and supports high-speed bottle handling with precise control and safety systems.
| General: | |
|---|---|
| System Dimensions (L, W, H): | 3,680 x 790 x 1,935mm (144.88” x 31.10” x 76.18”) |
| Conveyor Speed: | Variable 0 ~ 6 meters per minute |
| Speed Control: | Inverter Type, Motor Speed Control |
| Belt Type: | Teflon coated mesh (available with support pins for small bottles 200mm center line distance) |
| Belt Width: | 540 mm (21.25”) |
| Exhaust Fan: | Exhaust Air: 134M/min (blower type) |
| Cooling Fan: | 20W (transformer) |
| Power Supply: | |
| Input Voltage: | 220V, 3Phase, 50/60 Hz |
| Transformer Capacity: | 7 KVA x 4 each |
| Input Current: | 100 Amp circuit breaker |
| UV Lamps: | |
| Type: | Metal Halide UV Lamps x 4 |
| Overall Length: | 4 x 520mm (20.47”) |
| Arc Length: | 4 x 400mm (15.75”) |
| Rated Voltage Capacity: | 500V (± 30V) |
| Wattage/Cm2: | 100W/Cm |
| Wavelength: | 250 ~ 420nm |
| Ignition Time: | 5 Minutes |
| Reflector Module: | |
| Reflector Type: | Elliptical Focus Type |
| Material: | Polished Aluminum |
| Curing Length (Bottle Height max): | 300mm (11.81”) |
| Other Features: | |
| Main Switch (NFB): | Main Power On/Off Switch |
| Lamp Ampere Meter: | Displays Lamp Current |
| Lamp Time Check Meter: | Displays number of Lamp Hours |
| Emergency Stop: | 2 locations both ends of conveyor belt |
| Temperature Indicator: | Displays Internal Temperature of Oven |
| Lamp Height Control: | Mechanical adjustment for distance & angle |
| Fan Switch: | Manual On/Off control of fan |
| Warning Lamp: | Indicates a low current status |
| Color: | RAL 7035 light grey |

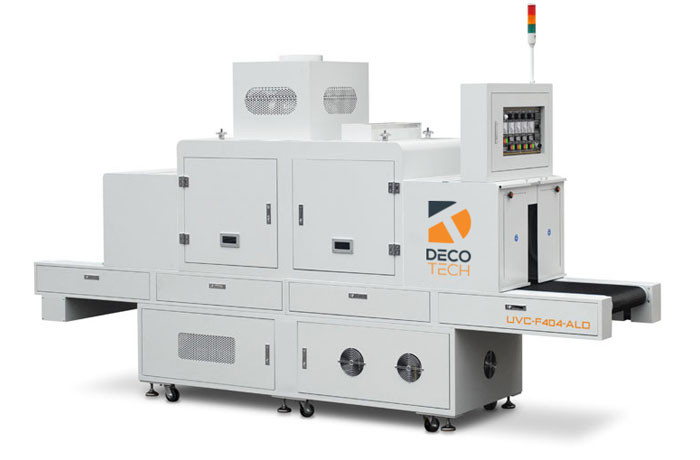

A four lamp UV curing conveyor system for round containers up to 1 gallon size.
Machine Type: UV curing conveyor system with 4 UV lamps
Manufacturer: Deco Tech brand
Origin: South Korea
