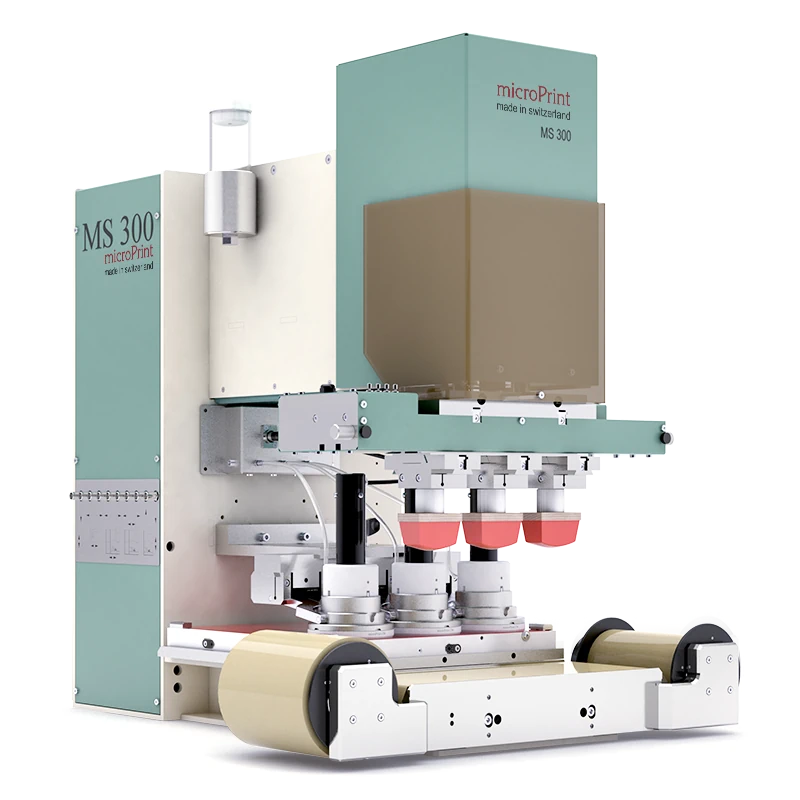

MS-300 Modular Pad Printing Machine – 1 to 4 Color Swiss System
microPrint MS-300 Pad Printing Machine – High-Performance Modular System for 1–4 Color Applications
Machine Type:Multi Color Pad Printing Machine
Manufacturer: microPrint
Origin: Made in Switzerland
The MS-300 is a robust, Swiss-built pad printing machine engineered by microPrint to meet the demands of industrial users who require flexibility, speed, and precision. Built on the time-tested MS-Series modular platform, the MS-300 delivers reliable 1- to 4-color printing in a compact, automation-ready footprint.
What sets the MS-300 apart is its ability to handle larger pad strokes and more powerful pneumatic output—making it ideal for applications that require deeper pad compression or longer reach. It’s designed for use in both stand-alone stations and fully automated production lines, thanks to its integrated interface and upgrade-ready modularity.
For two-color operations, the MS-300 can be configured with a 2-position part shuttle or pad shuttle and paired with dual 86 mm or 120 mm sealed ink cups. In full 4-color mode, the system accommodates four 56 mm cups and can be outfitted with a programmable servo-driven indexing shuttle—ideal for precise, multi-pass printing such as on golf balls or cylindrical items.
The MS-300’s modular framework supports a wide variety of ink cup sizes, cliché plate formats, and automation enhancements, allowing for tailored setups based on the application—whether you're printing on medical devices, cosmetic packaging, automotive components, or promotional goods.
Compact, powerful, and precision-tuned, the MS-300 combines microPrint’s hallmark engineering quality with unmatched flexibility for companies requiring scalable pad printing solutions.
MS-Series Pad Printing Systems – Modular Flexibility with Swiss Precision
The MS-Series from microPrint represents a modern, modular approach to pad printing, delivering unmatched precision, automation capability, and scalability. Models like the MS-300 are designed for seamless integration into manual or fully automated production environments.
Each MS machine can be equipped with optional performance-enhancing features such as:
- Automatic tape pad cleaning for consistent, maintenance-free operation
- VISCOMATIC™ ink viscosity control to ensure stable ink performance across long print runs
Thanks to its modular design, the MS-Series supports multiple automation formats including:
- Multi-axis robotic part handling
- Servo-driven linear indexing shuttles
- Rotary and oval track-style carousels
Engineered in Switzerland, MS-Series machines are built to solve the real-world challenges of high-precision, high-volume pad printing—making them the trusted choice for demanding industries like medical, automotive, cosmetic, and electronics.
Key Features of the MS-Series Pad Printing Machines
- Fast Job Changeovers with Stored Parameters
All production settings are saved and recalled via the onboard PLC, allowing operators to switch jobs in minutes with no manual reprogramming. - High-Speed Output with Servo and Pneumatic Control
Powered by a hybrid system of linear actuators and servo motors, MS-Series machines deliver exceptional speed, accuracy, and repeatability—even in complex multi-color workflows. - Precision-Engineered in Switzerland
Manufactured with meticulous attention to detail, every MS model reflects Swiss engineering standards for mechanical integrity and print consistency. - Automated Pad Cleaning and Ink Viscosity Management
Integrated options like programmable automatic pad cleaning and the VISCOMATIC™ ink viscosity control system ensure cleaner prints and reduced maintenance downtime. - Touchscreen Operator Interface
A user-friendly touchscreen with graphic icon navigation allows quick access to cycle control, job setup, diagnostics, and parameter storage. - Laser-Cut & Welded Steel Construction
Built on a rigid, vibration-free frame, each MS unit features a laser-cut, welded chassis that guarantees long-term structural stability and minimal wear. - Automation Ready with RS-232 Integration
All MS-Series machines come standard with an RS-232 automation interface, allowing seamless integration into conveyor lines, robots, and rotary systems. - World-Class Components Throughout
Outfitted with high-end parts from brands like Festo, SMC, and Weidmüller, the MS-Series is built to run reliably in demanding industrial environments.
Let’s Build Your Perfect Pad Printing System
Whether you need a compact stand-alone press or a fully automated production cell, the MS-Series offers the flexibility to scale with your business.
📞 Call Deco Tech Group today at (714) 639-DECO to talk with our experts and discover how the MS platform can elevate your printing operation.
SPECIFICATIONS
| Technical Data | MS-300 |
|---|---|
| Number of Colors: | 1 – 4 |
| Printing Capacity: | 1,300 cycles/h (850 with cleaning) |
| Drive – Pad Stroke: | Pneumatic |
| Printing Force: | 1,100 N |
| Air Supply: | 5 – 6 bar (87 psi) |
| Air Consumption: | 125 L/min |
| Control System: | Digital Interface |
| Power Connection: | 110 – 240V, 50/60 Hz |
| Control Voltage: | 24 VDC |
| Weight (Without Base): | Approx. 109 kg |
| Plate Size (Max): | 300 × 300 × 10/0.5 mm |
| Plate Size (Open Inkwell): | Available on request |
| Plate Size (Transverse Doctoring Unit): | 100 × 500 mm (on request) |
| Pad Stroke – Travel Distance: | 150 mm |
| Pad Projection Max: | 98 mm |
| Pad Cleaning: | Optional: 138 mm wide |
| Program Memory: | Optional: 100 jobs |
| Thinning System: | Optional: 1–4 connections |
| Ink Cup Sizes (Diameter): 4 × 56 mm (2.20") 4 × 70 mm (2.75") 3 × 86 mm (3.38") 2 × 120 mm (4.72") 2 × 140 mm (5.51") |
Print Sizes (Diameter): 46 mm (1.81") 60 mm (2.36") 76 mm (2.99") 110 mm (4.33") 130 mm (5.11") |
| Ink Cup Oval (Optional): | 237 × 68 mm |
