Modul 110 Pad Printing Machine

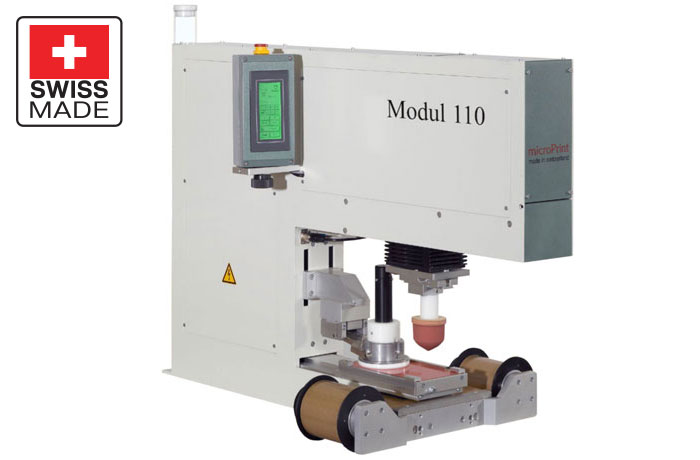

Swiss Precision Pad Printing: microPrint MODUL 110
The microPrint MODUL 110 is a high-speed, linear-motor driven pad printing module engineered for modern manufacturing environments. As the most compact unit in the MODUL Series, the MODUL 110 is designed to handle everything from standalone operations to fully automated, multi-head pad printing lines.
This precision-built machine is proudly Swiss-made and is ideal for applications in medical device printing, cosmetic packaging, automotive components, electronic housings, sports equipment, industrial parts, consumer goods, and promotional items. Whether you're printing logos on syringes, markings on molded housings, or detailed graphics on golf balls, the MODUL 110 delivers unmatched flexibility and performance.
Each MODUL 110 pad printing head can be outfitted with either 56, 70mm or 86mm (2.2”, 2.75" or 3.38") diameter magnetic ink cups and like all the other MODUL series machines in the line-up, the MODUL 110 is fully programmable from the touch screen, and you can program the machine to pick up various artworks on the cliché at different locations on the cliché. The MODUL Series of pad printing machines are fast (linear motor driven technology), flexible, one-color pad printing modules.The pad and cliché positions (X/Y/Z) can be easily programmed via the user-friendly touchscreen and the print sequence can be easily defined with simple-to-learn graphic icons. Furthermore, you can pick up the ink from the cliché multiple times to allow for more opaque prints in each cycle – this is commonly used when printing large white background images on a dark substrate. You can also pick up multiple images from the same cliché and print those images in multiple/ programmable locations.
Built for Automation, Powered by Precision
The MODUL 110 can be used as a standalone pad printer or configured into advanced multi-color automation cells, operated via a single PLC and touchscreen interface. All job data is centrally managed, and settings from one head can be copied to others — ideal for scalable, high-volume production environments.
- Ink Cup Options: 56mm, 70mm, or 86mm magnetic ink cups
- User-Friendly Programming: Touchscreen control of X/Y/Z movement, stroke parameters, and image pickup points
- Multi-image Capability: Print multiple designs from one cliché or double-pickup for high-opacity white or large coverage areas
- Speeds up to 1,800 cycles/hour depending on configuration
This level of control and automation makes the MODUL 110 an ideal pad printing solution for industries that require tight tolerances, short changeover times, and consistent output.
Key Features:
- Fast Job changeovers with all parameters stored in the PLC
- Lightning-fast production speeds with linear and servo motor controls<
- Crafted with precision and care in Switzerland, ensuring the highest quality of workmanship
- Automatic Pad Cleaning & Ink Viscosity controls for easy maintenance and improved performance
- Intuitive touchscreen interface for easy navigation and control
- Laser cut & welded construction for superior strength and durability
- Interfaced into an automated system quickly with built in RS-232 port
- World class components to ensure maximum reliability and performance
Modular Intelligence with Enterprise Connectivity
Each MODUL 110 print head includes advanced connectivity options, including:
- Ethernet & RS-232 ports for networked control
- Optional EtherCAT interface for integration into modern smart factories
- Remote diagnostics and software updates via PC or server
- Optional barcode scanner for rapid job selection and reduced operator error
Whether you're integrating this unit into a robotic cell for syringes, setting up a multi-head carousel for cosmetic closures, or building a custom fixture to print on round caps, the MODUL 110 gives you complete control from setup to production.
Automation-Ready Hardware, Built to Last
All MODUL Series machines are laser-cut, precision-welded, and equipped with dual accessory ports for direct integration of automation components:
- Vacuum part holding systems
- Sensors for part presence
- Rotating devices for multi-sided printing
- Shuttle systems and clamping options for high-speed indexing
This flexibility allows automation integrators, OEMs, and end-users to build highly customized solutions around one consistent and proven pad printing platform.
Watch the microPrint Automation Components in Action!
Applications Across Every Industry
The MODUL 110 is trusted by manufacturers worldwide in the following sectors:
- Medical & pharmaceutical: Syringes, inhalers, catheters, labware
- Cosmetics: Compact lids, mascara tubes, cream jars
- Automotive: Control buttons, trim components, gear knobs
- Industrial: Power tools, dials, housings, measuring instruments
- Sports equipment: Golf balls, grips, logos on balls or gear
- Consumer goods: Appliances, packaging, branding elements
- Promotional products: Pens, USB sticks, gadgets
Looking to integrate precision pad printing into your production line?
Contact Deco Tech today to explore how the microPrint MODUL 110 can deliver fast, scalable, and highly repeatable print results across your product range.
📞 Call us at (714) 639-DECO
📧 Email: sales@decotechgroup.com
MODUL 110 Technical Specifications
Engineered for precision and speed, the microPrint MODUL 110 delivers robust pad printing capabilities in a compact, automation-ready package. Explore the technical details below.
Technical Data | MODUL-110 |
---|---|
Printing Capacity: | Up to 1,800/hr |
Drive: | Pneumatic & linear motor |
Printing Force: | 290 N Max |
Air Supply: | 5–6 bar (87 psi) |
Air Consumption: | 44 l/min |
Control System: | PLC Panasonic |
Main Voltage: | 110 – 240 V 50–60Hz |
Control Voltage: | 24 VDC |
Weight: | 63 kg (139 lbs) |
Plate Thickness: | 0.5mm or 10mm |
Max Plate Size: | 100 × 200 mm |
Max Ink Cup Diameter: | 86mm (3.38") |
Dimensions: | Request drawing |
Print Sizes (Diameter): |
56mm (1.96") 70mm (2.36") 86mm (2.99") |
Machine Type: Linear Motor Driven Pad Printing Module
Manufacturer: microPrint
Origin: Made in Switzerland
