RP 4.0 Motor Driven Universal Screen Printing Machine


The RP 4.0 is the latest evolution in our line of precision German-built medium-format universal screen printing machines, succeeding the RP 3.0 and the original SD 2.1 models. Designed for both flat objects (700 x 320mm) and round objects (300 x 320mm), the RP 4.0 offers enhanced performance and reliability.

Machine Type: Semi-Automatic Screen Printing Press
Manufacturer: RokuPrint
Origin: Made in Germany

Building upon the robust foundation of the RP 3.0, the new RP 4.0 introduces advanced brushless motor technology, providing even greater precision and reduced maintenance requirements. This upgrade ensures consistent, high-quality printing results across various applications. The RP 4.0 is perfectly suited for printing onto both flat and round industrial products. It can be outfitted with a vacuum table for screen printing onto flat plastic or paper sheets, or with a rotary attachment to screen print onto round or curved objects such as stainless steel coffee mugs, aluminum water bottles, wine bottles, beer growlers, oil filters, fuel filters, and more. The vertical screen lift design keeps the ink consistently in the print zone, minimizing downtime and ensuring trouble-free production. Quick-change squeegee and flood bar systems require no tools and can be remounted in the same precise location, thanks to the included positive stop mechanism.

ADVANTAGES

  • Latest brushless motor technology for optimal printing results and consistent quality
  • Universally usable for flat or rotary printing (depending on configuration)
  • Independent adjustment of print and flood speeds
  • Precise and low maintenance due to proprietary guide elements
  • Easy operation and quick setup of new programs via teach-in mode or direct entry
  • Short setup time with memory function (105 individual programs)
  • Adjustable screen off-contact distance in semi-automatic operation
  • Quick and easy cleaning
  • High printing performance and speed
  • Space-saving and portable due to compact design

NEW FUNCTIONS

  • Position display of X- and Z-axis
  • Visualization of all program parameters
  • Expanded memory (105 individual programs)
  • Quick position correction via direct value entry
  • Password-protected screen lock
  • Additional specialized functions

SPECIFICATIONS

Technical Data RP 4.0
Drive System: Controlled Brushless DC Motors
Control System: 7" LED Display Controller
Display & Color Resolution: 800 x 480 (WVGA
Print Speed: up to 1,800 pph
Print Head: Pneumatic
Printing size flat (L x W): 700 x 320mm (27.55" x 12.6")
Printing size round (D x H): 300 x 320mm (11.8" x 12.6")
Max Diameter for 360° Print Approx. 100mm (3.94")
Screen frame: Aluminum frames recommended, profile 25 x 25mm (0.75" square)
Max. screen size (L x W): 800 x 500mm (31.5" x 19.7")
Voltage: 100-240V 50/60Hz.
Weight: 80 kg (176 lbs.)
Dimensions: 1,000 x 700 x 1,000mm (39.4" x 27.6" x 39.4")

For more information or to request a quote, please contact our experts at (714) 639-DECO or email sales@decotechgroup.com


Note: The RP 4.0 builds upon the legacy of the RP 3.0 and SD 2.1 models, incorporating user feedback and technological advancements to deliver superior performance and versatility in industrial screen printing applications.

RokuPrint printing applications

Convex Screen Printing Application

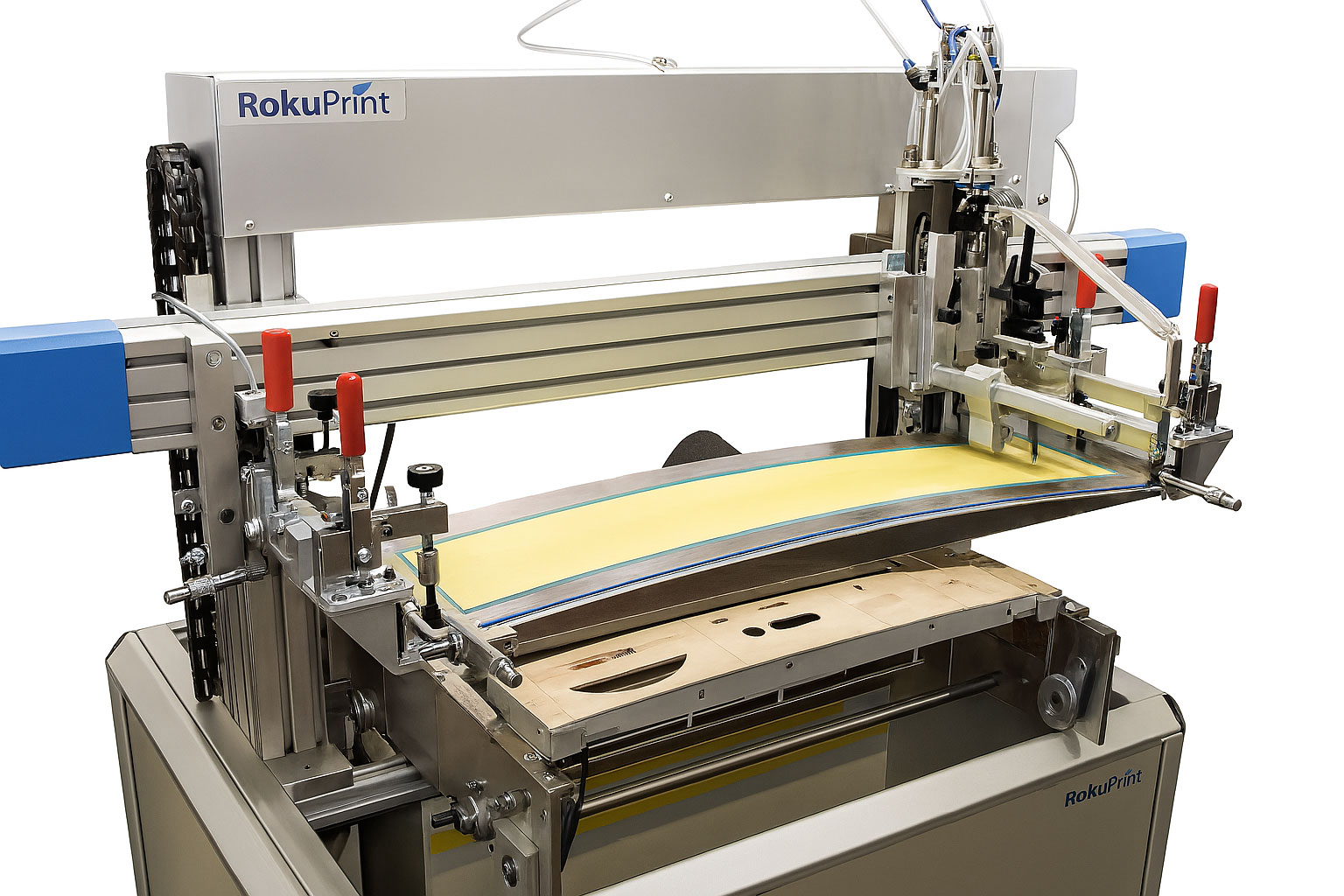

Dishwasher Appliance Panel
