X-POSE-200W Exposure Unit
X-POSÉ™ Exposure Unit – Engineered for Precision Pad Printing Plate Exposure
The Deco Tech X-POSÉ™ exposure unit is purpose-built to deliver consistent, high-quality results for pad printing plate exposure and etching. Designed with industrial precision in mind, this unit combines user-friendly operation with advanced technology to streamline the photopolymer plate-making process. From sharp image detail to efficient vacuum sealing, every feature is engineered for optimal exposure control and repeatability.
Key Features of the X-POSÉ™ Exposure Unit
- On/Off Power Switch
Simple and reliable operation with a clearly marked main power control. - Adjustable Exposure Timer with LCD Display
Precisely set and monitor exposure durations for consistent plate quality. - Integrated Vacuum Pressure Gauge
Real-time vacuum level monitoring ensures optimal contact between film and plate. - Automatic Vacuum Release
Vacuum is automatically vented at the end of each cycle to streamline workflow. - Low-Profile, Powder-Coated Steel Enclosure
Durable, compact construction resists wear and solvent exposure in production environments. - Built-In UV Safety Interlock
A safety switch disables UV light if the lid is lifted during operation, protecting the operator and preventing exposure faults.
Simple Operation – How to Use the X-POSÉ™ Exposure Unit
Operating the X-POSÉ™ is quick and straightforward, making it ideal for both novice and experienced users:
- Position the Materials
Place your cliché plate and film positive securely inside the vacuum blanket cover. - Seal the Lid
Close the top cover and activate the vacuum pump to ensure tight contact between the film and plate. - Set the Timer
Use the digital control panel to input the desired exposure time (in seconds) based on your plate material and light sensitivity. - Start the Exposure Cycle
Press the start button. The unit will automatically expose the plate and release the vacuum once the cycle completes.
Precision Exposure with Integrated Vacuum System
The X-POSÉ™ exposure unit features a built-in vacuum pump that efficiently removes air from the exposure chamber, creating tight, uniform contact between the film positive and the pad printing plate. Once the target vacuum level is reached, the UV exposure cycle starts automatically and runs for the preset duration. This ensures sharp, consistent image transfer every time. The unit accommodates a single cliché up to 300 × 550 mm, or multiple smaller printing plates in one cycle—making it perfect for both high-volume and short-run production environments.
X-POSE-200W Pad Printing Plate Exposure Unit – Technical Specifications
Below are the detailed specifications for the X-POSE-200W, a compact and efficient UV exposure unit ideal for photopolymer pad printing plates.
| Technical Data | X-POSE-200W |
|---|---|
| Table Dimensions: | 440 × 650 mm (17.3" × 25.6") |
| Total UV Power: | 200 Watts |
| Unit Dimensions (L × W × H): | 800 × 640 × 250 mm (31.5" × 25.2" × 9.8") |
| Weight: | 71.7 lbs (32.5 kg) |
| Power Supply: | 110V–120V, 50Hz |
| Timer: | Digital |
| Max. Cliché Size: | 300 × 500 mm (11.8" × 19.7") |

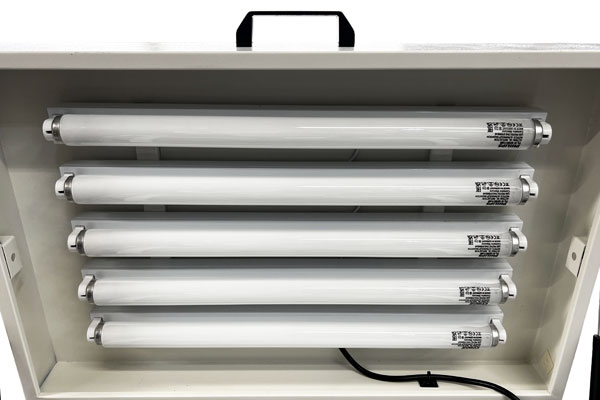

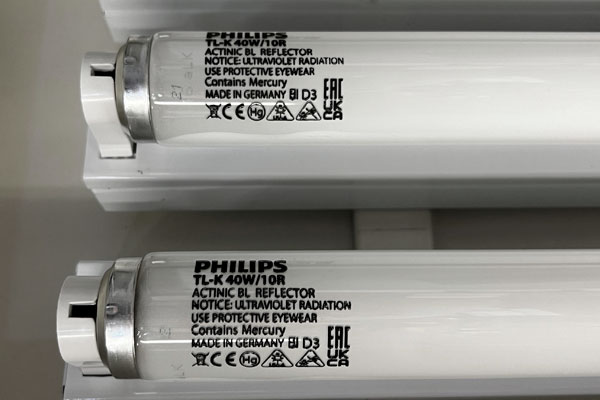

| Lamp Type: | 5 × 40W High-Powered UV Fluorescent Tubes |
Exposure unit for pad printing plates up to 300 x 500mm
Machine Type: X-POSÉ™ Exposure Unit
Manufacturer: Deco Tech
Origin: Built in China with World-Class Components
